Describes large depth countersink issue found during sheet metal design analysis. More...

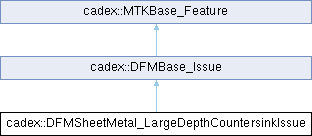

Inheritance diagram for cadex::DFMSheetMetal_LargeDepthCountersinkIssue:

Public Member Functions
	DFMSheetMetal_LargeDepthCountersinkIssue ()
	Constructor.

	DFMSheetMetal_LargeDepthCountersinkIssue (const ModelData::Shape &theCountersink)
	Constructor.

const ModelData::Shape &	Countersink () const

void	SetCountersink (const ModelData::Shape &theCountersink)

double	ExpectedMaxDepthToSheetThicknessRatio () const

void	SetExpectedMaxDepthToSheetThicknessRatio (double theRatio)

double	ExpectedMaxDepth () const

double	ActualDepth () const

void	SetActualDepth (double theDepth) const

double	ActualSheetThickness () const

void	SetActualSheetThickness (double theThickness)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a large depth countersink issue.

Static Public Member Functions inherited from cadex::DFMBase_Issue
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a DFM issue.

Additional Inherited Members
Public Types inherited from cadex::DFMBase_Issue
typedef cadex::internal::DFMBaseImpl_Issue	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::DFMBase_Issue
	DFMBase_Issue (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes large depth countersink issue found during sheet metal design analysis.

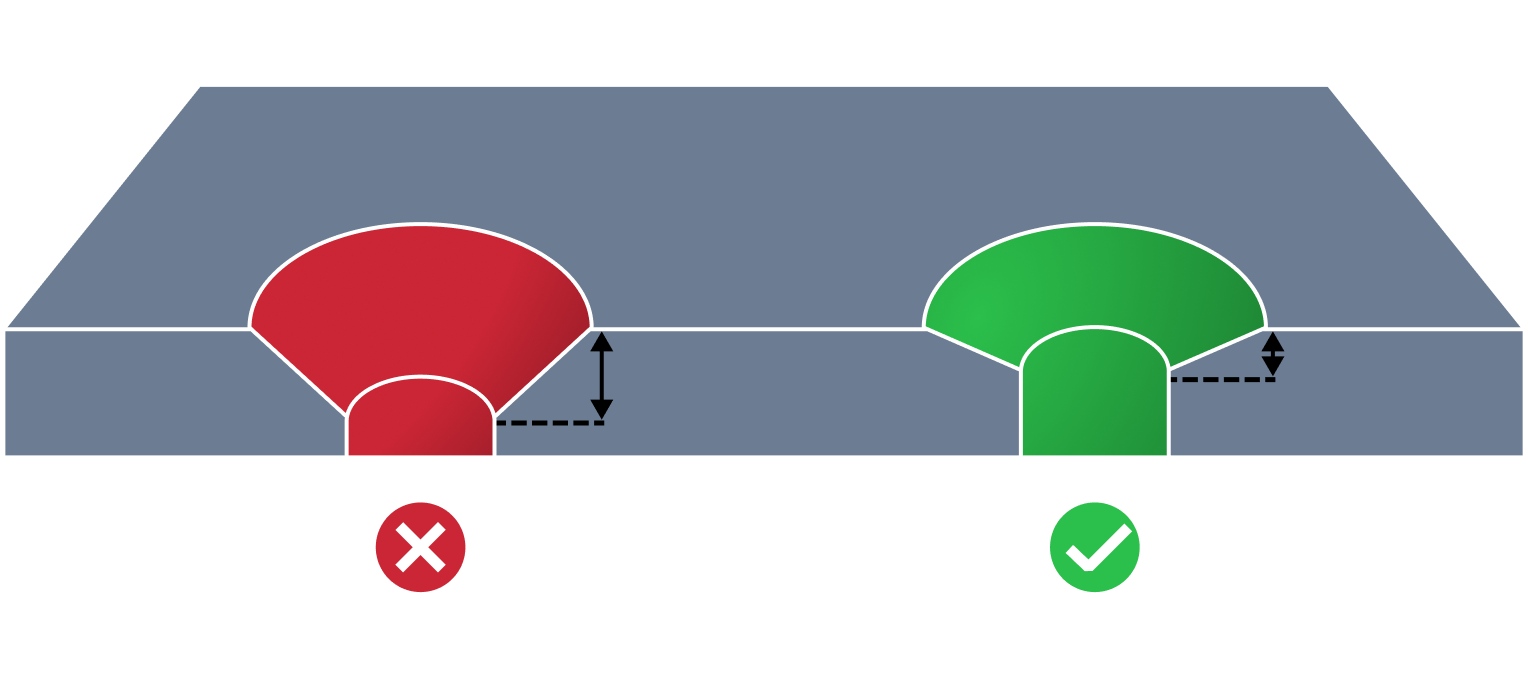

A large countersink depth issue can weaken the sheet metal, cause a bulge on the opposite face, and lead to poor fastener seating.

Contains countersink that fails the following condition:

\[ \large D_b \leq T \times Rt \]

\[ \begin{aligned} & \small D_b - \text{countersink depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected maximum countersink depth to sheet thickness ratio} \end{aligned} \]

See also: DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MaxCountersinkDepthToSheetThicknessRatio()

Examples: sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMSheetMetal_LargeDepthCountersinkIssue()

cadex::DFMSheetMetal_LargeDepthCountersinkIssue::DFMSheetMetal_LargeDepthCountersinkIssue ( const ModelData::Shape & theCountersink )

Constructor.

Creates a large depth countersink from SheetMetal_Countersink object.

Member Function Documentation

◆ ActualDepth()

double cadex::DFMSheetMetal_LargeDepthCountersinkIssue::ActualDepth ( ) const

Return actual countersink depth in mm .

See also: Countersink()

Examples: sheet_metal/dfm_analyzer/Program.cs.

◆ ActualSheetThickness()

double cadex::DFMSheetMetal_LargeDepthCountersinkIssue::ActualSheetThickness ( ) const

Returns the actual sheet thickness of analyzed part in mm .

See also: SetActualSheetThickness()

◆ Countersink()

const ModelData::Shape & cadex::DFMSheetMetal_LargeDepthCountersinkIssue::Countersink ( ) const

Returns the problematic countersink.

See also: SetCountersink()

◆ ExpectedMaxDepth()

double cadex::DFMSheetMetal_LargeDepthCountersinkIssue::ExpectedMaxDepth ( ) const

Return expected maximum countersink depth in mm .

\[ \large D_e = T \times Rt \]

\[ \begin{aligned} & \small D_e - \text{expected maximum countersink depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected maximum countersink depth to sheet thickness ratio} \end{aligned} \]

See also: ExpectedMaxDepthToSheetThicknessRatio(), ActualSheetThickness()

Examples: sheet_metal/dfm_analyzer/Program.cs.

◆ ExpectedMaxDepthToSheetThicknessRatio()

double cadex::DFMSheetMetal_LargeDepthCountersinkIssue::ExpectedMaxDepthToSheetThicknessRatio ( ) const

Returns the expected maximum countersink depth.

See also: SetExpectedMaxDepthToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.MaxCountersinkDepthToSheetThicknessRatio()

◆ SetActualDepth()

void cadex::DFMSheetMetal_LargeDepthCountersinkIssue::SetActualDepth ( double theDepth ) const

Sets the actual countersink depth in mm . theDepth should be greater than zero.

See also: ActualDepth()

◆ SetActualSheetThickness()

void cadex::DFMSheetMetal_LargeDepthCountersinkIssue::SetActualSheetThickness ( double theThickness )

Sets the actual sheet thickness in mm . theThickness should be greater than zero.

See also: ActualSheetThickness()

◆ SetCountersink()

void cadex::DFMSheetMetal_LargeDepthCountersinkIssue::SetCountersink ( const ModelData::Shape & theCountersink )

Sets the problematic countersink.

See also: Countersink()

◆ SetExpectedMaxDepthToSheetThicknessRatio()

void cadex::DFMSheetMetal_LargeDepthCountersinkIssue::SetExpectedMaxDepthToSheetThicknessRatio ( double theRatio )

Sets the expected maximum countersink depth. theRatio should be greater than zero.

See also: ExpectedMaxDepthToSheetThicknessRatio()
