cadex::Machining_Chamfer Class Reference

Describes a machining chamfer. More...

Inheritance diagram for cadex::Machining_Chamfer:

Public Types
typedef std::shared_ptr< internal::MachiningImpl_Chamfer >	ImplType
Public Types inherited from cadex::MTKBase_ShapeFeature
typedef cadex::internal::MTKBaseImpl_ShapeFeature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType

Public Member Functions
	Machining_Chamfer ()
	Constructor.
	Machining_Chamfer (double theLength)
	Constructor.
double	Length () const
	Returns the Chamfer Length in mm .
void	SetLength (double theLength)
	Sets the Chamfer Length in mm .
Public Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (const ModelData::Shape &theShape)
	Constructor.
const ModelData::Shape &	Shape () const
	Returns shape of the feature.
void	SetShape (const ModelData::Shape &theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.
	~MTKBase_Feature ()
	Destructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull () const
	Returns true if the object is nullified.
	operator bool () const
	Casts the object to the bool type.
template<typename T >
bool	IsOfType () const
ImplType *	Impl () const
template<typename T >
T *	Impl () const
	Reserved for internal use.
bool	operator== (const MTKBase_Feature &theObject) const
bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a machining Chamfer.
Static Public Member Functions inherited from cadex::MTKBase_ShapeFeature
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a shape feature.

Protected Member Functions
	Machining_Chamfer (ImplType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Additional Inherited Members
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes a machining chamfer.

A chamfer feature represents a beveled region created by removing material along one or more connected edges of the part.

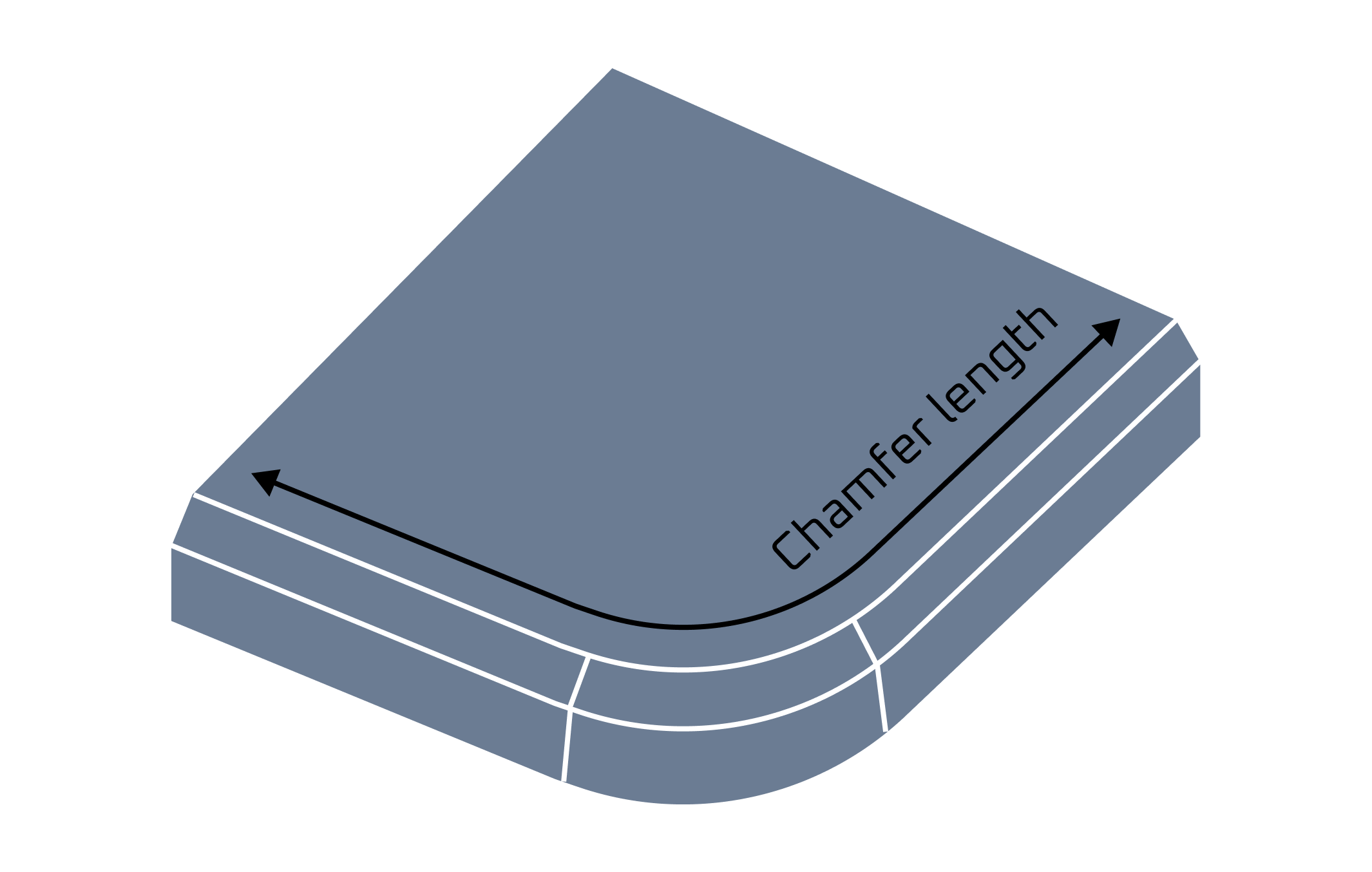

The feature may consist of one or more chamfer faces forming a continuous chamfer. The Length parameter specifies the total extent of the chamfer along the chamfered edge path.

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_Chamfer() [1/3]

cadex::Machining_Chamfer::Machining_Chamfer

(

)

Constructor.

Machining_Chamfer() [2/3]

cadex::Machining_Chamfer::Machining_Chamfer

(

double

theLength

)

Constructor.

Creates the machining Chamfer from the Length and radius.

Machining_Chamfer() [3/3]

cadex::Machining_Chamfer::Machining_Chamfer ( ImplType theImpl )

explicitprotected

Reserved for internal use.

Constructor.

For internal use.

Member Function Documentation

CompareType()

bool cadex::Machining_Chamfer::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a machining Chamfer.

Examples

machining/feature_recognizer/Program.cs.

Length()

double cadex::Machining_Chamfer::Length

(

)

const

Returns the Chamfer Length in mm .

See also

SetLength()

Examples

machining/feature_recognizer/Program.cs.

SetLength()

void cadex::Machining_Chamfer::SetLength

(

double

theLength

)

Sets the Chamfer Length in mm .

The value must be greater than zero.

See also

Length()
