cadex::Machining_FeatureRecognizerParameters Class Reference

Defines parameters used by Machining_FeatureRecognizer. More...

Public Types
typedef cadex::internal::MachiningImpl_FeatureRecognizerParameters	ImplType

Public Member Functions
	Machining_FeatureRecognizerParameters ()
	Constructor.
double	ProfileRadiusThreshold () const
	Returns profile radius threshold in mm.
void	SetProfileRadiusThreshold (double theProfileRadiusThreshold)
	Sets profile radius threshold in mm.
double	FilletRadiusThreshold () const
	Returns fillet radius threshold in mm.
void	SetFilletRadiusThreshold (double theFilletRadiusThreshold)
	Sets fillet radius threshold in mm.
double	HoleRadiusThreshold () const
	Returns hole radius threshold in mm.
void	SetHoleRadiusThreshold (double theHoleRadThreshold)
	Sets hole radius threshold in mm.
double	PlanarAngleThreshold () const
	Returns planar angle threshold in radians.
void	SetPlanarAngleThreshold (double thePlanarAngleThreshold)
	Sets planar angle threshold in radians.
double	MaxHoleSpacedPartsDistanceToDiameterRatio () const
	Returns the maximum hole spaced parts distance to hole diameter ratio.
void	SetMaxHoleSpacedPartsDistanceToDiameterRatio (double theRatio)
	Sets maximum hole spaced parts distance to hole diameter ratio.
Machining_OperationType	Operation () const
	Returns machining operation type.
void	SetOperation (Machining_OperationType theOperation)
	Sets machining operation type.
bool	IsAxisDefined () const
	Returns true if axis is determined.
const Geom::Axis1d &	Axis () const
	Returns axis which will be used as turning axis (for Machining_OperationType::Machining_OT_LatheMilling) or z-axis (for Machining_OperationType::Machining_OT_Milling)
void	SetAxis (const Geom::Axis1d &theAxis)
	Sets axis.
double	MinPartialHoleMaterialPercent () const
	Returns min material percent for a partail hole.
void	SetMinPartialHoleMaterialPercent (double theNewMinPartialHoleMaterialPercent)
	Sets min material percent for partail hole recognition.
bool	IgnoreHolesOnTurningAxis () const
	Returns true if holes on the turning axis are ignored.
void	SetIgnoreHolesOnTurningAxis (bool theIgnoreHolesOnTurningAxis)
	Sets whether holes on the turning axis are ignored.
double	MaxGrooveDepth () const
	Returns a max depth of the groove to be recognized in mm .
void	SetMaxGrooveDepth (double theMaxGrooveDepth)
	Sets max depth of the groove to be recognized in mm .
double	MaxGrooveWidth () const
	Returns a max width of the groove to be recognized in mm .
void	SetMaxGrooveWidth (double theMaxGrooveWidth)
	Sets max width of the groove to be recognized in mm .
ImplType *	Impl () const

Detailed Description

Defines parameters used by Machining_FeatureRecognizer.

Contains parameters used by Machining Feature Recognizer (Machining_FeatureRecognizer) and allows to set parameters used to define different types of machining faces and holes.

Operation types

MTK supports operation types (defined by the Machining_OperationType enumeration) defined in the following table:

Milling operation	The process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. This may be done varying direction on one or several axes, cutter head speed, and pressure.

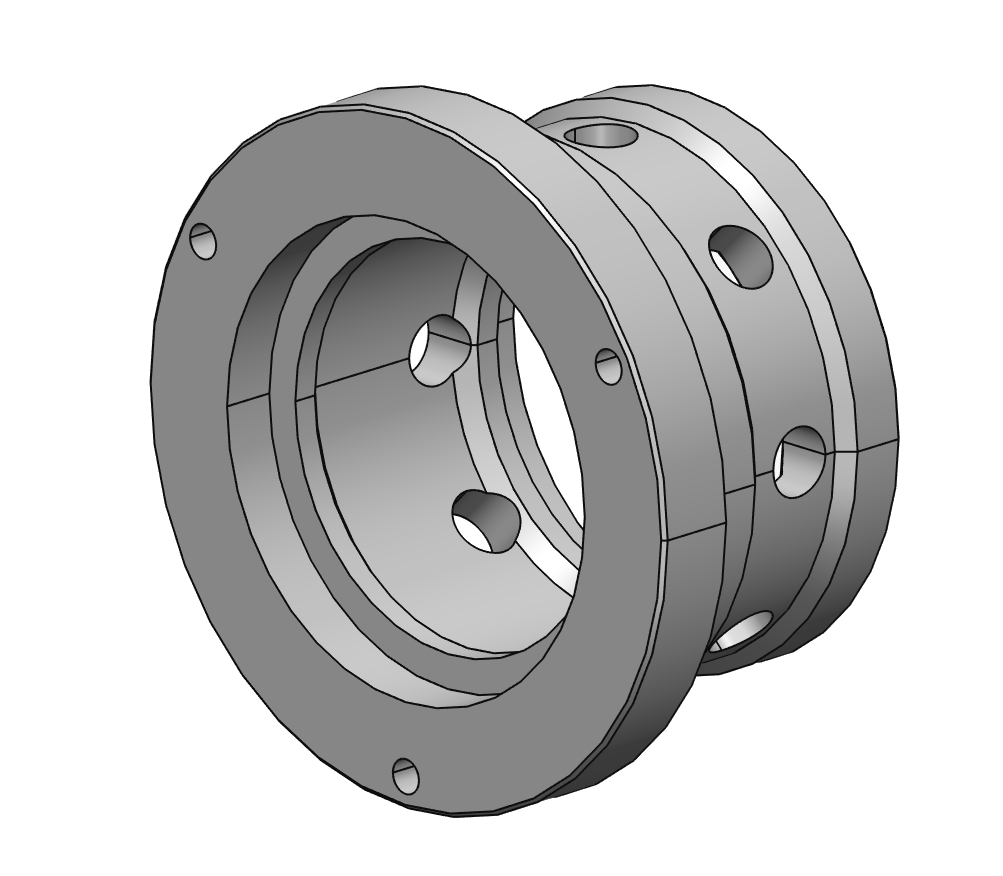

Lathe + Milling operation	Involve rotating a workpiece against a single-bladed cutting tool. Milling operation could be used for post processing.

Examples

machining/dfm_analyzer/Program.cs, and machining/feature_recognizer/Program.cs.

Constructor & Destructor Documentation

Machining_FeatureRecognizerParameters()

cadex::Machining_FeatureRecognizerParameters::Machining_FeatureRecognizerParameters

(

)

Constructor.

Sets default parameter values.

Member Function Documentation

Axis()

const Geom::Axis1d & cadex::Machining_FeatureRecognizerParameters::Axis

(

)

const

Returns axis which will be used as turning axis (for Machining_OperationType::Machining_OT_LatheMilling) or z-axis (for Machining_OperationType::Machining_OT_Milling)

Milling z-axis

Turning axis

See also

IsAxisDefined(), SetAxis()

FilletRadiusThreshold()

double cadex::Machining_FeatureRecognizerParameters::FilletRadiusThreshold

(

)

const

Returns fillet radius threshold in mm.

Used to distinguish fillets for concave faces.

The default value is 12.5.

See also

SetFilletRadiusThreshold()

HoleRadiusThreshold()

double cadex::Machining_FeatureRecognizerParameters::HoleRadiusThreshold

(

)

const

Returns hole radius threshold in mm.

Used to distinguish holes when analyzing closed faces.

The default value is 25.

See also

SetHoleRadiusThreshold()

IgnoreHolesOnTurningAxis()

bool cadex::Machining_FeatureRecognizerParameters::IgnoreHolesOnTurningAxis

(

)

const

Returns true if holes on the turning axis are ignored.

Thier faces are recognized as bore faces.

The default value is true.

See also

SetIgnoreHolesOnTurningAxis()

IsAxisDefined()

bool cadex::Machining_FeatureRecognizerParameters::IsAxisDefined

(

)

const

Returns true if axis is determined.

See also

Axis(), SetAxis()

MaxGrooveDepth()

double cadex::Machining_FeatureRecognizerParameters::MaxGrooveDepth

(

)

const

Returns a max depth of the groove to be recognized in mm .

The default value is 3 .

See also

SetMaxGrooveDepth()

MaxGrooveWidth()

double cadex::Machining_FeatureRecognizerParameters::MaxGrooveWidth

(

)

const

Returns a max width of the groove to be recognized in mm .

The default value is 5 .

See also

SetMaxGrooveWidth()

MaxHoleSpacedPartsDistanceToDiameterRatio()

double cadex::Machining_FeatureRecognizerParameters::MaxHoleSpacedPartsDistanceToDiameterRatio

(

)

const

Returns the maximum hole spaced parts distance to hole diameter ratio.

Hole spaced parts distance is a distance between fully separated hole shapes lying on the same axis and have same diameter. If the distance less or equal than ratio multiplied by diameter, then all separated hole shapes will be recognized as a single hole.

See also

SetMaxHoleSpacedPartsDistanceToDiameterRatio()

MinPartialHoleMaterialPercent()

double cadex::Machining_FeatureRecognizerParameters::MinPartialHoleMaterialPercent

(

)

const

Returns min material percent for a partail hole.

Used to discard partial holes with too low material percent.

The default value is 0.2 (20%).

See also

SetMinPartialHoleMaterialPercent()

Operation()

Machining_OperationType cadex::Machining_FeatureRecognizerParameters::Operation

(

)

const

Returns machining operation type.

See also

SetOperation()

PlanarAngleThreshold()

double cadex::Machining_FeatureRecognizerParameters::PlanarAngleThreshold

(

)

const

Returns planar angle threshold in radians.

Used to distinguish between flat face and side milled surfaces.

The default value is 0.78539816339 (45 deg).

See also

SetPlanarAngleThreshold()

ProfileRadiusThreshold()

double cadex::Machining_FeatureRecognizerParameters::ProfileRadiusThreshold

(

)

const

Returns profile radius threshold in mm.

Used to distinguish profile surfaces for convex faces.

The default value is 25.

See also

SetProfileRadiusThreshold()

SetAxis()

void cadex::Machining_FeatureRecognizerParameters::SetAxis

(

const Geom::Axis1d &

theAxis

)

Sets axis.

See also

IsAxisDefined(), Axis()

SetFilletRadiusThreshold()

void cadex::Machining_FeatureRecognizerParameters::SetFilletRadiusThreshold

(

double

theFilletRadiusThreshold

)

Sets fillet radius threshold in mm.

The value must be more or equal than zero.

See also

FilletRadiusThreshold()

SetHoleRadiusThreshold()

void cadex::Machining_FeatureRecognizerParameters::SetHoleRadiusThreshold

(

double

theHoleRadiusThreshold

)

Sets hole radius threshold in mm.

The value must be more or equal than zero.

See also

HoleRadiusThreshold()

SetIgnoreHolesOnTurningAxis()

void cadex::Machining_FeatureRecognizerParameters::SetIgnoreHolesOnTurningAxis

(

bool

theIgnoreHolesOnTurningAxis

)

Sets whether holes on the turning axis are ignored.

See also

IgnoreHolesOnTurningAxis()

SetMaxGrooveDepth()

void cadex::Machining_FeatureRecognizerParameters::SetMaxGrooveDepth

(

double

theMaxGrooveDepth

)

Sets max depth of the groove to be recognized in mm .

See also

MaxGrooveDepth()

SetMaxGrooveWidth()

void cadex::Machining_FeatureRecognizerParameters::SetMaxGrooveWidth

(

double

theMaxGrooveWidth

)

Sets max width of the groove to be recognized in mm .

See also

MaxGrooveWidth()

SetMaxHoleSpacedPartsDistanceToDiameterRatio()

void cadex::Machining_FeatureRecognizerParameters::SetMaxHoleSpacedPartsDistanceToDiameterRatio

(

double

theRatio

)

Sets maximum hole spaced parts distance to hole diameter ratio.

theRatio must be more or equal than zero.

See also

MaxHoleSpacedPartsDistanceToDiameterRatio()

SetMinPartialHoleMaterialPercent()

void cadex::Machining_FeatureRecognizerParameters::SetMinPartialHoleMaterialPercent

(

double

theNewMinPartialHoleMaterialPercent

)

Sets min material percent for partail hole recognition.

The value must be more or equal than zero and less or equal than one.

See also

MinPartialHoleMaterialPercent()

SetOperation()

void cadex::Machining_FeatureRecognizerParameters::SetOperation

(

Machining_OperationType

theOperation

)

Sets machining operation type.

See also

Operation()

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, machining/dfm_analyzer/main.cxx, and machining/feature_recognizer/main.cxx.

SetPlanarAngleThreshold()

void cadex::Machining_FeatureRecognizerParameters::SetPlanarAngleThreshold

(

double

thePlanarAngleThreshold

)

Sets planar angle threshold in radians.

The value must be more or equal than zero.

See also

PlanarAngleThreshold()

SetProfileRadiusThreshold()

void cadex::Machining_FeatureRecognizerParameters::SetProfileRadiusThreshold

(

double

theProfileRadiusThreshold

)

Sets profile radius threshold in mm.

The value must be more or equal than zero.

See also

PlanarAngleThreshold()
