cadex::Machining_SteppedHole Class Reference

Describes a stepped hole feature. More...

Inheritance diagram for cadex::Machining_SteppedHole:

Public Member Functions
	Machining_SteppedHole ()
	Constructor.
	Machining_SteppedHole (const MTKBase_FeatureList &theFeatureList)
	Constructor.
double	Depth () const
	Returns hole depth in mm .
Public Member Functions inherited from cadex::MTKBase_CompositeFeature
	MTKBase_CompositeFeature ()
	Constructor.
	MTKBase_CompositeFeature (const MTKBase_FeatureList &theFeatureList)
	Constructor.
void	AddFeature (const MTKBase_Feature &theFeature)
	Adds feature reference to feature references list.
void	AddFeatures (const MTKBase_FeatureList &theFeatureList)
	Adds feature references to feature references list.
const MTKBase_FeatureList &	FeatureList () const
	Returns the feature references list.
Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.
	~MTKBase_Feature ()
	Destructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull () const
	Returns true if the object is nullified.
	operator bool () const
	Casts the object to the bool type.
template<typename T >
bool	IsOfType () const
ImplType *	Impl () const
template<typename T >
T *	Impl () const
	Reserved for internal use.
bool	operator== (const MTKBase_Feature &theObject) const
bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a stepped machining hole.
Static Public Member Functions inherited from cadex::MTKBase_CompositeFeature
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a composite feature.

Additional Inherited Members
Public Types inherited from cadex::MTKBase_CompositeFeature
typedef cadex::internal::MTKBaseImpl_CompositeFeature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType
typedef std::shared_ptr< ImplType >	ImplPtrType
Protected Member Functions inherited from cadex::MTKBase_CompositeFeature
	MTKBase_CompositeFeature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.
Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes a stepped hole feature.

A stepped hole consists of multiple machining features, each derived from the MTKBase_Hole class. Features like Machining_Hole or Machining_Countersink can be added via AddFeature() or AddFeatures(), and the total depth of the stepped hole adjusts based on the added features.

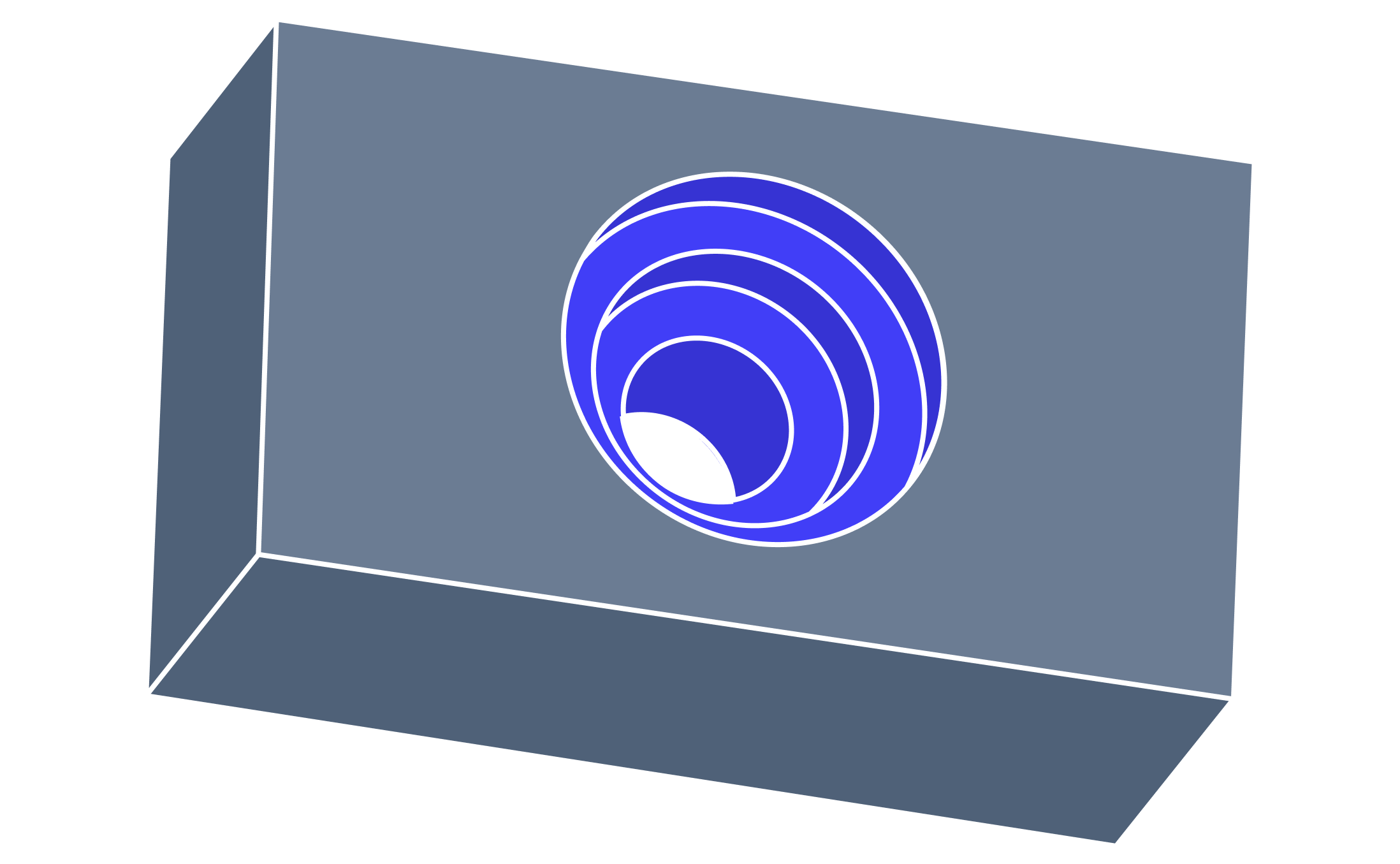

Stepped hole

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_SteppedHole() [1/2]

cadex::Machining_SteppedHole::Machining_SteppedHole

(

)

Constructor.

Machining_SteppedHole() [2/2]

cadex::Machining_SteppedHole::Machining_SteppedHole

(

const MTKBase_FeatureList &

theFeatureList

)

Constructor.

Creates a stepped hole from a MTKBase_FeatureList.

Member Function Documentation

CompareType()

bool cadex::Machining_SteppedHole::CompareType ( const MTKBase_Feature & theFeature )

static

Returnstrue if theFeature is a stepped machining hole.

Examples

machining/feature_recognizer/Program.cs.

Depth()

double cadex::Machining_SteppedHole::Depth

(

)

const

Returns hole depth in mm .

Examples

machining/feature_recognizer/Program.cs.
