Describes a machining thread feature. More...

Inheritance diagram for cadex::Machining_Thread:

Public Member Functions
	Machining_Thread (double theMajorDiameter, double theMinorDiameter, double thePitch, double theLength, const Geom::Axis1d &theAxis)
	Constructor.

double	MajorDiameter () const
	Returns the thread major diameter in mm.

double	MinorDiameter () const
	Returns the thread minor diameter in mm.

double	Pitch () const
	Returns the thread pitch in mm.

double	Length () const
	Returns the thread length in mm.

const Geom::Axis1d &	Axis () const
	Returns the thread axis.

Public Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (const ModelData::Shape &theShape)
	Constructor.

const ModelData::Shape &	Shape () const
	Returns shape of the feature.

void	SetShape (const ModelData::Shape &theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull () const
	Returns true if the object is nullified.

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a machining thread.

Static Public Member Functions inherited from cadex::MTKBase_ShapeFeature
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a shape feature.

Additional Inherited Members
Public Types inherited from cadex::MTKBase_ShapeFeature
typedef cadex::internal::MTKBaseImpl_ShapeFeature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes a machining thread feature.

An external thread is a helical ridge formed on the outer surface of a cylindrical feature. Common externally threaded parts include bolts, screws, studs, threaded rods, eye bolts, anchor bolts, pipe fittings and adapters. The helical thread is designed to mate with internal threaded components – such as tapped holes, nuts, and thread inserts – providing secure and reliable mechanical fastening.

Shape() method returns ModelData::Shell for this class.

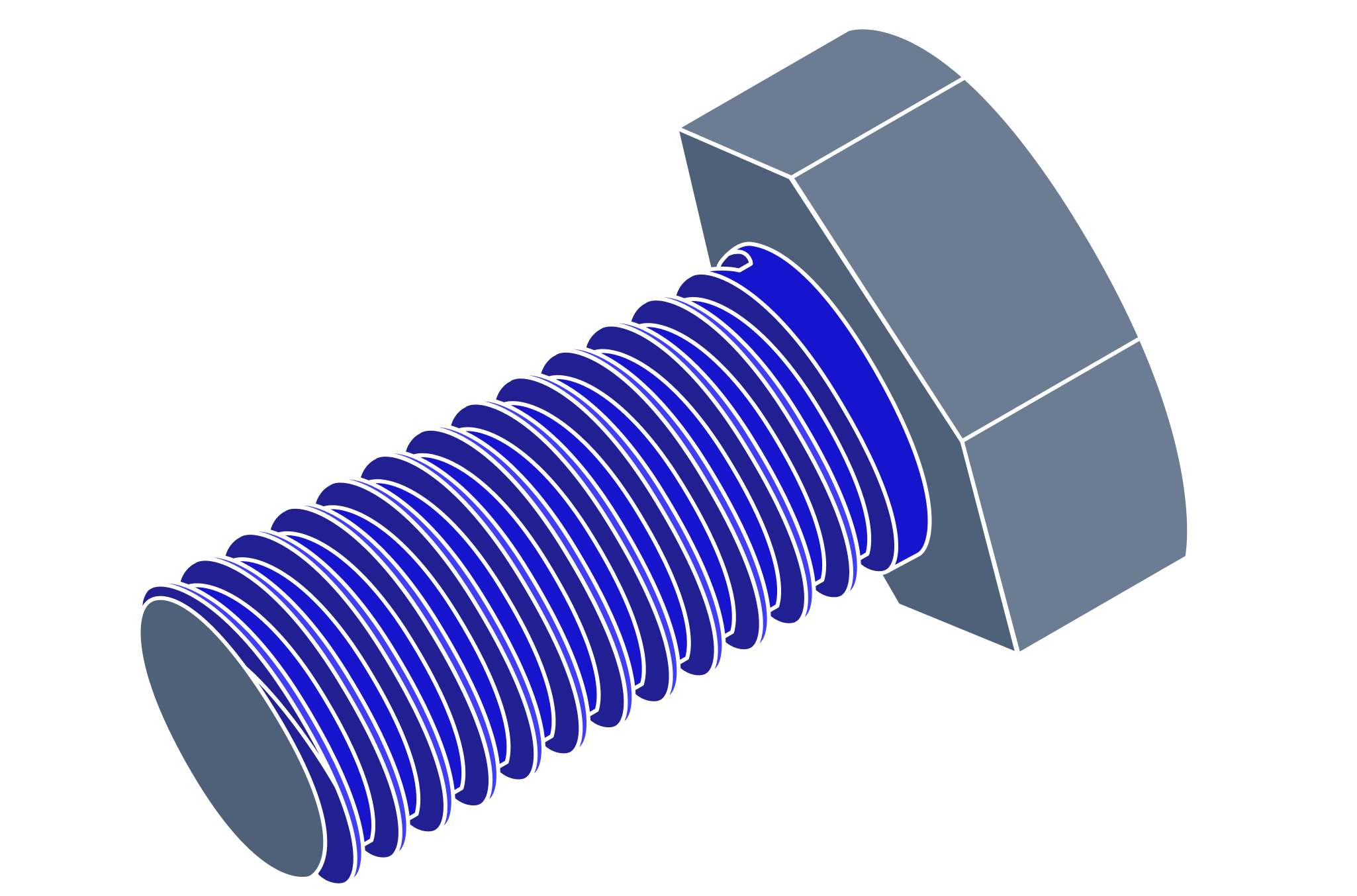

Thread

Thread has the following basic parameters: minor diameter in mm, major diameter in mm, length in mm, pitch in mm.

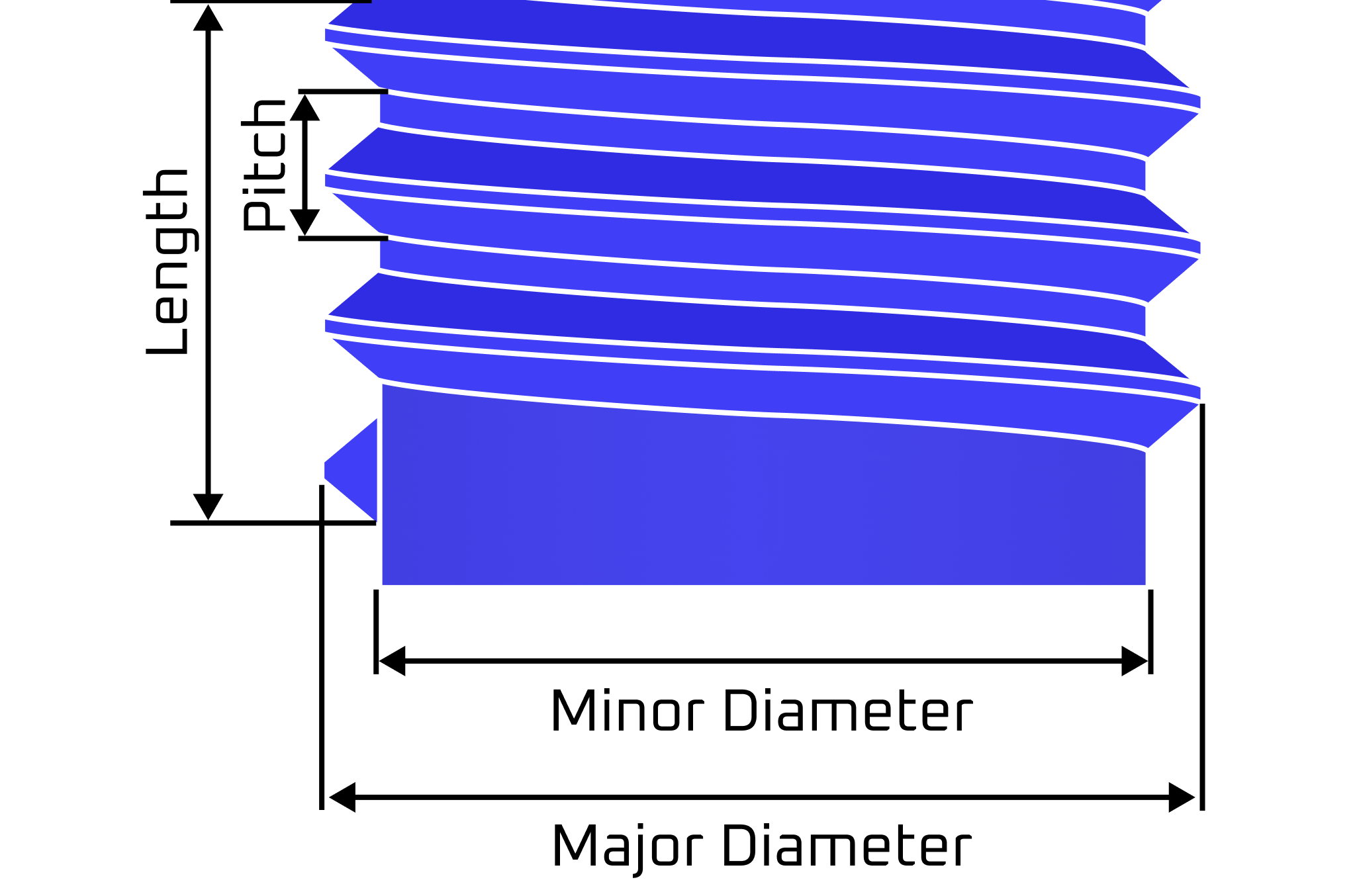

Thread parameters

Examples: machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ Machining_Thread()

cadex::Machining_Thread::Machining_Thread	(	double	theMajorDiameter,
		double	theMinorDiameter,
		double	thePitch,
		double	theLength,
		const Geom::Axis1d &	theAxis )

Constructor.

Creates a machining thread from the major diameter, minor diameter, pitch, length and the axis.

Member Function Documentation

◆ Axis()

const Geom::Axis1d & cadex::Machining_Thread::Axis ( ) const

Returns the thread axis.

Examples: machining/feature_recognizer/Program.cs.

◆ CompareType()

bool cadex::Machining_Thread::CompareType ( const MTKBase_Feature & theFeature )

static

Returns true if theFeature is a machining thread.

Examples: machining/feature_recognizer/Program.cs.

◆ Length()

double cadex::Machining_Thread::Length ( ) const

Returns the thread length in mm.

Examples: machining/feature_recognizer/Program.cs.

◆ MajorDiameter()

double cadex::Machining_Thread::MajorDiameter ( ) const

Returns the thread major diameter in mm.

Examples: machining/feature_recognizer/Program.cs.

◆ MinorDiameter()

double cadex::Machining_Thread::MinorDiameter ( ) const

Returns the thread minor diameter in mm.

Examples: machining/feature_recognizer/Program.cs.

◆ Pitch()

double cadex::Machining_Thread::Pitch ( ) const

Returns the thread pitch in mm.

Examples: machining/feature_recognizer/Program.cs.
