Describes a threaded hole. A threaded hole is a cylindrical hole with a helical thread (groove) machined on its inner surface. More...

Inheritance diagram for cadex::Machining_ThreadedHole:

Public Member Functions
	Machining_ThreadedHole ()
	Constructor.

	Machining_ThreadedHole (double theMinorRadius, double theMajorRadius, double theThreadLength, double thePitch, double theDepth, const Geom::Axis3d &theAxis, Machining_HoleType theType)
	Constructor.

double	MinorRadius () const

void	SetMinorRadius (double theMinorRadius)

double	MajorRadius () const

void	SetMajorRadius (double theMinorRadius)

double	ThreadLength () const

void	SetThreadLength (double theThreadLength)

double	Pitch () const

void	SetPitch (double thePitch)

Public Member Functions inherited from cadex::Machining_Hole
	Machining_Hole ()
	Constructor.

	Machining_Hole (double theRadius, double theDepth, Machining_HoleType theType)
	Constructor.

	Machining_Hole (double theRadius, double theDepth, const Geom::Axis3d &theAxis, Machining_HoleType theType)
	Constructor.

Machining_HoleType	Type () const

void	SetType (Machining_HoleType theType)

Public Member Functions inherited from cadex::MTKBase_Hole
	MTKBase_Hole ()
	Constructor.

	MTKBase_Hole (double theRadius, double theDepth)
	Constructor.

	MTKBase_Hole (double theRadius, double theDepth, const Geom::Axis3d &theAxis)
	Constructor.

double	Radius () const

void	SetRadius (double theRadius)

double	Depth () const

void	SetDepth (double theDepth)

bool	HasAxis () const

const Geom::Axis3d &	Axis () const

void	SetAxis (const Geom::Axis3d &theAxis)

Public Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (const ModelData::Shape &theShape)
	Constructor.

const ModelData::Shape &	Shape () const

void	SetShape (const ModelData::Shape &theShape)

Public Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature ()
	Constructor.

	~MTKBase_Feature ()
	Destructor.

void	Nullify ()

bool	IsNull () const

	operator bool () const
	Casts the object to the bool type.

template<typename T >
bool	IsOfType () const

ImplType *	Impl () const

template<typename T >
T *	Impl () const
	Reserved for internal use.

bool	operator== (const MTKBase_Feature &theObject) const

bool	operator!= (const MTKBase_Feature &theObject) const

Static Public Member Functions
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a machining threaded hole.

Static Public Member Functions inherited from cadex::Machining_Hole
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a machining hole.

Static Public Member Functions inherited from cadex::MTKBase_Hole
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returns true if theFeature is a hole.

Static Public Member Functions inherited from cadex::MTKBase_ShapeFeature
static bool	CompareType (const MTKBase_Feature &theFeature)
	Returnstrue if theFeature is a shape feature.

Additional Inherited Members
Public Types inherited from cadex::Machining_Hole
typedef std::shared_ptr< internal::MachiningImpl_Hole >	ImplType

Public Types inherited from cadex::MTKBase_Hole
typedef cadex::internal::MTKBaseImpl_Hole	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_ShapeFeature
typedef cadex::internal::MTKBaseImpl_ShapeFeature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Public Types inherited from cadex::MTKBase_Feature
typedef cadex::internal::MTKBaseImpl_Feature	ImplType

typedef std::shared_ptr< ImplType >	ImplPtrType

Protected Member Functions inherited from cadex::Machining_Hole
	Machining_Hole (ImplType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Hole
	MTKBase_Hole (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_ShapeFeature
	MTKBase_ShapeFeature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Member Functions inherited from cadex::MTKBase_Feature
	MTKBase_Feature (ImplPtrType theImpl)
	Reserved for internal use.

Protected Attributes inherited from cadex::MTKBase_Feature
ImplPtrType	myImpl

Detailed Description

Describes a threaded hole. A threaded hole is a cylindrical hole with a helical thread (groove) machined on its inner surface.

The helical thread is designed to fit with the corresponding external threaded components, such as screws, bolts, and studs, providing for secure fastening and reliable mechanical connections.

Shape() method returns ModelData::Shell for this class.

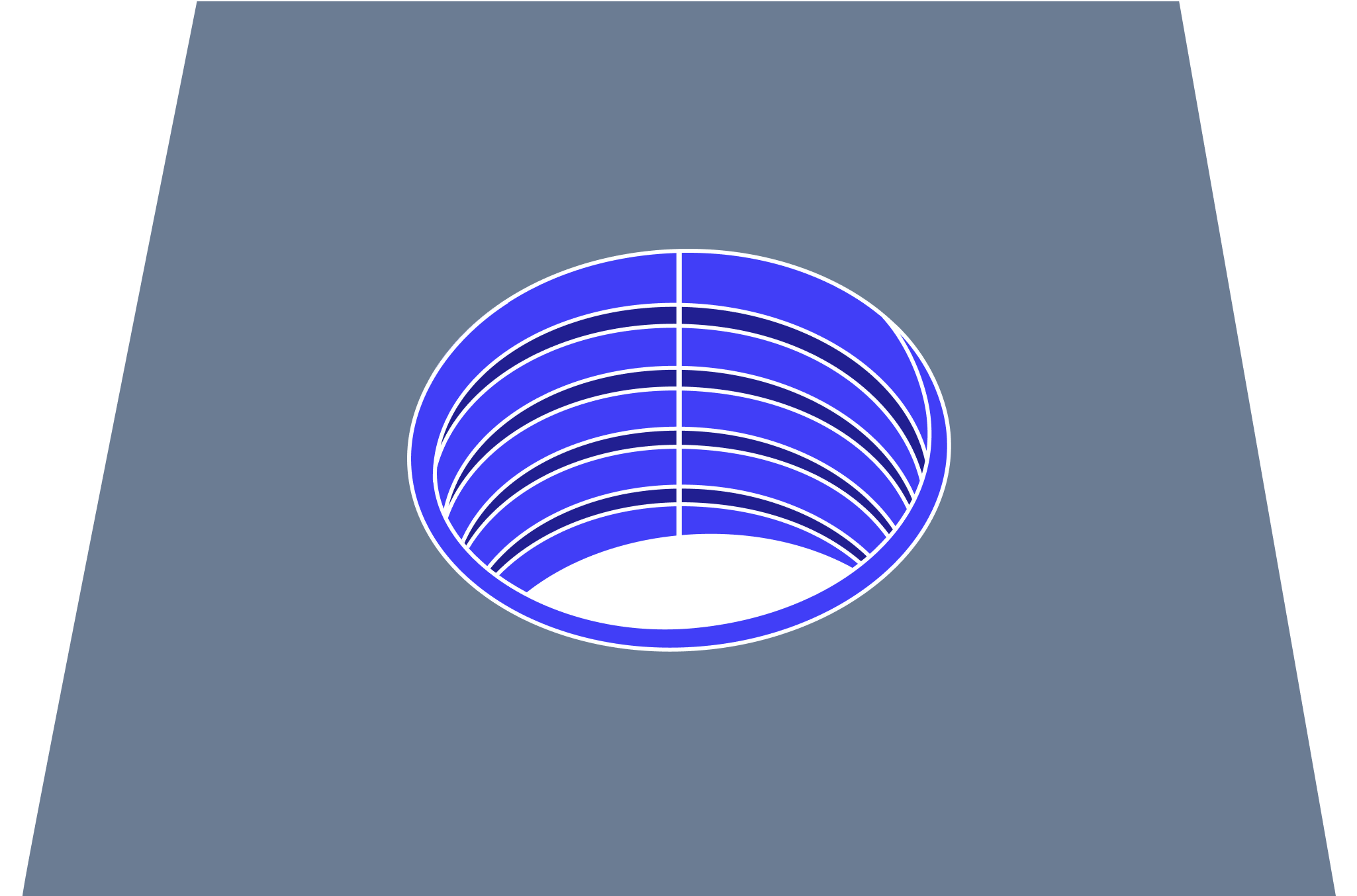

Threaded Hole

Threaded Hole has the following basic parameters: minor radius in mm, major radius in mm, thread length in mm, pitch in mm, depth in mm.

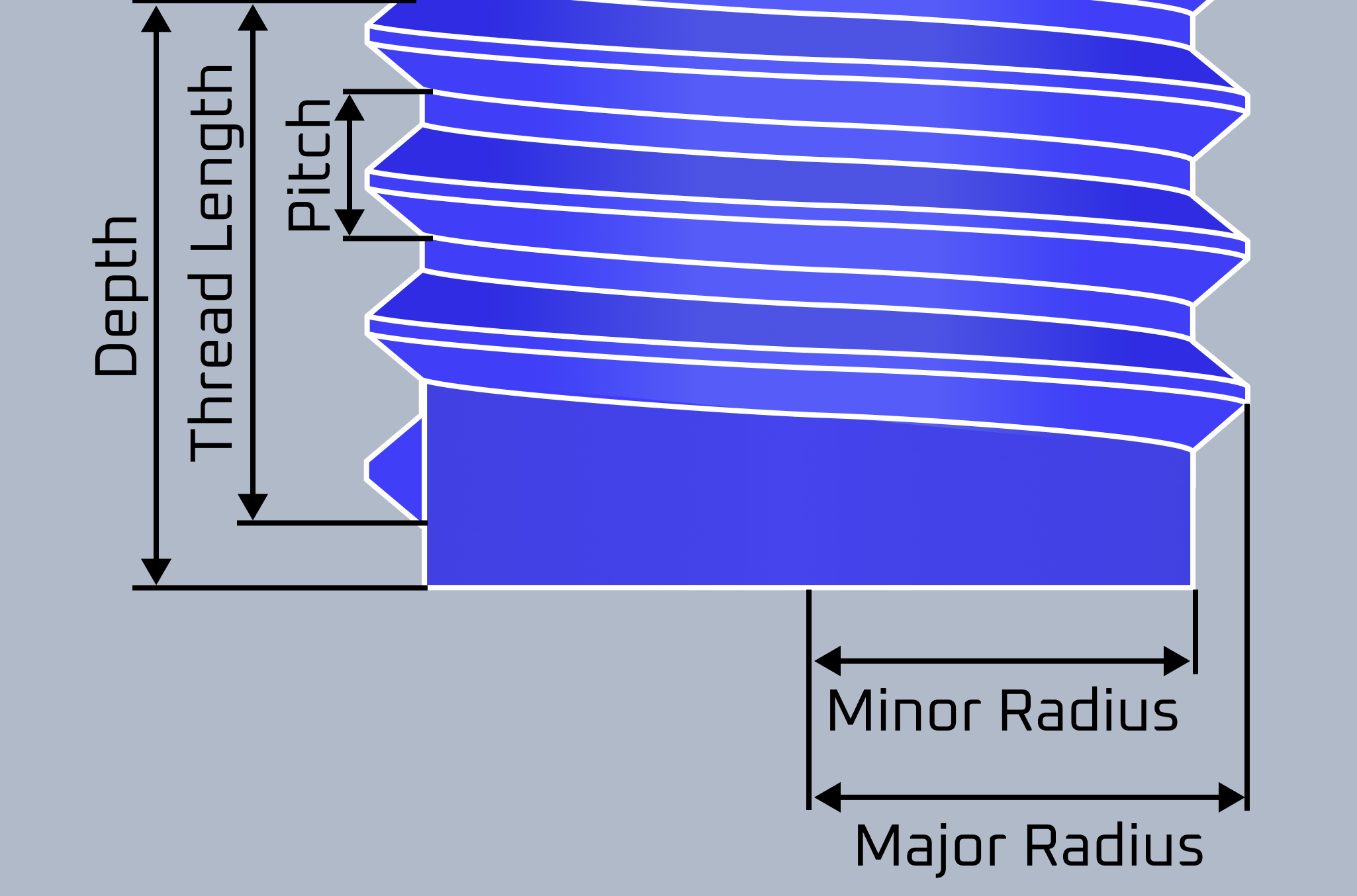

Threaded hole parameters

Threaded Hole types

MTK supports threaded hole types (see the Machining_HoleType enumeration):

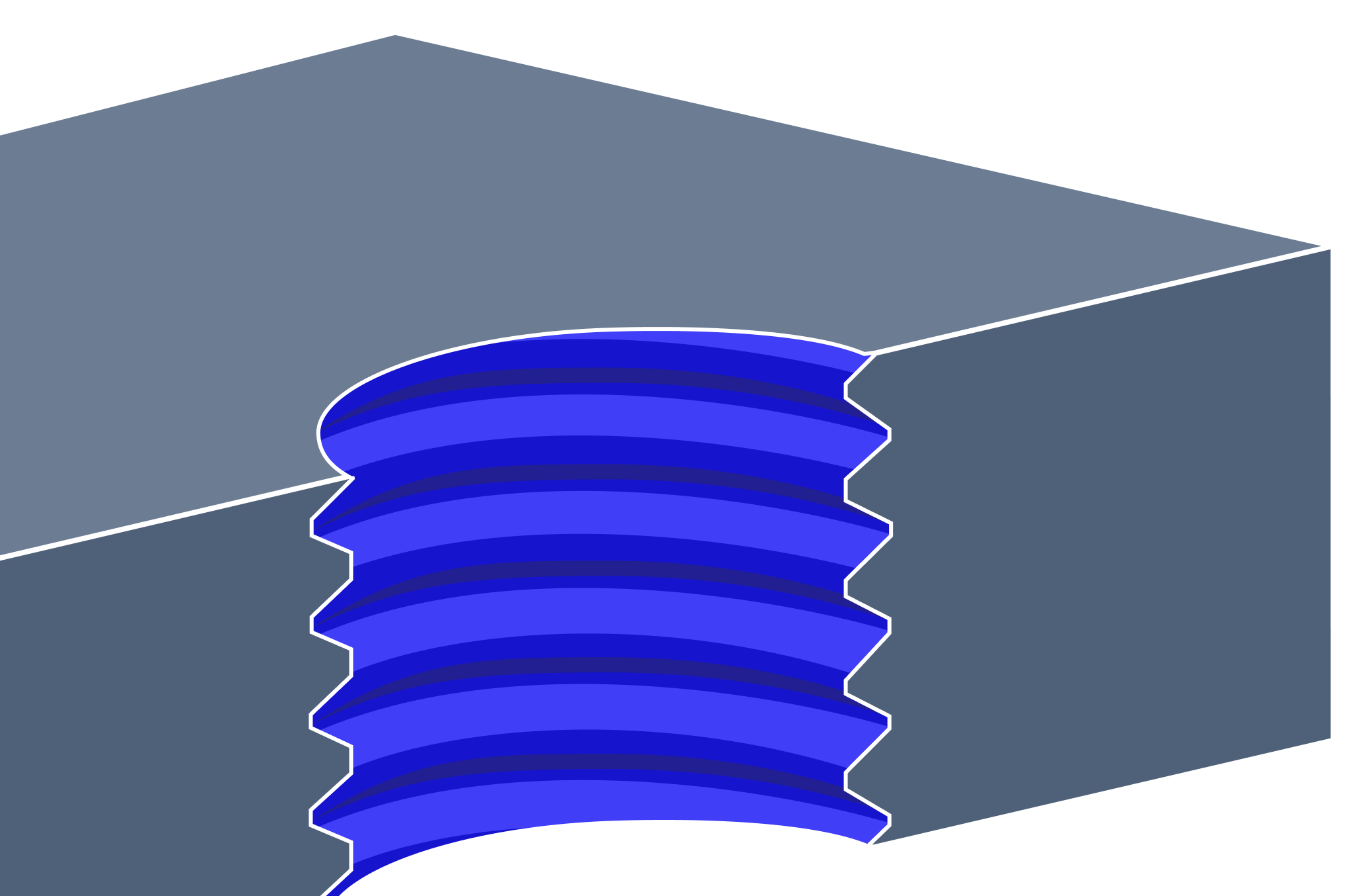

Threaded Through hole	A hole that goes through the entire workpiece.

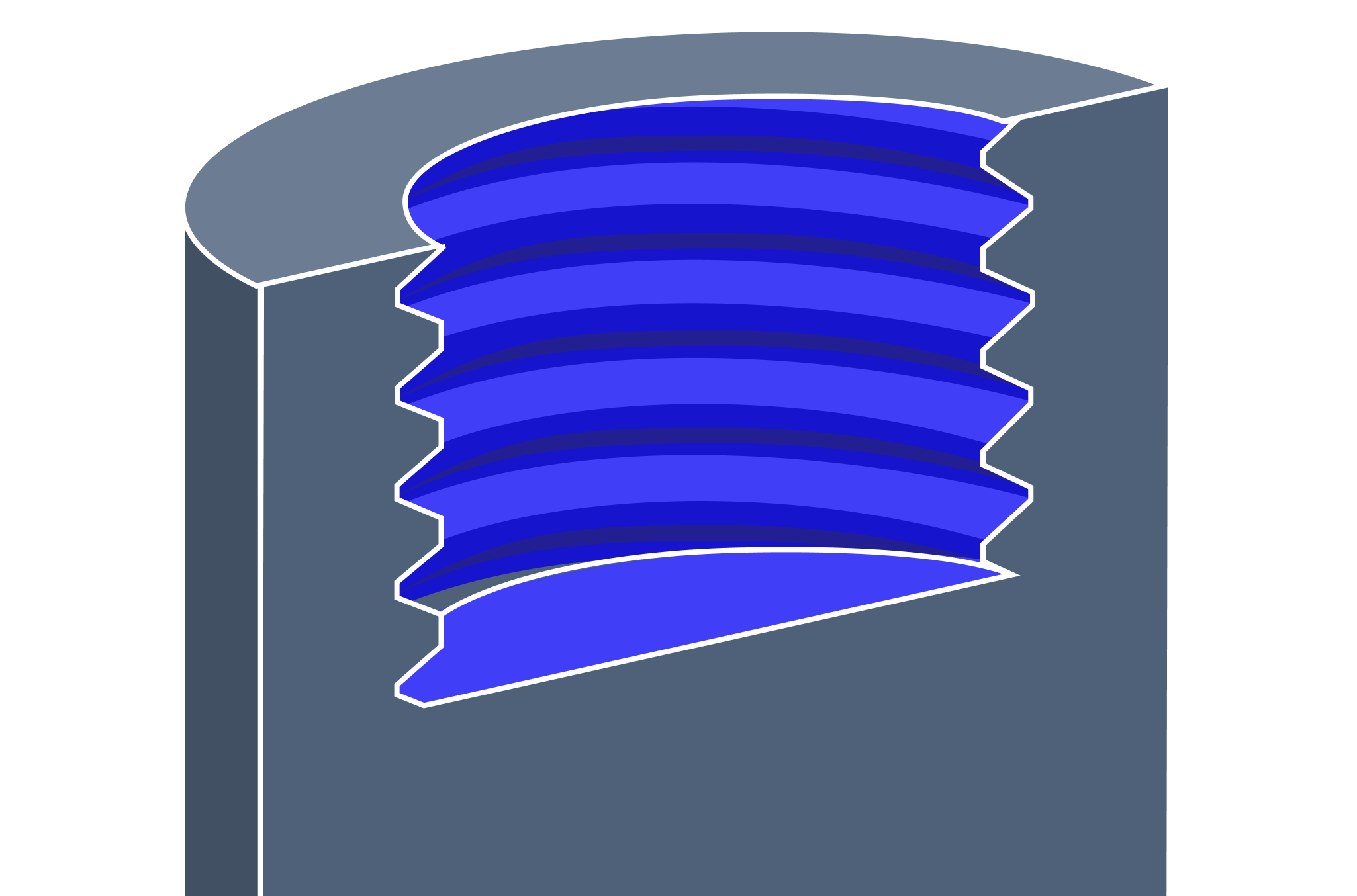

Threaded Flat Bottom hole	A hole machined to have a flat reflecting surface at the hole bottom

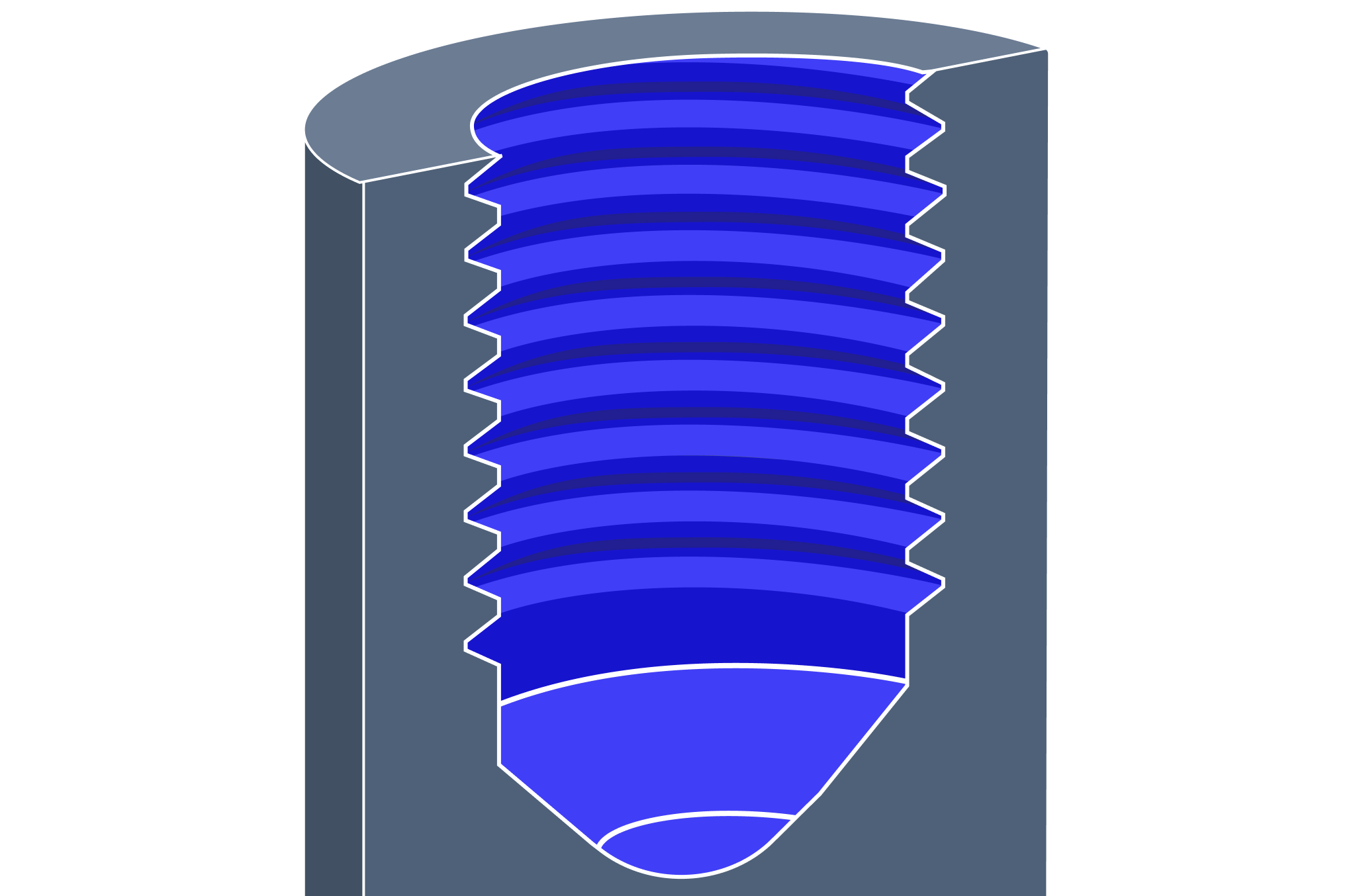

Threaded Blind hole	A hole does not pass through the entire workpiece

The hole type is returned by Type().

Examples: MTKConverter/Program.cs, MTKConverter/main.cxx, machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ Machining_ThreadedHole()

cadex::Machining_ThreadedHole::Machining_ThreadedHole	(	double	theMinorRadius,
		double	theMajorRadius,
		double	theThreadLength,
		double	thePitch,
		double	theDepth,
		const Geom::Axis3d &	theAxis,
		Machining_HoleType	theType )

Constructor.

Creates a machining threaded hole from the minor radius, major radius, thread length, pitch, depth, axis and machining hole type.

Member Function Documentation

◆ MajorRadius()

double cadex::Machining_ThreadedHole::MajorRadius ( ) const

Returns the threaded hole major radius in mm .

See also: SetMajorRadius()

Examples: MTKConverter/Program.cs, and machining/feature_recognizer/Program.cs.

◆ MinorRadius()

double cadex::Machining_ThreadedHole::MinorRadius ( ) const

Returns the threaded hole minor radius in mm .

See also: SetMinorRadius()

Examples: MTKConverter/Program.cs, and machining/feature_recognizer/Program.cs.

◆ Pitch()

double cadex::Machining_ThreadedHole::Pitch ( ) const

Returns the threaded hole pitch in mm .

See also: SetPitch()

Examples: MTKConverter/Program.cs, and machining/feature_recognizer/Program.cs.

◆ SetMajorRadius()

void cadex::Machining_ThreadedHole::SetMajorRadius ( double theMajorRadius )

Sets the threaded hole major radius in mm . The value must be greater than zero.

See also: MajorRadius()

◆ SetMinorRadius()

void cadex::Machining_ThreadedHole::SetMinorRadius ( double theMinorRadius )

Sets the threaded hole minor radius in mm . The value must be greater than zero.

See also: MinorRadius()

◆ SetPitch()

void cadex::Machining_ThreadedHole::SetPitch ( double thePitch )

Sets the threaded hole pitch in mm . The value must be greater than zero.

See also: Pitch()

◆ SetThreadLength()

void cadex::Machining_ThreadedHole::SetThreadLength ( double theThreadLength )

Sets the threaded hole thread length in mm . The value must be greater than zero.

See also: ThreadLength()

◆ ThreadLength()

double cadex::Machining_ThreadedHole::ThreadLength ( ) const

Returns the threaded hole thread length in mm . While Depth() returns the depth of the entire hole, ThreadLength() returns only the depth of the threaded part.

See also: SetThreadLength(); Depth()

Examples: MTKConverter/Program.cs, and machining/feature_recognizer/Program.cs.
