cadex.DFMMachining_NonSymmetricalAxialSlotIssue Class Reference

Describes asymmetric axial slot issue found during cnc machining turning design analysis. More...

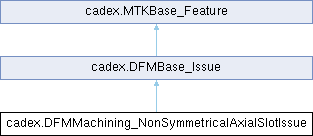

Inheritance diagram for cadex.DFMMachining_NonSymmetricalAxialSlotIssue:

Public Member Functions
	DFMMachining_NonSymmetricalAxialSlotIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_NonSymmetricalAxialSlotIssue ()
	Constructor.
	DFMMachining_NonSymmetricalAxialSlotIssue (cadex.Machining_Pocket theAxialSlot)
	Constructor.
cadex.Machining_Pocket	AxialSlot ()
void	SetAxialSlot (cadex.Machining_Pocket theAxialSlot)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a non-symmetrical axial slot issue.
static new cadex.DFMMachining_NonSymmetricalAxialSlotIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes asymmetric axial slot issue found during cnc machining turning design analysis.

An axial slot is a pocket on a turning face to which mechanical components can be attached to. When designing a part for cnc machining turning it's necessary to take into account possible problems of coupling with other parts. For instance, one of them is wrong part alignment which can be a result of asymmetrical about turn-axis width of the slots.

Contains a pocket that represents a non symmetrical axial slot.

See also

DFMMachining_Analyzer, Machining_Pocket

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_NonSymmetricalAxialSlotIssue()

cadex.DFMMachining_NonSymmetricalAxialSlotIssue.DFMMachining_NonSymmetricalAxialSlotIssue ( cadex.Machining_Pocket theAxialSlot )

inline

Constructor.

Creates a non-symmetrical axial slot issue from the Machining_Pocket object.

Member Function Documentation

AxialSlot()

cadex.Machining_Pocket cadex.DFMMachining_NonSymmetricalAxialSlotIssue.AxialSlot ( )

inline

Returns non-symmetrical axial slot.

See also

SetAxialSlot()

Dispose()

override void cadex.DFMMachining_NonSymmetricalAxialSlotIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

SetAxialSlot()

void cadex.DFMMachining_NonSymmetricalAxialSlotIssue.SetAxialSlot ( cadex.Machining_Pocket theAxialSlot )

inline

Sets non-symmetrical axial slot.

See also

AxialSlot()
