Describes a machining pocket. More...

Inheritance diagram for cadex.Machining_Pocket:

Public Member Functions
	Machining_Pocket (global::System.IntPtr cPtr, bool cMemoryOwn)

	Machining_Pocket ()
	Constructor.

	Machining_Pocket (double theWidth, double theLength, double theDepth, cadex.Machining_PocketType theType)
	Creates a machining Pocket from width, length, depth and type.

double	Width ()
	Returns the pocket width in mm.

void	SetWidth (double theWidth)
	Sets width for pocket in mm.

double	Length ()
	Returns the pocket length in mm .

void	SetLength (double theLength)
	Sets length for pocket in mm.

double	Depth ()
	Returns the pocket depth in mm .

void	SetDepth (double theDepth)
	Sets depth for pocket in mm.

bool	HasAxis ()
	Returns true if z-axis is determined for pocket.

cadex.Geom.Axis1d	Axis ()
	Returns z-axis of a pocket - the axis along which the depth is determined.

void	SetAxis (cadex.Geom.Axis1d theAxis)
	Sets z-axis for pocket.

cadex.Machining_PocketType	Type ()
	Returns the pocket type.

void	SetType (cadex.Machining_PocketType theType)
	Sets type for pocket.

double	MaxCutterRadius ()
	Returns the maximum cutter radius allowed by the pocket geometry.

void	SetMaxCutterRadius (double theRadius)
	Sets maximal cutter radius in mm.

Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.

cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.

void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining Pocket.

static new cadex.Machining_Pocket	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.

static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a machining pocket.

A pocket is a feature obtained by milling the material inside an arbitrarily closed boundary on a flat surface of a workpiece removed to a fixed depth.

Shape() method returns ModelData.Shell for this class.

Pocket

Pocket have the following basic parameters: width in mm, length in mm, depth in mm and axis.

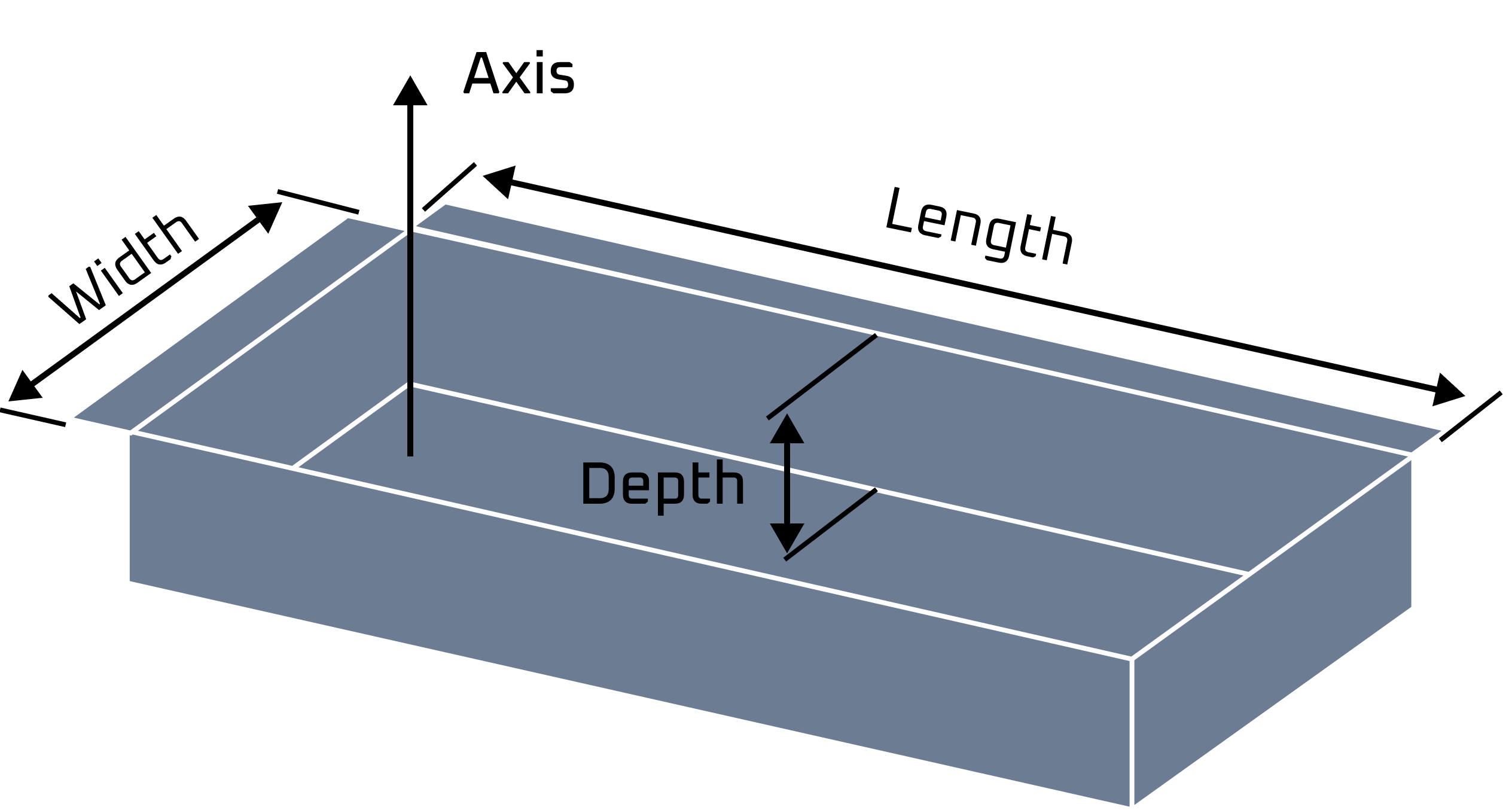

Pocket parameters

Examples: machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ Machining_Pocket() [1/2]

cadex.Machining_Pocket.Machining_Pocket ( )

inline

Constructor.

◆ Machining_Pocket() [2/2]

cadex.Machining_Pocket.Machining_Pocket	(	double	theWidth,
		double	theLength,
		double	theDepth,
		cadex.Machining_PocketType	theType )

inline

Creates a machining Pocket from width, length, depth and type.

Constructor.

Member Function Documentation

◆ Axis()

cadex.Geom.Axis1d cadex.Machining_Pocket.Axis ( )

inline

Returns z-axis of a pocket - the axis along which the depth is determined.

See also: HasAxis(), SetAxis()

Examples: machining/feature_recognizer/Program.cs.

◆ CompareType()

static new bool cadex.Machining_Pocket.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining Pocket.

Examples: machining/feature_recognizer/Program.cs.

◆ Depth()

double cadex.Machining_Pocket.Depth ( )

inline

Returns the pocket depth in mm .

See also: SetDepth()

Examples: machining/feature_recognizer/Program.cs.

◆ Dispose()

override void cadex.Machining_Pocket.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

◆ HasAxis()

bool cadex.Machining_Pocket.HasAxis ( )

inline

Returns true if z-axis is determined for pocket.

See also: Axis(), SetAxis()

◆ Length()

double cadex.Machining_Pocket.Length ( )

inline

Returns the pocket length in mm .

See also: SetLength()

Examples: machining/feature_recognizer/Program.cs.

◆ MaxCutterRadius()

double cadex.Machining_Pocket.MaxCutterRadius ( )

inline

Returns the maximum cutter radius allowed by the pocket geometry.

Considers internal fillets radii and minimum wall-to-wall clearance. Returns 0 if non-zero radius fits (e.g. a sharp interior corner parallel to the pocket axis.

See also: SetMaxCutterRadius() Returns the maximum cutter radius in mm .

Examples: machining/feature_recognizer/Program.cs.

◆ SetAxis()

void cadex.Machining_Pocket.SetAxis ( cadex.Geom.Axis1d theAxis )

inline

Sets z-axis for pocket.

See also: HasAxis(), Axis()

◆ SetDepth()

void cadex.Machining_Pocket.SetDepth ( double theDepth )

inline

Sets depth for pocket in mm.

The value must be more than zero.

See also: Depth()

◆ SetLength()

void cadex.Machining_Pocket.SetLength ( double theLength )

inline

Sets length for pocket in mm.

The value must be more than zero.

See also: Length()

◆ SetMaxCutterRadius()

void cadex.Machining_Pocket.SetMaxCutterRadius ( double theRadius )

inline

Sets maximal cutter radius in mm.

The value must not be less than zero.

See also: MaxCutterRadius()

◆ SetType()

void cadex.Machining_Pocket.SetType ( cadex.Machining_PocketType theType )

inline

Sets type for pocket.

See also: Type()

◆ SetWidth()

void cadex.Machining_Pocket.SetWidth ( double theWidth )

inline

Sets width for pocket in mm.

The value must be more than zero.

See also: Width()

◆ Type()

cadex.Machining_PocketType cadex.Machining_Pocket.Type ( )

inline

Returns the pocket type.

See also: SetType()

◆ Width()

double cadex.Machining_Pocket.Width ( )

inline

Returns the pocket width in mm.

See also: SetWidth()

Examples: machining/feature_recognizer/Program.cs.
