cadex.DFMMachining_UndercutIssue Class Reference

Describes recessed or hidden areas inaccessible to standard end mills. More...

Inheritance diagram for cadex.DFMMachining_UndercutIssue:

Public Member Functions
	DFMMachining_UndercutIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_UndercutIssue ()
	Constructor.
	DFMMachining_UndercutIssue (cadex.MTKBase_ShapeFeature theRelatedFeature)
	Constructor.
cadex.MTKBase_ShapeFeature	RelatedFeature ()
void	SetRelatedFeature (cadex.MTKBase_ShapeFeature theRelatedFeature)
cadex.ModelData.Shape	Shape ()
void	SetShape (cadex.ModelData.Shape theShape)
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM undercut issue.
static new cadex.DFMMachining_UndercutIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes recessed or hidden areas inaccessible to standard end mills.

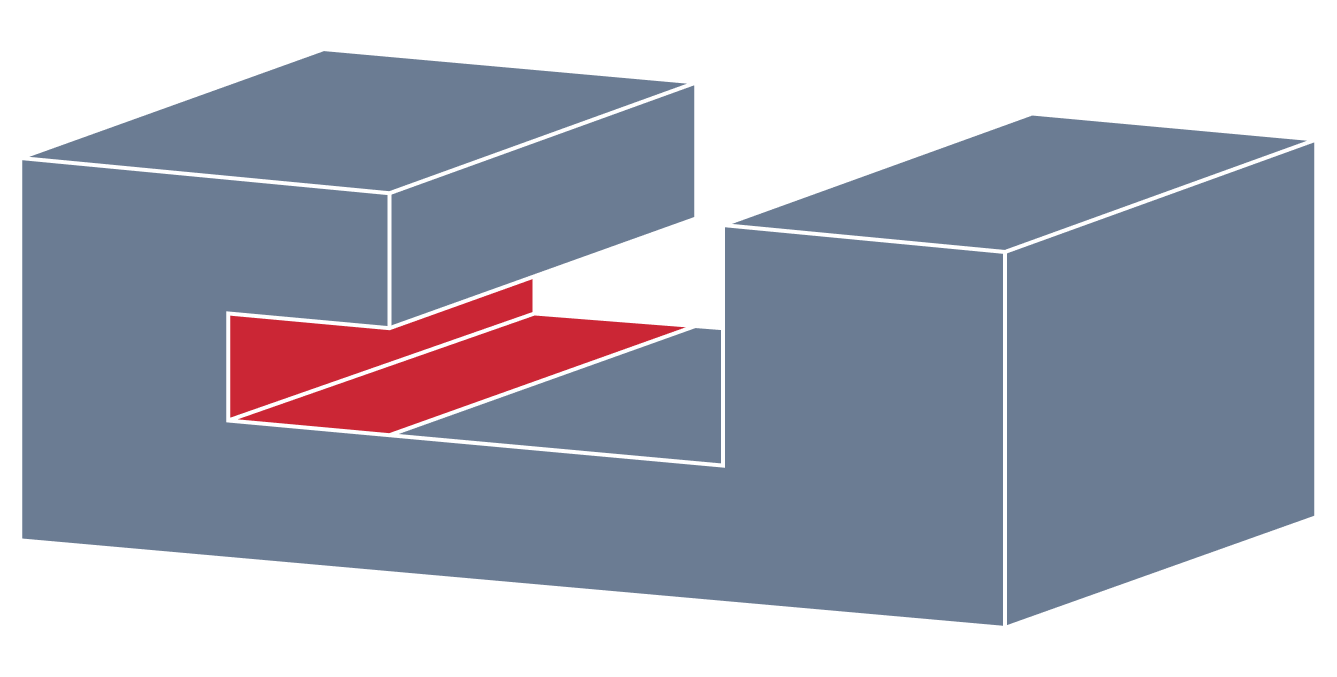

Undercut issue refers to the case when overhangs create hidden areas that a standard end mill cannot reach because of the limited tool access. These areas can be machined only with specialized tools such as T-slot or lollipop cutters, leading to extra setups, longer cycle times, and higher cost.

See also

DFMMachining_Analyzer

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

Dispose()

override void cadex.DFMMachining_UndercutIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_MillingIssue.

RelatedFeature()

cadex.MTKBase_ShapeFeature cadex.DFMMachining_UndercutIssue.RelatedFeature ( )

inline

Returns the feature where the undercut was detected.

See also

SetRelatedFeature()

SetRelatedFeature()

void cadex.DFMMachining_UndercutIssue.SetRelatedFeature ( cadex.MTKBase_ShapeFeature theRelatedFeature )

inline

Sets the related feature.

See also

RelatedFeature()

SetShape()

void cadex.DFMMachining_UndercutIssue.SetShape ( cadex.ModelData.Shape theShape )

inline

Sets the feature shape.

See also

Shape()

Shape()

cadex.ModelData.Shape cadex.DFMMachining_UndercutIssue.Shape ( )

inline

Returns the feature shape.

See also

SetShape()
