cadex.DFMMolding_SmallDistanceBetweenBossesIssue Class Reference

Describes a base class for small distance between bosses issues found during molding design analysis. More...

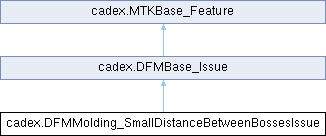

Inheritance diagram for cadex.DFMMolding_SmallDistanceBetweenBossesIssue:

Public Member Functions
	DFMMolding_SmallDistanceBetweenBossesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_SmallDistanceBetweenBossesIssue (cadex.MTKBase_Boss theFirstBoss, cadex.MTKBase_Boss theSecondBoss)
double	ExpectedMinDistanceBetweenBossesToThicknessRatio ()
void	SetExpectedMinDistanceBetweenBossesToThicknessRatio (double theRatio)
double	ExpectedMinDistanceBetweenBosses ()
void	SetExpectedMinDistanceBetweenBosses (double theDistance)
double	ActualDistanceBetweenBosses ()
void	SetActualDistanceBetweenBosses (double theDistance)
cadex.MTKBase_Boss	FirstBoss ()
void	SetFirstBoss (cadex.MTKBase_Boss theBoss)
cadex.MTKBase_Boss	SecondBoss ()
void	SetSecondBoss (cadex.MTKBase_Boss theBoss)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM molding small distance between bosses issue.
static new cadex.DFMMolding_SmallDistanceBetweenBossesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for small distance between bosses issues found during molding design analysis.

Contains problematic bosses, the distance between which fails the following condition:

\[ \large D_a \geq T \times R \]

\[ \begin{aligned} & \small D_a - \text{actual distance between bosses} \\ & \small T - \text{actual nominal thickness} \\ & \small R - \text{expected minimum distance between bosses to nominal thickness ratio} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Member Function Documentation

ActualDistanceBetweenBosses()

double cadex.DFMMolding_SmallDistanceBetweenBossesIssue.ActualDistanceBetweenBosses ( )

inline

Returns the actual distance between bosses in mm .

See also

SetActualDistanceToThicknessRatio(), FirstBoss(), SecondBoss()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMinDistanceBetweenBosses()

double cadex.DFMMolding_SmallDistanceBetweenBossesIssue.ExpectedMinDistanceBetweenBosses ( )

inline

Returns expected minimum distance between bosses in mm .

\[ \large D_e = T \times R \]

\[ \begin{aligned} & \small D_e - \text{expected minimum distance between bosses} \\ & \small T - \text{actual nominal thickness} \\ & \small R - \text{expected minimum distance between bosses to thickness ratio} \end{aligned} \]

See also

ExpectedMinDistanceToThicknessRatio(), ActualDistanceBetweenBosses()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMinDistanceBetweenBossesToThicknessRatio()

double cadex.DFMMolding_SmallDistanceBetweenBossesIssue.ExpectedMinDistanceBetweenBossesToThicknessRatio ( )

inline

Returns expected minimum distance between bosses to nominal thickness ratio.

See also

SetExpectedMinDistanceToThicknessRatio()

FirstBoss()

cadex.MTKBase_Boss cadex.DFMMolding_SmallDistanceBetweenBossesIssue.FirstBoss ( )

inline

Returns first problematic boss.

See also

SetFirstBoss()

SecondBoss()

cadex.MTKBase_Boss cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SecondBoss ( )

inline

Returns second problematic Boss.

See also

SetSecondBoss()

SetActualDistanceBetweenBosses()

void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SetActualDistanceBetweenBosses ( double theDistance )

inline

Sets the actual distance between bosses in mm. theDistance should be greater than zero.

See also

ActualDistanceBetweenBosses()

SetExpectedMinDistanceBetweenBosses()

void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SetExpectedMinDistanceBetweenBosses ( double theDistance )

inline

Sets the actual distance between bosses in mm. theDistance should be greater than zero.

See also

ActualDistanceBetweenBosses()

SetExpectedMinDistanceBetweenBossesToThicknessRatio()

void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SetExpectedMinDistanceBetweenBossesToThicknessRatio ( double theRatio )

inline

Sets expected minimum distance between bosses to nominal thickness ratio. theRatio should be greater than zero.

See also

ExpectedMinDistanceToThicknessRatio()

SetFirstBoss()

void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SetFirstBoss ( cadex.MTKBase_Boss theBoss )

inline

Sets first problematic boss.

See also

FirstBoss()

SetSecondBoss()

void cadex.DFMMolding_SmallDistanceBetweenBossesIssue.SetSecondBoss ( cadex.MTKBase_Boss theBoss )

inline

Sets second problematic Boss.

See also

SecondBoss()
