cadex.MTKBase_Boss Class Reference

Describes a boss. More...

Inheritance diagram for cadex.MTKBase_Boss:

Public Member Functions
	MTKBase_Boss (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_Boss ()
	Constructor.
	MTKBase_Boss (double theWidth, double theLength, double theHeight)
	Creates a Boss from length, width and height.
double	Width ()
	Returns the boss width in mm.
void	SetWidth (double theWidth)
	Sets width for boss in mm.
double	Length ()
	Returns the boss length in mm .
void	SetLength (double theLength)
	Sets length for boss in mm.
double	Height ()
	Returns the boss Height in mm .
void	SetHeight (double theHeight)
	Sets Height for boss in mm.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a Boss.
static new cadex.MTKBase_Boss	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a boss.

In CNC Machining a boss is a protrusion or raised area on a workpiece that is created by removing material around it using a milling cutter. The boss feature can be used for various purposes such as providing a location for fasteners, creating a bearing surface, or serving as a mounting point for other components.

Shape() method returns ModelData.Shell for this class.

Boss

Boss have the following basic parameters: width in mm, length in mm, height in mm.

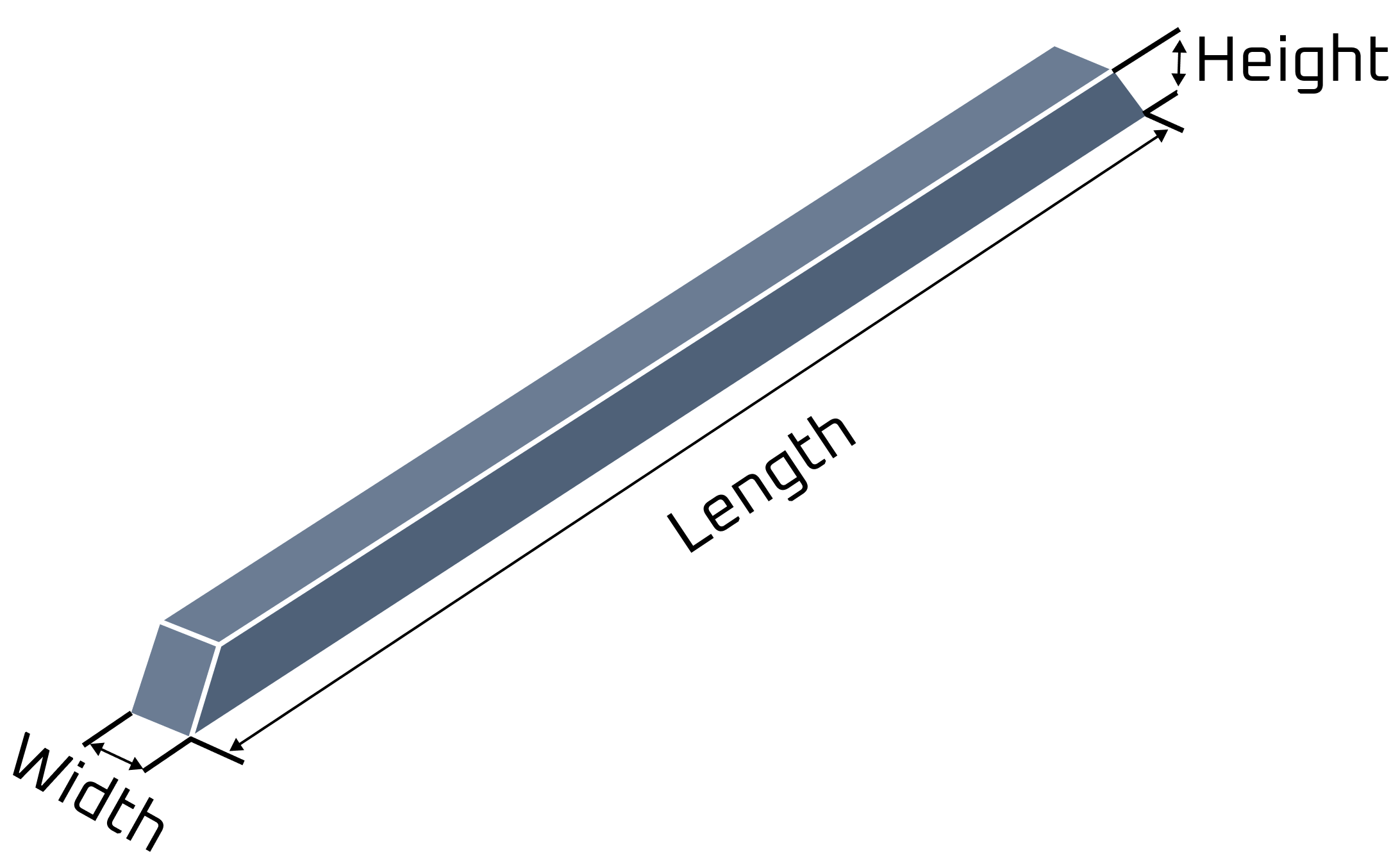

Boss parameters

Examples

machining/feature_recognizer/Program.cs, machining/feature_recognizer/main.cxx, molding/feature_recognizer/Program.cs, and molding/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

MTKBase_Boss() [1/2]

cadex.MTKBase_Boss.MTKBase_Boss ( )

inline

Constructor.

MTKBase_Boss() [2/2]

cadex.MTKBase_Boss.MTKBase_Boss ( double theWidth, double theLength, double theHeight )

inline

Creates a Boss from length, width and height.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.MTKBase_Boss.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returnstrue if theFeature is a Boss.

Examples

machining/feature_recognizer/Program.cs, and molding/feature_recognizer/Program.cs.

Dispose()

override void cadex.MTKBase_Boss.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

Height()

double cadex.MTKBase_Boss.Height ( )

inline

Returns the boss Height in mm .

See also

SetHeight()

Examples

machining/feature_recognizer/Program.cs, and molding/feature_recognizer/Program.cs.

Length()

double cadex.MTKBase_Boss.Length ( )

inline

Returns the boss length in mm .

See also

SetLength()

Examples

machining/feature_recognizer/Program.cs, and molding/feature_recognizer/Program.cs.

SetHeight()

void cadex.MTKBase_Boss.SetHeight ( double theHeight )

inline

Sets Height for boss in mm.

The value must be more than zero.

See also

Height()

SetLength()

void cadex.MTKBase_Boss.SetLength ( double theLength )

inline

Sets length for boss in mm.

The value must be more than zero.

See also

Length()

SetWidth()

void cadex.MTKBase_Boss.SetWidth ( double theWidth )

inline

Sets width for boss in mm.

The value must be more than zero.

See also

Width()

Width()

double cadex.MTKBase_Boss.Width ( )

inline

Returns the boss width in mm.

See also

SetWidth()

Examples

machining/feature_recognizer/Program.cs, and molding/feature_recognizer/Program.cs.
