cadex.DFMMolding_SmallDraftAngleRibIssue Class Reference

Describes small draft angle rib issues found during injection molding design analysis. More...

Inheritance diagram for cadex.DFMMolding_SmallDraftAngleRibIssue:

Public Member Functions
	DFMMolding_SmallDraftAngleRibIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_SmallDraftAngleRibIssue ()
	Constructor.
	DFMMolding_SmallDraftAngleRibIssue (cadex.Molding_Rib theRib)
	Constructor.
double	ExpectedMinDraftAngle ()
void	SetExpectedMinDraftAngle (double theAngle)
double	ActualDraftAngle ()
Public Member Functions inherited from cadex.DFMMolding_RibIssue
	DFMMolding_RibIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Molding_Rib	Rib ()
void	SetRib (cadex.Molding_Rib theRib)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding small draft angle rib issue.
static new cadex.DFMMolding_SmallDraftAngleRibIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMolding_RibIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding rib issue.
static new cadex.DFMMolding_RibIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small draft angle rib issues found during injection molding design analysis.

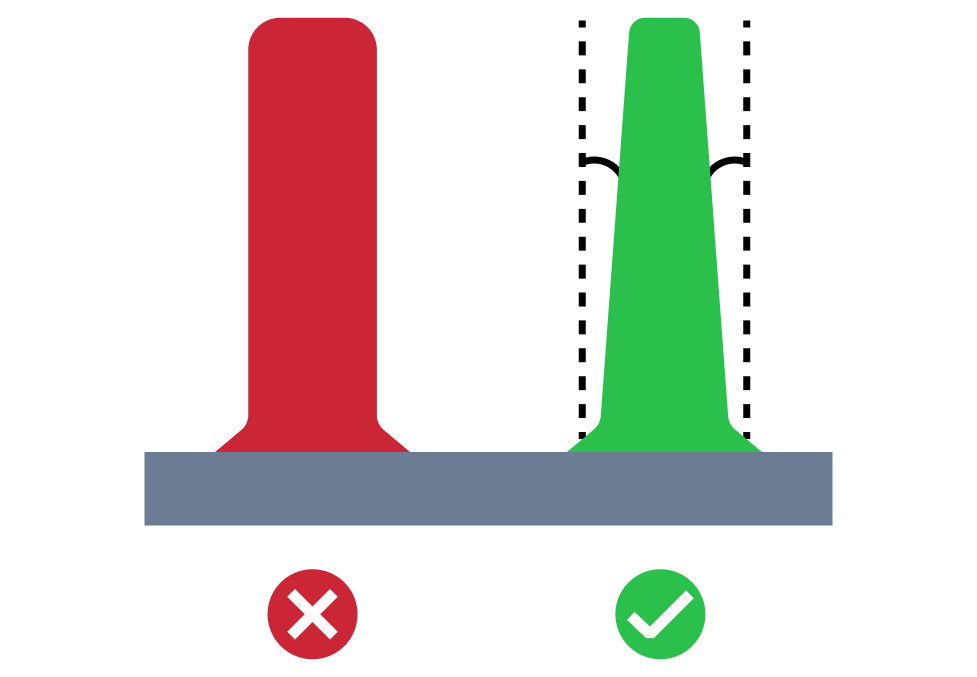

The small rib draft angle issue refers to a situation where the rib draft angle is smaller than the recommended one. Appropriate draft angle is required for ease of the part removal from mold and minimizing its damage. Also too small draft angle can lead to defects like drag marks.

Contains rib that fails the following condition:

\[ \large A \geq Min A \]

\[ \begin{aligned} & \small A - \text{analyzed rib draft angle} \\ & \small Min A - \text{minimum rib draft angle} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MinRibDraftAngle(), Molding_Rib

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_SmallDraftAngleRibIssue()

cadex.DFMMolding_SmallDraftAngleRibIssue.DFMMolding_SmallDraftAngleRibIssue ( cadex.Molding_Rib theRib )

inline

Constructor.

Creates a small draft angle rib issue from the Molding_Rib object.

Member Function Documentation

ActualDraftAngle()

double cadex.DFMMolding_SmallDraftAngleRibIssue.ActualDraftAngle ( )

inline

Returns the actual rib draft angle in radians .

See also

Rib()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_SmallDraftAngleRibIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMolding_RibIssue.

ExpectedMinDraftAngle()

double cadex.DFMMolding_SmallDraftAngleRibIssue.ExpectedMinDraftAngle ( )

inline

Returns the expected minimum draft angle in radians .

See also

SetExpectedMinDraftAngle(), DFMMolding_AnalyzerParameters.MinRibDraftAngle()

Examples

molding/dfm_analyzer/Program.cs.

SetExpectedMinDraftAngle()

void cadex.DFMMolding_SmallDraftAngleRibIssue.SetExpectedMinDraftAngle ( double theAngle )

inline

Sets the expected minimum draft angle. theAngle should be greater than or equal to zero.

See also

ExpectedMinDraftAngle()
