cadex.DFMMolding_WallThicknessIssue Class Reference

Describes a base class for wall thickness issues found during injection molding design analysis. More...

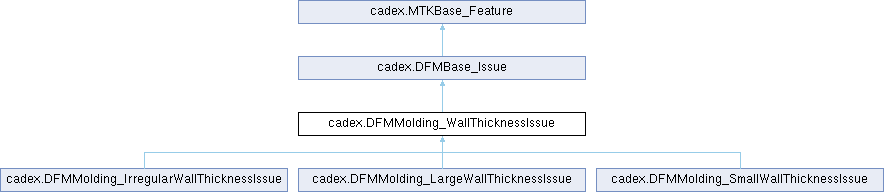

Inheritance diagram for cadex.DFMMolding_WallThicknessIssue:

Public Member Functions
	DFMMolding_WallThicknessIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.ModelData.Shell	Shape ()
	Returns the shape of problematic wall.
void	SetShape (cadex.ModelData.Shell theWall)
	Sets the shape of problematic wall.
double	ActualThickness ()
	Returns the actual wall thickness in mm .
void	SetActualThickness (double theThickness)
	Sets the actual wall thickness in mm .
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding wall thickness issue.
static new cadex.DFMMolding_WallThicknessIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for wall thickness issues found during injection molding design analysis.

Contains faces of problematic wall that can be received by FirstFace() and SecondFace() methods.

See also

DFMMolding_Analyzer

Member Function Documentation

ActualThickness()

double cadex.DFMMolding_WallThicknessIssue.ActualThickness ( )

inline

Returns the actual wall thickness in mm .

See also

SetActualThickness()

Examples

molding/dfm_analyzer/Program.cs.

CompareType()

static new bool cadex.DFMMolding_WallThicknessIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM molding wall thickness issue.

Dispose()

override void cadex.DFMMolding_WallThicknessIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

SetActualThickness()

void cadex.DFMMolding_WallThicknessIssue.SetActualThickness ( double theThickness )

inline

Sets the actual wall thickness in mm .

See also

ActualThickness()

SetShape()

void cadex.DFMMolding_WallThicknessIssue.SetShape ( cadex.ModelData.Shell theWall )

inline

Sets the shape of problematic wall.

See also

Shape()

Shape()

cadex.ModelData.Shell cadex.DFMMolding_WallThicknessIssue.Shape ( )

inline

Returns the shape of problematic wall.

See also

SetFaces()
