cadex.ModelData.Shell Class Reference

Defines a connected set of faces. More...

Inheritance diagram for cadex.ModelData.Shell:

Public Member Functions
	Shell (global::System.IntPtr cPtr, bool cMemoryOwn)
	Shell (cadex.ModelData.Face theFace)
	Constructor.
bool	Append (cadex.ModelData.Face theFace)
bool	Append (cadex.Collections.FaceList theFaces)
Public Member Functions inherited from cadex.ModelData.Shape
	Shape (global::System.IntPtr cPtr, bool cMemoryOwn)
override int	GetHashCode ()
cadex.ModelData.ShapeType	Type ()
	Returns a shape type. For a null object returns Undefined.
cadex.ModelData.ShapeOrientation	Orientation ()
	Returns orientation flag.
cadex.ModelData.Shape	Reversed ()
	Returns a shape that shares the same geometry and subshape graph but has opposite orientation.
cadex.ModelData.Shape	Oriented (cadex.ModelData.ShapeOrientation theOrientation)
	Returns a shape that shares the same geometry and subshape graph and has specified orientation.
bool	IsEqual (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph, and has equal orientation.
bool	IsSame (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph.
void	SetName (cadex.UTF16String theName)
	Sets the name.
cadex.UTF16String	Name ()
	Returns the name.
void	AddAssociatedPMI (cadex.PMI.Element theElement)
	Adds the PMI element.
void	AddAssociatedPMI (cadex.Collections.PMIElementList theElements)
	Adds the PMI elements.
cadex.Collections.PMIElementList	AssociatedPMI ()
	Returns the PMI elements.
override bool	Equals (System.Object o)
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static cadex.ModelData.Shell	Cast (cadex.ModelData.Shape theShape)
static new bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
Static Public Member Functions inherited from cadex.ModelData.Shape
static bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
static cadex.ModelData.Shape	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Defines a connected set of faces.

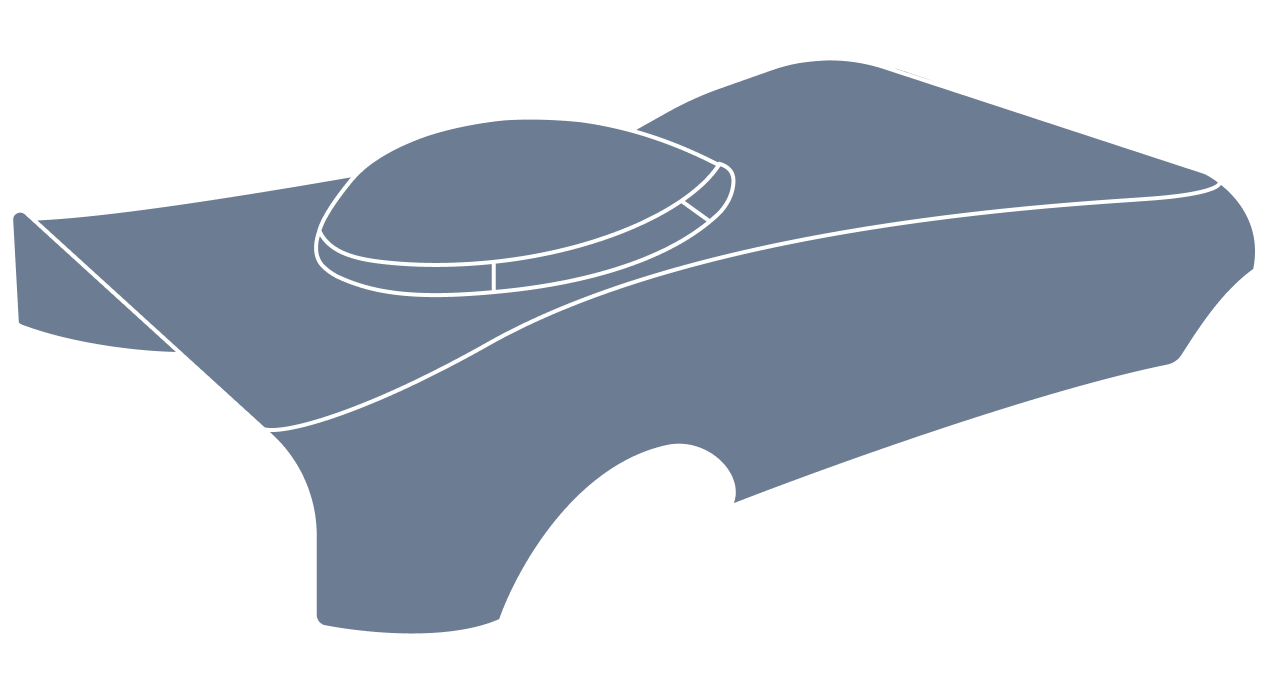

The following image depicts an example of a shell:

Shell

Direct children of shell are faces which must be connected with each other (i.e. have common edges) and consistently oriented (i.e. each common edge must be forward in one face and reversed in the other).

Although the data model can describe a non-manifold topology (i.e. a common edge shared by more than two faces), it is strongly not recommended to construct such.

Shell bounding a solid must be closed. A shell not belonging to a solid may have free edges (i.e. shared by one face only).

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, exploring/brep_geometry/Program.cs, exploring/brep_geometry/main.cxx, helpers/shape_processor.cs, helpers/shape_processor.hxx, machining/dfm_analyzer/Program.cs, machining/dfm_analyzer/main.cxx, machining/feature_recognizer/Program.cs, machining/feature_recognizer/main.cxx, molding/dfm_analyzer/Program.cs, molding/dfm_analyzer/main.cxx, molding/feature_recognizer/Program.cs, molding/feature_recognizer/main.cxx, sheet_metal/dfm_analyzer/Program.cs, sheet_metal/dfm_analyzer/main.cxx, sheet_metal/feature_recognizer/Program.cs, sheet_metal/feature_recognizer/main.cxx, sheet_metal/unfolder/Program.cs, and sheet_metal/unfolder/main.cxx.

Member Function Documentation

Dispose()

override void cadex.ModelData.Shell.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.ModelData.Shape.
