cadex.DFMSheetMetal_BendIssue Class Reference

Describes a base class for bend issues found during sheet metal design analysis. More...

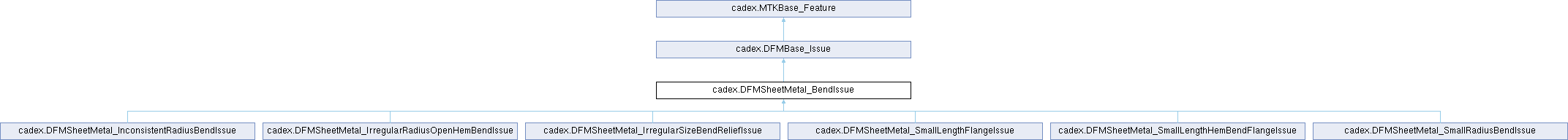

Inheritance diagram for cadex.DFMSheetMetal_BendIssue:

Public Member Functions
	DFMSheetMetal_BendIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.SheetMetal_Bend	Bend ()
void	SetBend (cadex.SheetMetal_Bend theBend)
double	ActualSheetThickness ()
void	SetActualSheetThickness (double theThickness)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal bend issue.
static new cadex.DFMSheetMetal_BendIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for bend issues found during sheet metal design analysis.

Contains problematic bend that can be received by Bend() method.

See also

DFMSheetMetal_Analyzer

Member Function Documentation

ActualSheetThickness()

double cadex.DFMSheetMetal_BendIssue.ActualSheetThickness ( )

inline

Returns the actual sheet thickness of analyzed part in mm .

See also

SetActualSheetThickness()

Bend()

cadex.SheetMetal_Bend cadex.DFMSheetMetal_BendIssue.Bend ( )

inline

Returns the problematic sheet metal bend.

See also

SetBend()

Dispose()

override void cadex.DFMSheetMetal_BendIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

SetActualSheetThickness()

void cadex.DFMSheetMetal_BendIssue.SetActualSheetThickness ( double theThickness )

inline

Sets the actual sheet thickness in mm . theThickness should be greater than zero.

See also

ActualSheetThickness()

SetBend()

void cadex.DFMSheetMetal_BendIssue.SetBend ( cadex.SheetMetal_Bend theBend )

inline

Sets the problematic sheet metal bend.

See also

Bend()
