cadex.SheetMetal_Bend Class Reference

Describes a bend in sheet metal. More...

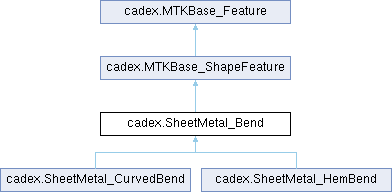

Inheritance diagram for cadex.SheetMetal_Bend:

Public Member Functions
	SheetMetal_Bend (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Bend ()
	Constructor.
	SheetMetal_Bend (double theRadius, double theAngle, double theWidth)
	Creates a bend with specified radius, angle and width.
double	Radius ()
	Returns the bend radius in mm .
void	SetRadius (double theRadius)
	Sets bend radius in mm .
double	Angle ()
	Returns the bend angle in radians.
void	SetAngle (double theAngle)
	Sets bend angle in radians.
double	Width ()
	Returns the bend width in mm .
void	SetWidth (double theWidth)
	Sets bend width in mm .
double	Length ()
	Returns the length of resulting bend (not blank sheet metal model). Length value returns in mm .
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a bend.
static new cadex.SheetMetal_Bend	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a bend in sheet metal.

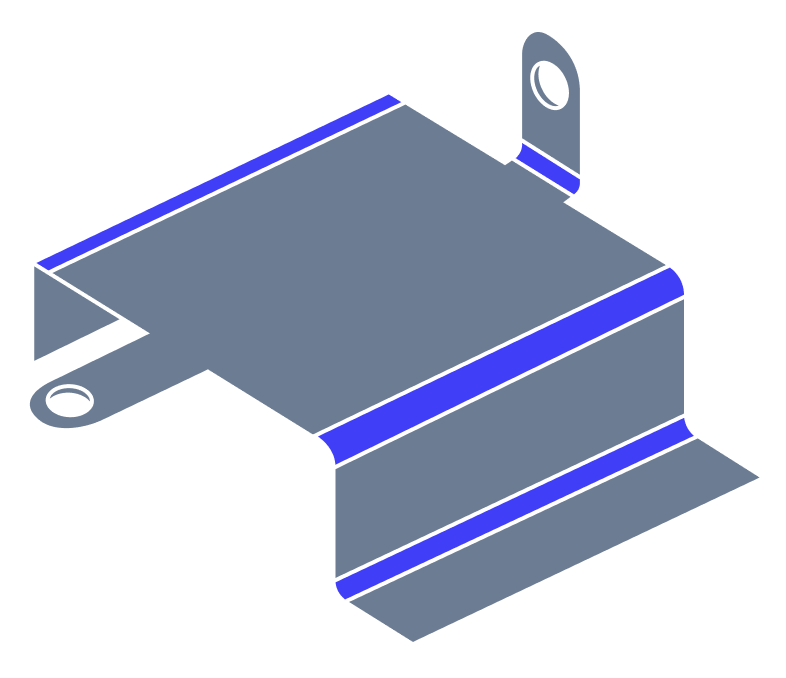

Bending is one of the most common sheet metal fabrication operations. Also known as press braking, flanging, die bending, folding and edging, this method is used to deform a material to an angular shape.

Shape() method returns ModelData.Shell for this class.

Bends

Bends have the following basic parameters: radius in mm, angle in radians, width in mm and length in mm.

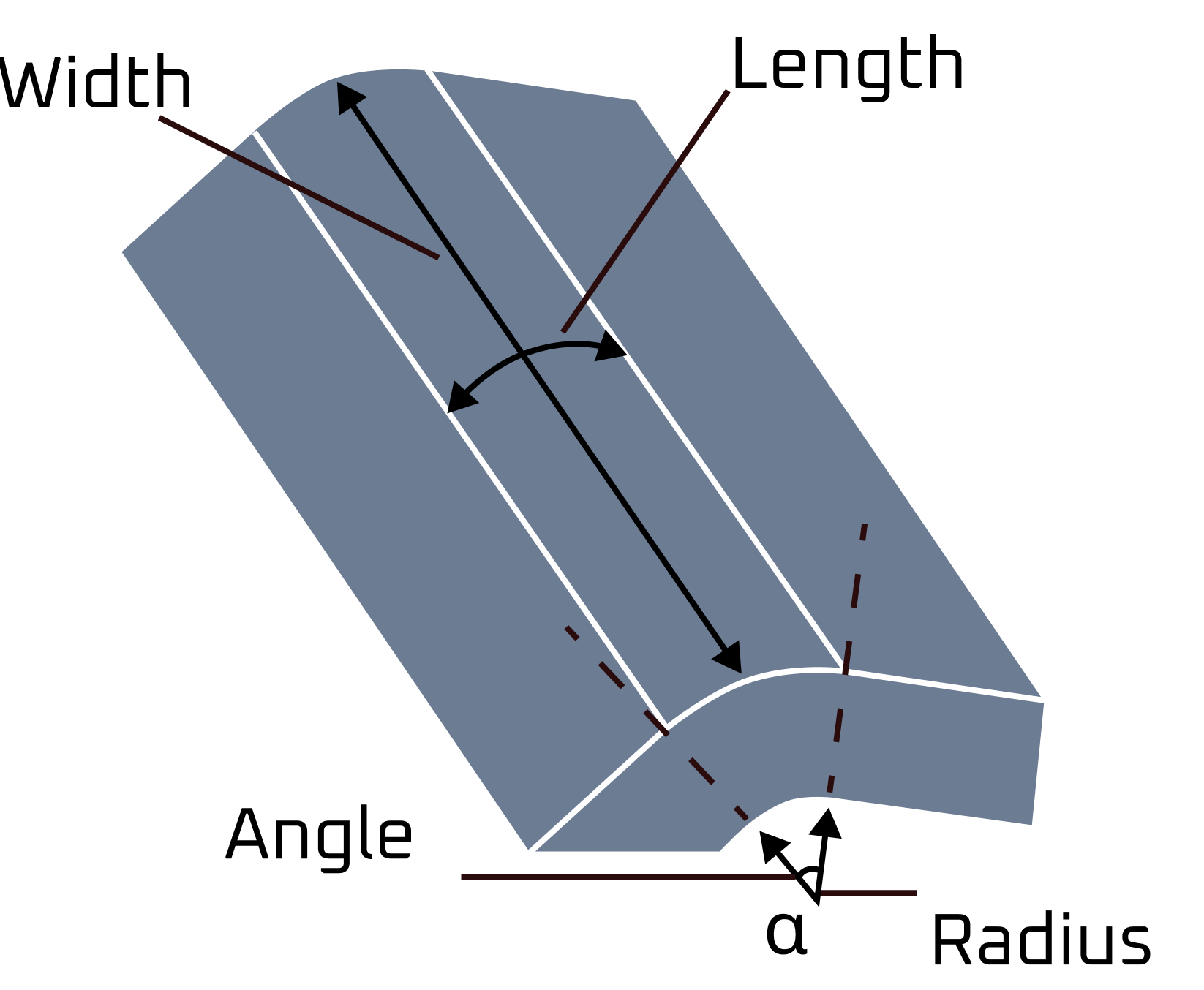

Bend parameters

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Bend() [1/2]

cadex.SheetMetal_Bend.SheetMetal_Bend ( )

inline

Constructor.

SheetMetal_Bend() [2/2]

cadex.SheetMetal_Bend.SheetMetal_Bend ( double theRadius, double theAngle, double theWidth )

inline

Creates a bend with specified radius, angle and width.

Constructor.

Member Function Documentation

Angle()

double cadex.SheetMetal_Bend.Angle ( )

inline

Returns the bend angle in radians.

See also

SetAngle()

Examples

sheet_metal/feature_recognizer/Program.cs.

CompareType()

static new bool cadex.SheetMetal_Bend.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a bend.

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Bend.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

Length()

double cadex.SheetMetal_Bend.Length ( )

inline

Returns the length of resulting bend (not blank sheet metal model). Length value returns in mm .

Examples

sheet_metal/feature_recognizer/Program.cs.

Radius()

double cadex.SheetMetal_Bend.Radius ( )

inline

Returns the bend radius in mm .

See also

SetRadius()

Examples

sheet_metal/feature_recognizer/Program.cs.

SetAngle()

void cadex.SheetMetal_Bend.SetAngle ( double theAngle )

inline

Sets bend angle in radians.

The value must be more than zero, otherwise nothing happens.

See also

Angle()

SetRadius()

void cadex.SheetMetal_Bend.SetRadius ( double theRadius )

inline

Sets bend radius in mm .

The value must be more than zero, otherwise nothing happens.

See also

Radius()

SetWidth()

void cadex.SheetMetal_Bend.SetWidth ( double theWidth )

inline

Sets bend width in mm .

The value must be more than zero, otherwise nothing happens.

See also

Width()

Width()

double cadex.SheetMetal_Bend.Width ( )

inline

Returns the bend width in mm .

See also

SetWidth()

Examples

sheet_metal/feature_recognizer/Program.cs.
