cadex.DFMSheetMetal_FlatPatternInterferenceIssue Class Reference

Describes interference issue for flat pattern found during sheet metal design analysis. More...

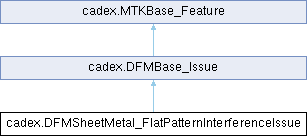

Inheritance diagram for cadex.DFMSheetMetal_FlatPatternInterferenceIssue:

Public Member Functions
	DFMSheetMetal_FlatPatternInterferenceIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_FlatPatternInterferenceIssue ()
	Constructor.
	DFMSheetMetal_FlatPatternInterferenceIssue (cadex.ModelData.Face theFirstFace, cadex.ModelData.Face theSecondFace, cadex.ModelData.Face theInterferenceFace)
	Constructor.
cadex.ModelData.Face	FirstFace ()
void	SetFirstFace (cadex.ModelData.Face theFace)
cadex.ModelData.Face	SecondFace ()
void	SetSecondFace (cadex.ModelData.Face theFace)
cadex.ModelData.Face	InterferenceFace ()
void	SetInterferenceFace (cadex.ModelData.Face theFace)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a flat pattern inteference issue.
static new cadex.DFMSheetMetal_FlatPatternInterferenceIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

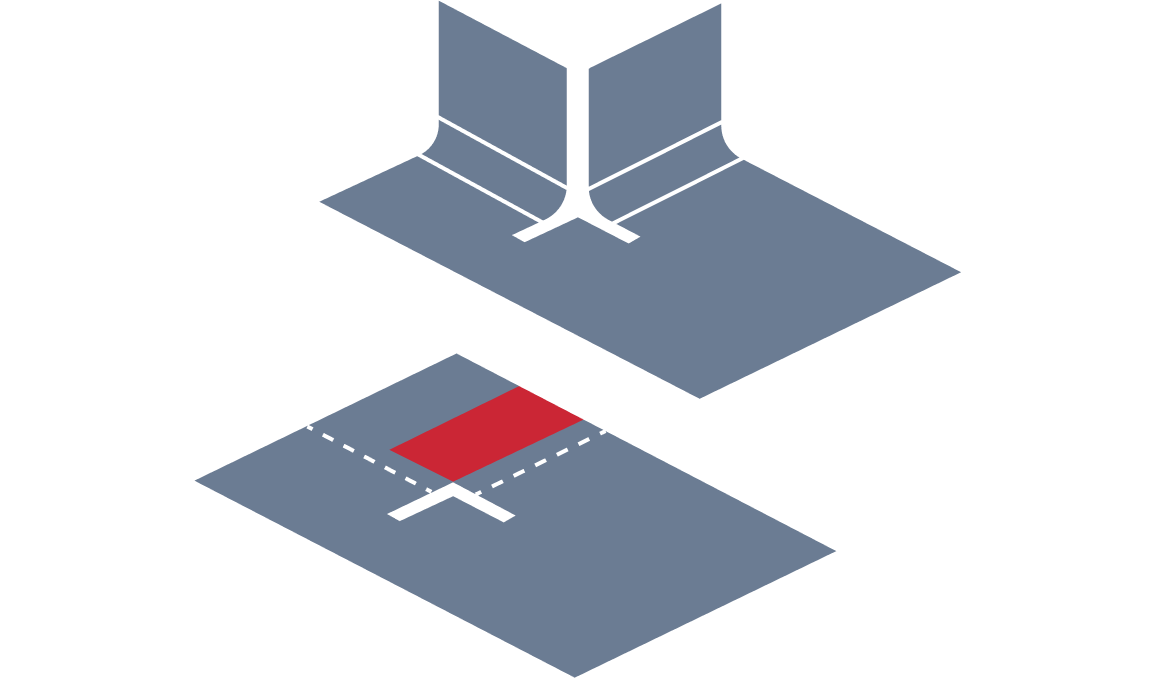

Describes interference issue for flat pattern found during sheet metal design analysis.

Flat pattern interference occurs when the flattened shape of a part does not fit properly on the flat sheet material that it is cut from. This can result in issues during the manufacturing process, such as warping or bending of the material, or inaccuracy in the final product.

See also

DFMSheetMetal_Analyzer

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_FlatPatternInterferenceIssue()

cadex.DFMSheetMetal_FlatPatternInterferenceIssue.DFMSheetMetal_FlatPatternInterferenceIssue ( cadex.ModelData.Face theFirstFace, cadex.ModelData.Face theSecondFace, cadex.ModelData.Face theInterferenceFace )

inline

Constructor.

Creates an interference issues from three ModelData.Face objects.

Member Function Documentation

Dispose()

override void cadex.DFMSheetMetal_FlatPatternInterferenceIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

FirstFace()

cadex.ModelData.Face cadex.DFMSheetMetal_FlatPatternInterferenceIssue.FirstFace ( )

inline

Returns the first intersecting face.

See also

SetFirstFace()

InterferenceFace()

cadex.ModelData.Face cadex.DFMSheetMetal_FlatPatternInterferenceIssue.InterferenceFace ( )

inline

Returns the interference face.

See also

SetInterferenceFace()

SecondFace()

cadex.ModelData.Face cadex.DFMSheetMetal_FlatPatternInterferenceIssue.SecondFace ( )

inline

Returns the second intersecting face.

See also

SetSecondFace()

SetFirstFace()

void cadex.DFMSheetMetal_FlatPatternInterferenceIssue.SetFirstFace ( cadex.ModelData.Face theFace )

inline

Sets the first intersecting face.

See also

FirstFace()

SetInterferenceFace()

void cadex.DFMSheetMetal_FlatPatternInterferenceIssue.SetInterferenceFace ( cadex.ModelData.Face theFace )

inline

Sets the interference face.

See also

InterferenceFace()

SetSecondFace()

void cadex.DFMSheetMetal_FlatPatternInterferenceIssue.SetSecondFace ( cadex.ModelData.Face theFace )

inline

Sets the second intersecting face.

See also

SecondFace()
