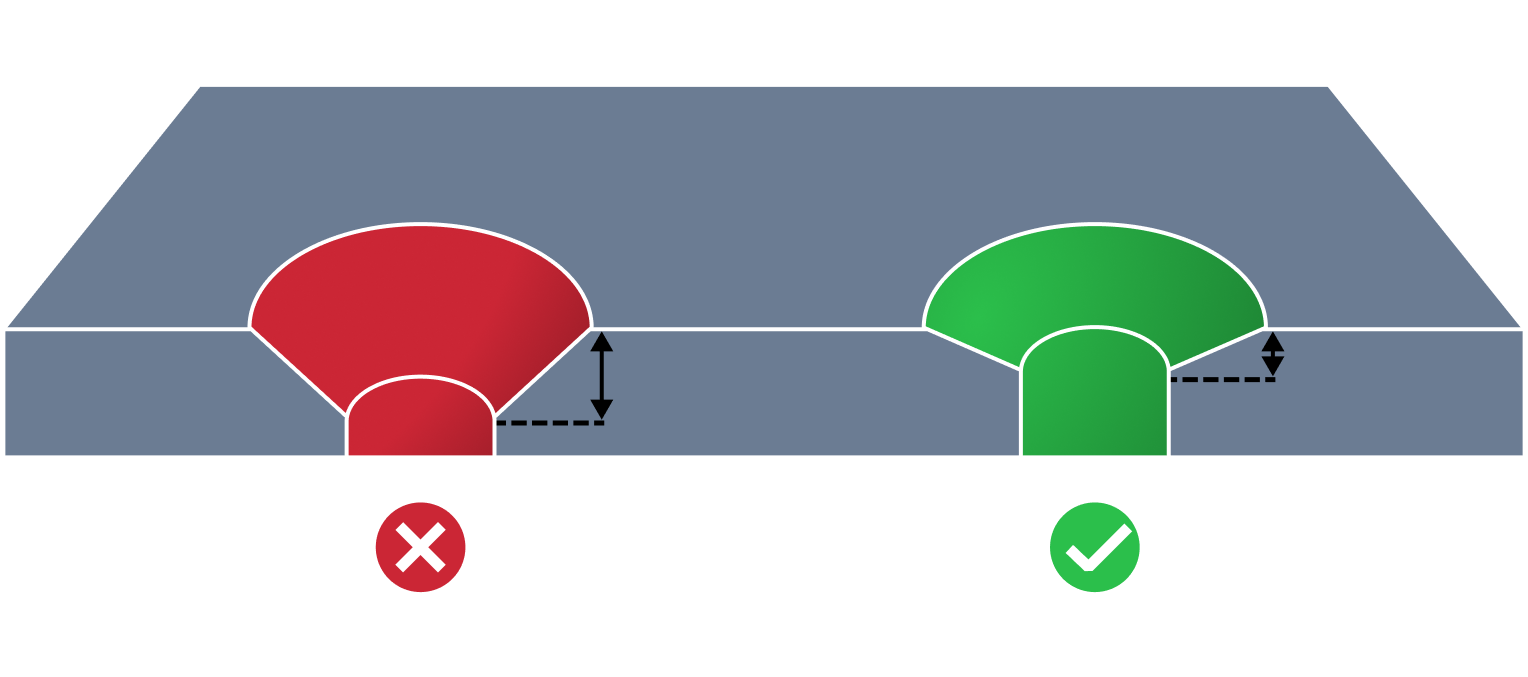

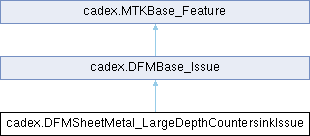

cadex.DFMSheetMetal_LargeDepthCountersinkIssue Class Reference

Describes large depth countersink issue found during sheet metal design analysis. More...

Inheritance diagram for cadex.DFMSheetMetal_LargeDepthCountersinkIssue:

Public Member Functions
	DFMSheetMetal_LargeDepthCountersinkIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_LargeDepthCountersinkIssue ()
	Constructor.
	DFMSheetMetal_LargeDepthCountersinkIssue (cadex.ModelData.Shape theCountersink)
	Creates a large depth countersink from SheetMetal_Countersink object.
cadex.ModelData.Shape	Countersink ()
	Returns the problematic countersink.
void	SetCountersink (cadex.ModelData.Shape theCountersink)
	Sets the problematic countersink.
double	ExpectedMaxDepthToSheetThicknessRatio ()
	Returns the expected maximum countersink depth.
void	SetExpectedMaxDepthToSheetThicknessRatio (double theRatio)
	Sets the expected maximum countersink depth.
double	ExpectedMaxDepth ()
	Return expected maximum countersink depth in mm .
double	ActualDepth ()
	Return actual countersink depth in mm .
void	SetActualDepth (double theDepth)
	Sets the actual countersink depth in mm .
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm .
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a large depth countersink issue.
static new cadex.DFMSheetMetal_LargeDepthCountersinkIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes large depth countersink issue found during sheet metal design analysis.

A large countersink depth issue can weaken the sheet metal, cause a bulge on the opposite face, and lead to poor fastener seating.

Contains countersink that fails the following condition:

\[ \large D_b \leq T \times Rt \]

\[ \begin{aligned} & \small D_b - \text{countersink depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected maximum countersink depth to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MaxCountersinkDepthToSheetThicknessRatio()

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_LargeDepthCountersinkIssue() [1/2]

cadex.DFMSheetMetal_LargeDepthCountersinkIssue.DFMSheetMetal_LargeDepthCountersinkIssue ( )

inline

Constructor.

DFMSheetMetal_LargeDepthCountersinkIssue() [2/2]

cadex.DFMSheetMetal_LargeDepthCountersinkIssue.DFMSheetMetal_LargeDepthCountersinkIssue ( cadex.ModelData.Shape theCountersink )

inline

Creates a large depth countersink from SheetMetal_Countersink object.

Constructor.

Member Function Documentation

ActualDepth()

double cadex.DFMSheetMetal_LargeDepthCountersinkIssue.ActualDepth ( )

inline

Return actual countersink depth in mm .

See also

Countersink()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ActualSheetThickness()

double cadex.DFMSheetMetal_LargeDepthCountersinkIssue.ActualSheetThickness ( )

inline

Returns the actual sheet thickness of analyzed part in mm .

See also

SetActualSheetThickness()

CompareType()

static new bool cadex.DFMSheetMetal_LargeDepthCountersinkIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a large depth countersink issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Countersink()

cadex.ModelData.Shape cadex.DFMSheetMetal_LargeDepthCountersinkIssue.Countersink ( )

inline

Returns the problematic countersink.

See also

SetCountersink()

Dispose()

override void cadex.DFMSheetMetal_LargeDepthCountersinkIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMaxDepth()

double cadex.DFMSheetMetal_LargeDepthCountersinkIssue.ExpectedMaxDepth ( )

inline

Return expected maximum countersink depth in mm .

\[ \large D_e = T \times Rt \]

\[ \begin{aligned} & \small D_e - \text{expected maximum countersink depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected maximum countersink depth to sheet thickness ratio} \end{aligned} \]

See also

ExpectedMaxDepthToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedMaxDepthToSheetThicknessRatio()

double cadex.DFMSheetMetal_LargeDepthCountersinkIssue.ExpectedMaxDepthToSheetThicknessRatio ( )

inline

Returns the expected maximum countersink depth.

See also

SetExpectedMaxDepthToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.MaxCountersinkDepthToSheetThicknessRatio()

SetActualDepth()

void cadex.DFMSheetMetal_LargeDepthCountersinkIssue.SetActualDepth ( double theDepth )

inline

Sets the actual countersink depth in mm .

theDepth should be greater than zero.

See also

ActualDepth()

SetActualSheetThickness()

void cadex.DFMSheetMetal_LargeDepthCountersinkIssue.SetActualSheetThickness ( double theThickness )

inline

Sets the actual sheet thickness in mm .

theThickness should be greater than zero.

See also

ActualSheetThickness()

SetCountersink()

void cadex.DFMSheetMetal_LargeDepthCountersinkIssue.SetCountersink ( cadex.ModelData.Shape theCountersink )

inline

Sets the problematic countersink.

See also

Countersink()

SetExpectedMaxDepthToSheetThicknessRatio()

void cadex.DFMSheetMetal_LargeDepthCountersinkIssue.SetExpectedMaxDepthToSheetThicknessRatio ( double theRatio )

inline

Sets the expected maximum countersink depth.

theRatio should be greater than zero.

See also

ExpectedMaxDepthToSheetThicknessRatio()
