cadex.DFMSheetMetal_NonStandardSheetThicknessIssue Class Reference

Describes non standard sheet thickness issue found during sheet metal design analysis. More...

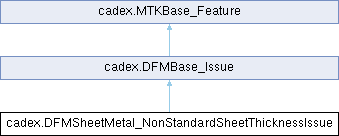

Inheritance diagram for cadex.DFMSheetMetal_NonStandardSheetThicknessIssue:

Public Member Functions
	DFMSheetMetal_NonStandardSheetThicknessIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_NonStandardSheetThicknessIssue ()
	Constructor.
	DFMSheetMetal_NonStandardSheetThicknessIssue (double theActualThickness)
	Constructor.
double	NearestStandardSheetThickness ()
void	SetNearestStandardSheetThickness (double theThickness)
double	ActualSheetThickness ()
void	SetActualSheetThickness (double theThickness)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a non standard sheet thickness issue.
static new cadex.DFMSheetMetal_NonStandardSheetThicknessIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non standard sheet thickness issue found during sheet metal design analysis.

The non-standard sheet thickness issue refers to the use of sheet metal that is not available in standard thicknesses. This can be a problem because it can make the fabrication process more difficult and add additional costs. Typically, sheet metal is available in a range of standard thicknesses, which makes it easier to design and fabricate parts. However, when a non-standard thickness is required, it can create issues with tooling, bending, and other fabrication processes.

Contains non standard sheet thickness and the standard thickness closest to it.

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.SheetSizeStandardSizeParameters()

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_NonStandardSheetThicknessIssue()

cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.DFMSheetMetal_NonStandardSheetThicknessIssue ( double theActualThickness )

inline

Constructor.

Creates an issue with specified actual sheet thickness.

Member Function Documentation

ActualSheetThickness()

double cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.ActualSheetThickness ( )

inline

Returns the actual sheet thickness in mm .

See also

SetActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

NearestStandardSheetThickness()

double cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.NearestStandardSheetThickness ( )

inline

Returns the nearest standard sheet thickness in mm .

See also

SetNearestStandardSheetThickness(), DFMSheetMetal_AnalyzerParameters.SheetThicknessStandardSizeParameters()

Examples

sheet_metal/dfm_analyzer/Program.cs.

SetActualSheetThickness()

void cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.SetActualSheetThickness ( double theThickness )

inline

Sets the actual sheet thickness in mm . theThickness should be greater than zero.

See also

ActualSheetThickness()

SetNearestStandardSheetThickness()

void cadex.DFMSheetMetal_NonStandardSheetThicknessIssue.SetNearestStandardSheetThickness ( double theThickness )

inline

Sets the nearest standard sheet thickness in mm . theThickness should be greater than zero.

See also

NearestStandardSheetThickness()
