cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue Class Reference

Describes a base class for small distance issues found during sheet metal design analysis. More...

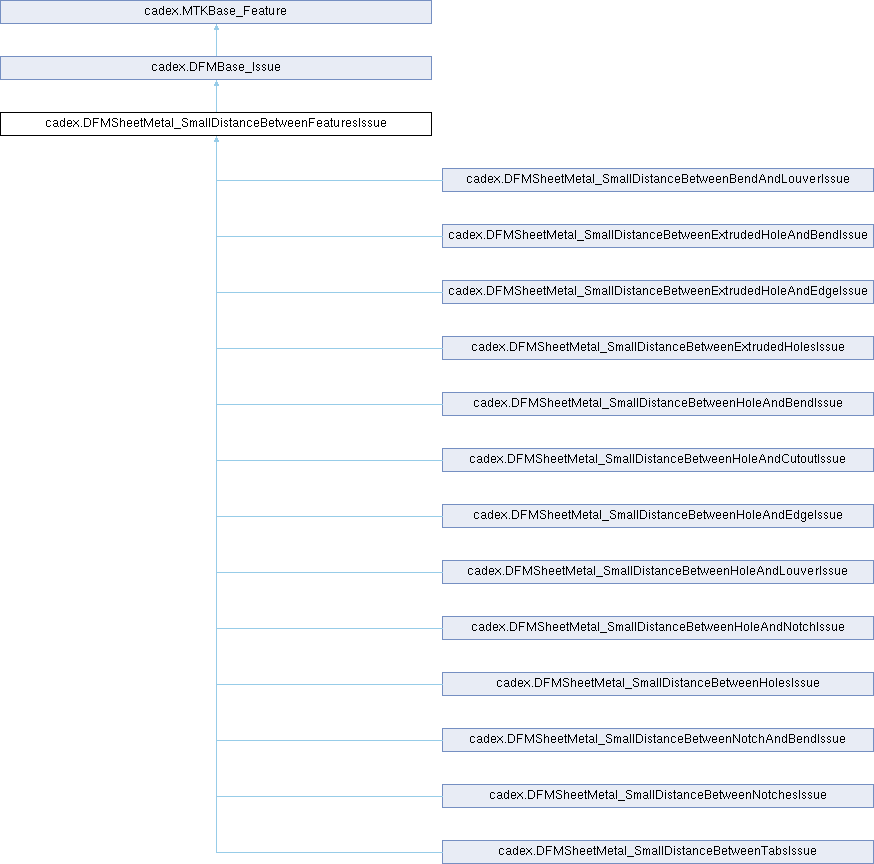

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()
void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)
double	ExpectedMinDistanceBetweenFeatures ()
double	ActualDistanceBetweenFeatures ()
void	SetActualDistanceBetweenFeatures (double theDistance)
double	ActualSheetThickness ()
void	SetActualSheetThickness (double theThickness)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for small distance issues found during sheet metal design analysis.

Contains problematic features, the distance between which fails the following condition:

\[ \large Dist_a \geq T \times Rt \]

\[ \begin{aligned} & \small Dist_a - \text{actual distance between features} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected minimum distance between features to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Member Function Documentation

ActualDistanceBetweenFeatures()

double cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.ActualDistanceBetweenFeatures ( )

inline

Returns the actual distance between features in mm .

See also

SetActualDistanceBetweenFeatures(), FirstFeature(), SecondFeature()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ActualSheetThickness()

double cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.ActualSheetThickness ( )

inline

Returns the actual sheet thickness of analyzed part in mm .

See also

SetActualSheetThickness()

Dispose()

override void cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMinDistanceBetweenFeatures()

double cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.ExpectedMinDistanceBetweenFeatures ( )

inline

Returns expected minimum distance between features in mm .

\[ \large Dist_e = T \times Rt \]

\[ \begin{aligned} & \small Dist_e - \text{expected minimum distance between features} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected minimum distance between features to sheet thickness ratio} \end{aligned} \]

See also

ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio()

double cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ( )

inline

Returns expected minimum distance between features to sheet thickness ratio.

See also

SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio()

SetActualDistanceBetweenFeatures()

void cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.SetActualDistanceBetweenFeatures ( double theDistance )

inline

Sets the actual distance between features in mm. theDistance should be greater than zero.

See also

ActualDistanceBetweenFeatures()

SetActualSheetThickness()

void cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.SetActualSheetThickness ( double theThickness )

inline

Sets the actual sheet thickness in mm. theThickness should be greater than zero.

See also

ActualSheetThickness()

SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio()

void cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ( double theRatio )

inline

Sets expected distance between features to sheet thickness ratio. theRatio should be greater than zero.

See also

ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio()
