Describes the angular dimension measures for an angle given by three points. More...

Inheritance diagram for cadex.Drawing.AngularDimension:

Public Member Functions
	AngularDimension (global::System.IntPtr cPtr, bool cMemoryOwn)

	AngularDimension ()
	Constructor.

	AngularDimension (cadex.Geom.Point2d theAnglePoint, cadex.Geom.Point2d theFirstReferencePoint, cadex.Geom.Point2d theSecondReferencePoint, cadex.Geom.Point2d theDimensionArcPoint, double theMeasurementValue)

cadex.Geom.Point2d	AnglePoint ()
	Returns the angle point.

void	SetAnglePoint (cadex.Geom.Point2d theAnglePoint)
	Sets the angle point.

cadex.Geom.Point2d	FirstReferencePoint ()
	Returns the first reference point.

void	SetFirstReferencePoint (cadex.Geom.Point2d theFirstReferencePoint)
	Sets the first reference point.

cadex.Geom.Point2d	SecondReferencePoint ()
	Returns the second reference point.

void	SetSecondReferencePoint (cadex.Geom.Point2d theSecondReferencePoint)
	Sets the second reference point.

cadex.Geom.Point2d	DimensionArcPoint ()
	Returns the point specified dimension arc position.

void	SetDimensionArcPoint (cadex.Geom.Point2d theDimensionArcPoint)
	Sets the dimension arc position.

Public Member Functions inherited from cadex.Drawing.Dimension
	Dimension (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Drawing.Dimension.ArrowType	FirstArrowType ()
	Returns type of the first arrow of dimension.

void	SetFirstArrowType (cadex.Drawing.Dimension.ArrowType theFirstArrowType)
	Sets type of the first arrow of dimension.

cadex.Drawing.Dimension.ArrowType	SecondArrowType ()
	Returns type of the second arrow of dimension.

void	SetSecondArrowType (cadex.Drawing.Dimension.ArrowType theSecondArrowType)

cadex.Drawing.Dimension.ArrowheadPlacementType	ArrowheadPlacement ()
	Returns the arrowhead placement.

void	SetArrowheadPlacement (cadex.Drawing.Dimension.ArrowheadPlacementType theArrowheadPlacement)
	Sets the arrowhead placement.

bool	AlignTextHorizontally ()
	Returns true if the measurement text is align horizontally.

void	SetAlignTextHorizontally (bool theAlignTextHorizontally)

double	MeasurementValue ()
	Returns the actual measurement.

void	SetMeasurementValue (double theMeasurementValue)
	Sets the actual measurement.

cadex.Drawing.Text	Text ()
	Returns the dimension text.

void	SetText (cadex.Drawing.Text theText)

Public Member Functions inherited from cadex.Drawing.Element
	Element (global::System.IntPtr cPtr, bool cMemoryOwn)

void	SetUuid (System.Guid theUuid)

System.Guid	Uuid ()

void	Accept (cadex.Drawing.ElementVisitor theVisitor)

Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

bool	IsNull ()

ulong	Id ()
	Return unique identifier of public object.

bool	IsEqual (cadex.BaseObject theObj)

override int	GetHashCode ()

override bool	Equals (System.Object o)

Static Public Member Functions
static new bool	CompareType (cadex.BaseObject theObject)

Static Public Member Functions inherited from cadex.Drawing.Dimension
static new bool	CompareType (cadex.BaseObject theObject)

static cadex.Drawing.Dimension	Cast (cadex.Drawing.Element theBase)

Static Public Member Functions inherited from cadex.Drawing.Element
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject has the Element type.

static cadex.Drawing.Element	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.Drawing.Dimension
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.Drawing.Element
override void	Dispose (bool disposing)

Additional Inherited Members
Public Types inherited from cadex.Drawing.Dimension
enum	ArrowType { Undefined = 0 , ClosedFilled = 1 , ClosedBlank = 2 , Closed = 3 , Dot = 4 , ArchitecturalTick = 5 , Oblique = 6 , Open = 7 , OriginIndicator = 8 , OriginIndicator2 = 9 , RightAngle = 10 , Open30 = 11 , DotSmall = 12 , DotBlank = 13 , DotSmallBlank = 14 , Box = 15 , BoxFilled = 16 , DatumTriangle = 17 , DatumTriangleFilled = 18 , Integral = 19 }
	the arrow type. More...

enum	ArrowheadPlacementType { Internal , External }

Detailed Description

Describes the angular dimension measures for an angle given by three points.

AnglePoint specifies the tip of the measured angle. FirstReferencePoint and SecondReferencePoint lie on the extension lines. DimensionArcPoint lies on the dimension line.

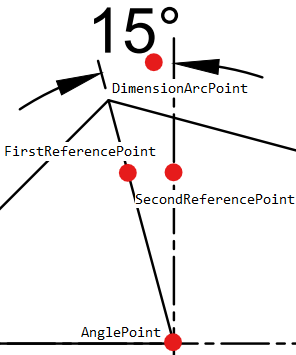

Example of angular dimension

Member Function Documentation

◆ Dispose()

override void cadex.Drawing.AngularDimension.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.BaseObject.
