cadex.Drawing.LinearDimension Class Reference

Linear dimensions with horizontal, vertical, and aligned dimension lines. More...

Inheritance diagram for cadex.Drawing.LinearDimension:

Public Types
enum	RotationType { Horizontal , Vertical , Aligned }
	Represents the rotation of linear dimension. More...
Public Types inherited from cadex.Drawing.Dimension
enum	ArrowType {   Undefined = 0 , ClosedFilled = 1 , ClosedBlank = 2 , Closed = 3 ,   Dot = 4 , ArchitecturalTick = 5 , Oblique = 6 , Open = 7 ,   OriginIndicator = 8 , OriginIndicator2 = 9 , RightAngle = 10 , Open30 = 11 ,   DotSmall = 12 , DotBlank = 13 , DotSmallBlank = 14 , Box = 15 ,   BoxFilled = 16 , DatumTriangle = 17 , DatumTriangleFilled = 18 , Integral = 19 }
	the arrow type. More...
enum	ArrowheadPlacementType { Internal , External }
	Represents the arrow head placement. More...

Public Member Functions
	LinearDimension (global::System.IntPtr cPtr, bool cMemoryOwn)
	LinearDimension ()
	Constructor.
	LinearDimension (cadex.Geom.Point2d theFirstReferencePoint, cadex.Geom.Point2d theSecondReferencePoint, cadex.Geom.Point2d theDimensionLinePoint, double theMeasurementValue, cadex.Drawing.LinearDimension.RotationType theRotation)
	Constructor.
	LinearDimension (cadex.Geom.Point2d theFirstReferencePoint, cadex.Geom.Point2d theSecondReferencePoint, cadex.Geom.Point2d theDimensionLinePoint, double theMeasurementValue)
cadex.Geom.Point2d	FirstReferencePoint ()
	Returns the first reference point.
void	SetFirstReferencePoint (cadex.Geom.Point2d theFirstReferencePoint)
	Sets the first reference point.
cadex.Geom.Point2d	SecondReferencePoint ()
	Returns the second reference point.
void	SetSecondReferencePoint (cadex.Geom.Point2d theSecondReferencePoint)
	Sets the second reference point.
cadex.Geom.Point2d	DimensionLinePoint ()
	Returns the dimension line point.
void	SetDimensionLinePoint (cadex.Geom.Point2d theDimensionLinePoint)
	Sets the dimension line point.
cadex.Drawing.LinearDimension.RotationType	Rotation ()
	Rotation determines the type of linear dimention.
void	SetRotation (cadex.Drawing.LinearDimension.RotationType theRotation)
	Sets the rotation of the dimension.
Public Member Functions inherited from cadex.Drawing.Dimension
	Dimension (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Drawing.Dimension.ArrowType	FirstArrowType ()
	Returns ArrowType.Undefined if IsNull().
void	SetFirstArrowType (cadex.Drawing.Dimension.ArrowType theFirstArrowType)
	Sets type of the first arrow of dimension.
cadex.Drawing.Dimension.ArrowType	SecondArrowType ()
	Returns ArrowType.Undefined if IsNull().
void	SetSecondArrowType (cadex.Drawing.Dimension.ArrowType theSecondArrowType)
cadex.Drawing.Dimension.ArrowheadPlacementType	ArrowheadPlacement ()
	Returns ArrowheadPlacementType.Internal by default or if IsNull().
void	SetArrowheadPlacement (cadex.Drawing.Dimension.ArrowheadPlacementType theArrowheadPlacement)
	Sets the arrowhead placement.
bool	AlignTextHorizontally ()
	Returns true if the measurement text is align horizontally.
void	SetAlignTextHorizontally (bool theAlignTextHorizontally)
double	MeasurementValue ()
	Returns the actual measurement.
void	SetMeasurementValue (double theMeasurementValue)
	Sets the actual measurement.
cadex.Drawing.Text	Text ()
	Returns the dimension text.
void	SetText (cadex.Drawing.Text theText)
Public Member Functions inherited from cadex.Drawing.Element
	Element (global::System.IntPtr cPtr, bool cMemoryOwn)
void	SetUuid (System.Guid theUuid)
System.Guid	Uuid ()
void	Accept (cadex.Drawing.ElementVisitor theVisitor)
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static new bool	CompareType (cadex.BaseObject theObject)
Static Public Member Functions inherited from cadex.Drawing.Dimension
static new bool	CompareType (cadex.BaseObject theObject)
static cadex.Drawing.Dimension	Cast (cadex.Drawing.Element theBase)
Static Public Member Functions inherited from cadex.Drawing.Element
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject has the Element type.
static cadex.Drawing.Element	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Linear dimensions with horizontal, vertical, and aligned dimension lines.

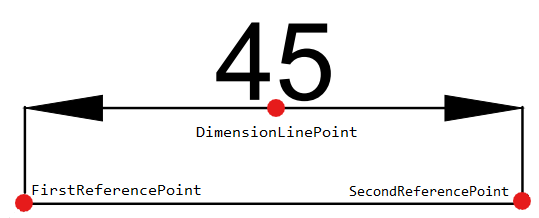

Horizontal linear dimension describes the distance between two points along OX axis.

Example of horizontal linear dimension

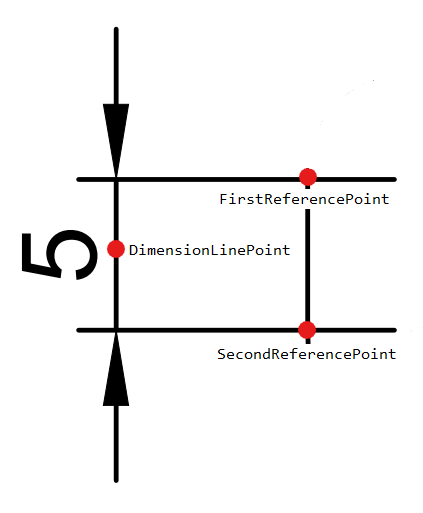

Vertical linear dimension describes the distance between two points along OY axis.

Example of vertical linear dimension

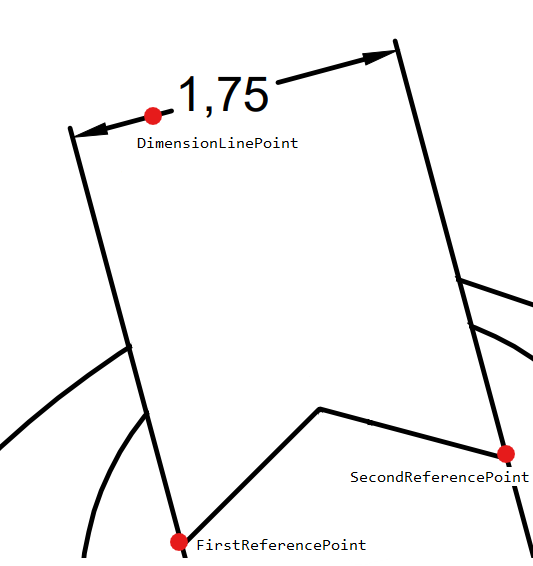

Aligned linear dimension describes the distance between two points.

Example of aligned linear dimension

FirstReferencePoint and SecondReferencePoint refer to points on the drawing geometry that are being measured. Two parallel extension lines come out of these points. DimensionLinePoint defines the dimension line, which is perpendicular to both extension lines.

Member Enumeration Documentation

RotationType

enum cadex.Drawing.LinearDimension.RotationType

Represents the rotation of linear dimension.

Constructor & Destructor Documentation

LinearDimension() [1/2]

cadex.Drawing.LinearDimension.LinearDimension ( )

inline

Constructor.

LinearDimension() [2/2]

cadex.Drawing.LinearDimension.LinearDimension ( cadex.Geom.Point2d theFirstReferencePoint, cadex.Geom.Point2d theSecondReferencePoint, cadex.Geom.Point2d theDimensionLinePoint, double theMeasurementValue, cadex.Drawing.LinearDimension.RotationType theRotation )

inline

Constructor.

Member Function Documentation

DimensionLinePoint()

cadex.Geom.Point2d cadex.Drawing.LinearDimension.DimensionLinePoint ( )

inline

Returns the dimension line point.

Dispose()

override void cadex.Drawing.LinearDimension.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.Drawing.Dimension.

FirstReferencePoint()

cadex.Geom.Point2d cadex.Drawing.LinearDimension.FirstReferencePoint ( )

inline

Returns the first reference point.

Rotation()

cadex.Drawing.LinearDimension.RotationType cadex.Drawing.LinearDimension.Rotation ( )

inline

Rotation determines the type of linear dimention.

Returns the rotation of the dimension.

SecondReferencePoint()

cadex.Geom.Point2d cadex.Drawing.LinearDimension.SecondReferencePoint ( )

inline

Returns the second reference point.

SetDimensionLinePoint()

void cadex.Drawing.LinearDimension.SetDimensionLinePoint ( cadex.Geom.Point2d theDimensionLinePoint )

inline

Sets the dimension line point.

SetFirstReferencePoint()

void cadex.Drawing.LinearDimension.SetFirstReferencePoint ( cadex.Geom.Point2d theFirstReferencePoint )

inline

Sets the first reference point.

SetRotation()

void cadex.Drawing.LinearDimension.SetRotation ( cadex.Drawing.LinearDimension.RotationType theRotation )

inline

Sets the rotation of the dimension.

SetSecondReferencePoint()

void cadex.Drawing.LinearDimension.SetSecondReferencePoint ( cadex.Geom.Point2d theSecondReferencePoint )

inline

Sets the second reference point.
