Describes radial dimension measures of arcs and circles. More...

Inheritance diagram for cadex.Drawing.RadialDimension:

Public Member Functions
	RadialDimension (global::System.IntPtr cPtr, bool cMemoryOwn)

	RadialDimension ()
	Constructor.

	RadialDimension (cadex.Geom.Point2d theCenterPoint, cadex.Geom.Point2d theChordPoint, cadex.Geom.Point2d theDimensionEndPoint, double theMeasurementValue)

cadex.Geom.Point2d	CenterPoint ()
	Returns the central point of the radial dimension.

void	SetCenterPoint (cadex.Geom.Point2d theCenterPoint)
	Sets the central point of the radial dimension.

cadex.Geom.Point2d	ChordPoint ()
	Returns the chord point of the radial dimension.

void	SetChordPoint (cadex.Geom.Point2d theChordPoint)
	Sets the chord point of the radial dimension.

cadex.Geom.Point2d	DimensionEndPoint ()
	Returns the end of the dimension line.

void	SetDimensionEndPoint (cadex.Geom.Point2d theDimensionEndPoint)
	Sets the end of the dimension line.

bool	StartsFromCenter ()
	Returns true if the radius dimension line starts from the center of the measured entity.

void	SetStartsFromCenter (bool theStartsFromCenter)

Public Member Functions inherited from cadex.Drawing.Dimension
	Dimension (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Drawing.Dimension.ArrowType	FirstArrowType ()
	Returns type of the first arrow of dimension.

void	SetFirstArrowType (cadex.Drawing.Dimension.ArrowType theFirstArrowType)
	Sets type of the first arrow of dimension.

cadex.Drawing.Dimension.ArrowType	SecondArrowType ()
	Returns type of the second arrow of dimension.

void	SetSecondArrowType (cadex.Drawing.Dimension.ArrowType theSecondArrowType)

cadex.Drawing.Dimension.ArrowheadPlacementType	ArrowheadPlacement ()
	Returns the arrowhead placement.

void	SetArrowheadPlacement (cadex.Drawing.Dimension.ArrowheadPlacementType theArrowheadPlacement)
	Sets the arrowhead placement.

bool	AlignTextHorizontally ()
	Returns true if the measurement text is align horizontally.

void	SetAlignTextHorizontally (bool theAlignTextHorizontally)

double	MeasurementValue ()
	Returns the actual measurement.

void	SetMeasurementValue (double theMeasurementValue)
	Sets the actual measurement.

cadex.Drawing.Text	Text ()
	Returns the dimension text.

void	SetText (cadex.Drawing.Text theText)

Public Member Functions inherited from cadex.Drawing.Element
	Element (global::System.IntPtr cPtr, bool cMemoryOwn)

void	SetUuid (System.Guid theUuid)

System.Guid	Uuid ()

void	Accept (cadex.Drawing.ElementVisitor theVisitor)

Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

bool	IsNull ()

ulong	Id ()
	Return unique identifier of public object.

bool	IsEqual (cadex.BaseObject theObj)

override int	GetHashCode ()

override bool	Equals (System.Object o)

Static Public Member Functions
static new bool	CompareType (cadex.BaseObject theObject)

Static Public Member Functions inherited from cadex.Drawing.Dimension
static new bool	CompareType (cadex.BaseObject theObject)

static cadex.Drawing.Dimension	Cast (cadex.Drawing.Element theBase)

Static Public Member Functions inherited from cadex.Drawing.Element
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject has the Element type.

static cadex.Drawing.Element	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Additional Inherited Members
Public Types inherited from cadex.Drawing.Dimension
enum	ArrowType { Undefined = 0 , ClosedFilled = 1 , ClosedBlank = 2 , Closed = 3 , Dot = 4 , ArchitecturalTick = 5 , Oblique = 6 , Open = 7 , OriginIndicator = 8 , OriginIndicator2 = 9 , RightAngle = 10 , Open30 = 11 , DotSmall = 12 , DotBlank = 13 , DotSmallBlank = 14 , Box = 15 , BoxFilled = 16 , DatumTriangle = 17 , DatumTriangleFilled = 18 , Integral = 19 }
	the arrow type. More...

enum	ArrowheadPlacementType { Internal , External }

Detailed Description

Describes radial dimension measures of arcs and circles.

CenterPoint is the center of the circle arc, which the dimension describes. ChordPoint lies on the said circle arc. DimensionEndPoint defines the length of the leader of this dimension.

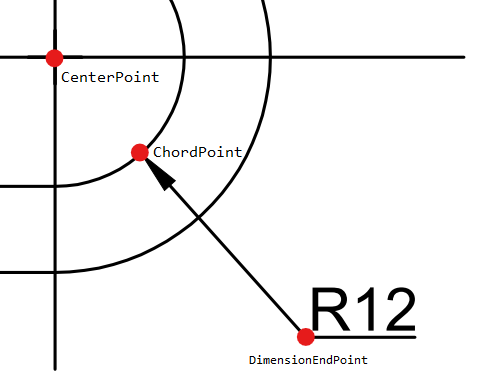

Example of radial dimension

Example of radial dimension starts from center

Member Function Documentation

◆ Dispose()

override void cadex.Drawing.RadialDimension.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.Drawing.Dimension.
