cadex.MTKBase_Hole Class Reference

Describes a base class for hole features in concrete processes. More...

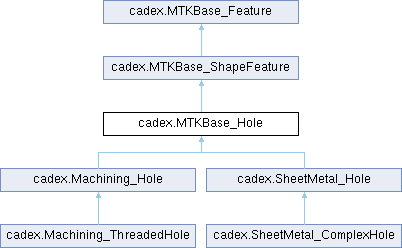

Inheritance diagram for cadex.MTKBase_Hole:

Public Member Functions
	MTKBase_Hole (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_Hole ()
	Constructor.
	MTKBase_Hole (double theRadius, double theDepth)
	Creates a hole feature from radius and depth.
	MTKBase_Hole (double theRadius, double theDepth, cadex.Geom.Axis3d theAxis)
	Creates a hole feature from radius, depth and axis.
double	Radius ()
	Returns hole radius in mm .
void	SetRadius (double theRadius)
	Sets radius for hole in mm .
double	Depth ()
	Returns hole depth in mm .
void	SetDepth (double theDepth)
	Sets depth for hole in mm .
bool	HasAxis ()
	Returns true if axis is determined for hole.
cadex.Geom.Axis3d	Axis ()
	Returns hole axis.
void	SetAxis (cadex.Geom.Axis3d theAxis)
	Sets axis for hole.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a hole.
static new cadex.MTKBase_Hole	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for hole features in concrete processes.

Holes (blind and through)

Holes have the following basic parameters: radius in mm, depth in mm and axis.

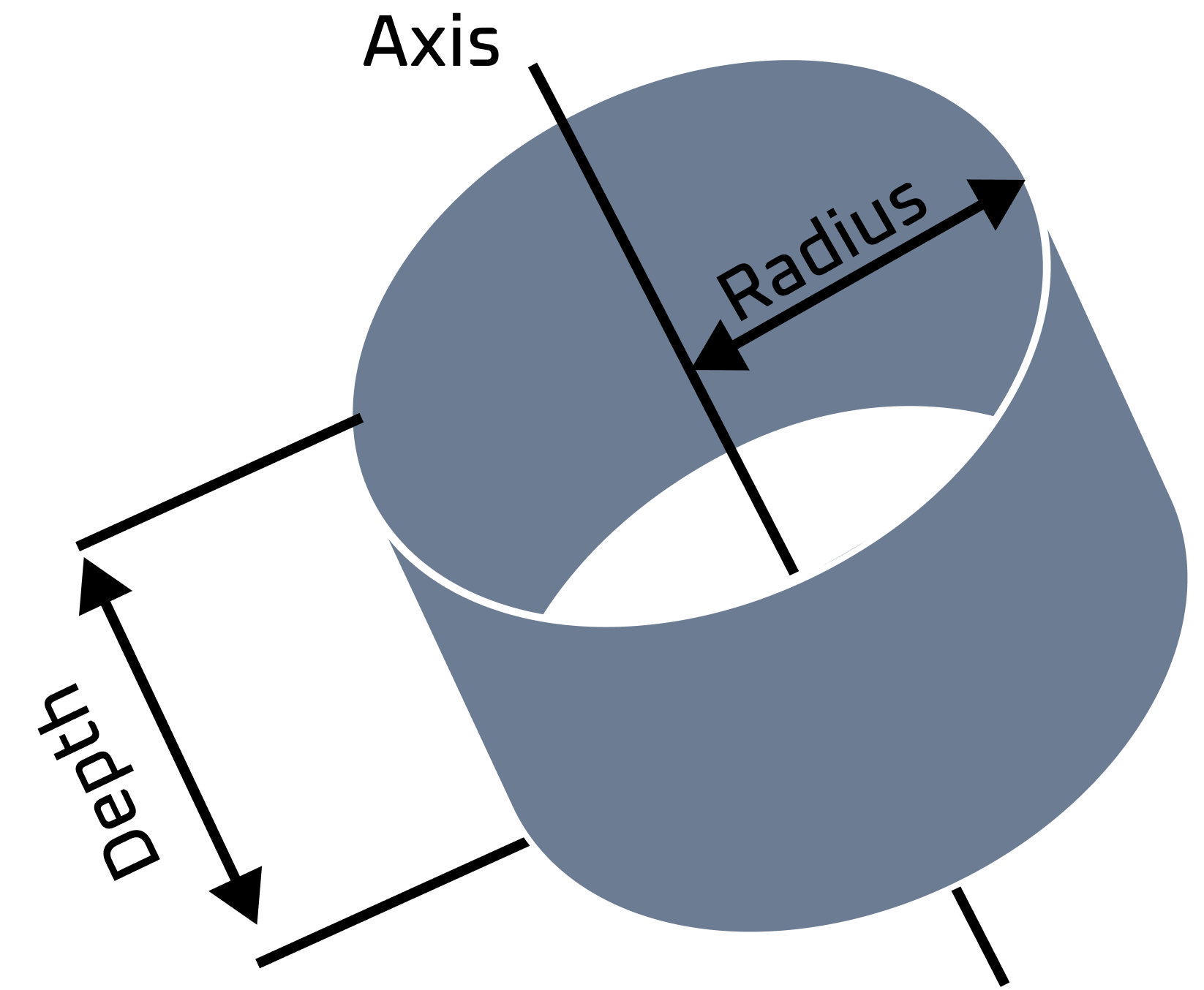

Hole parameters

Constructor & Destructor Documentation

MTKBase_Hole() [1/3]

cadex.MTKBase_Hole.MTKBase_Hole ( )

inline

Constructor.

MTKBase_Hole() [2/3]

cadex.MTKBase_Hole.MTKBase_Hole ( double theRadius, double theDepth )

inline

Creates a hole feature from radius and depth.

Constructor.

MTKBase_Hole() [3/3]

cadex.MTKBase_Hole.MTKBase_Hole ( double theRadius, double theDepth, cadex.Geom.Axis3d theAxis )

inline

Creates a hole feature from radius, depth and axis.

Constructor.

Member Function Documentation

Axis()

cadex.Geom.Axis3d cadex.MTKBase_Hole.Axis ( )

inline

Returns hole axis.

See also

HasAxis(), SetAxis()

Examples

machining/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/Program.cs.

CompareType()

static new bool cadex.MTKBase_Hole.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a hole.

Depth()

double cadex.MTKBase_Hole.Depth ( )

inline

Returns hole depth in mm .

See also

SetDepth()

Examples

machining/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.MTKBase_Hole.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

HasAxis()

bool cadex.MTKBase_Hole.HasAxis ( )

inline

Returns true if axis is determined for hole.

See also

Axis(), SetAxis()

Radius()

double cadex.MTKBase_Hole.Radius ( )

inline

Returns hole radius in mm .

See also

SetRadius()

Examples

machining/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/Program.cs.

SetAxis()

void cadex.MTKBase_Hole.SetAxis ( cadex.Geom.Axis3d theAxis )

inline

Sets axis for hole.

See also

HasAxis(), Axis()

SetDepth()

void cadex.MTKBase_Hole.SetDepth ( double theDepth )

inline

Sets depth for hole in mm .

The value must be more than zero.

See also

Depth()

SetRadius()

void cadex.MTKBase_Hole.SetRadius ( double theRadius )

inline

Sets radius for hole in mm .

The value must be more than zero.

See also

Radius()
