cadex.Machining_Countersink Class Reference

Describes a machining countersink. More...

Inheritance diagram for cadex.Machining_Countersink:

Public Member Functions
	Machining_Countersink (global::System.IntPtr cPtr, bool cMemoryOwn)
	Machining_Countersink ()
	Constructor.
	Machining_Countersink (double theRadius, double theDepth)
	Creates a machining countersink from radius and depth.
	Machining_Countersink (double theRadius, double theDepth, cadex.Geom.Axis3d theAxis)
	Creates a machining countersink from radius, depth and axis.
double	Radius ()
	Returns countersink radius in mm .
void	SetRadius (double theRadius)
	Sets radius for countersink in mm.
double	Depth ()
	Returns countersink depth in mm .
void	SetDepth (double theDepth)
	Sets depth for countersink in mm.
bool	HasAxis ()
	Returns true if axis is determined for countersink.
cadex.Geom.Axis3d	Axis ()
	Returns countersink axis.
void	SetAxis (cadex.Geom.Axis3d theAxis)
	Sets axis for countersink.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining countersink.
static new cadex.Machining_Countersink	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a machining countersink.

A conical hole cut into a manufactured object, or the cutter used to cut such a hole. A common use is to allow the head of a countersunk bolt, screw or rivet, when placed in the hole, to sit flush with or below the surface of the surrounding material.

Shape() method returns ModelData.Shell for this class.

Countersink

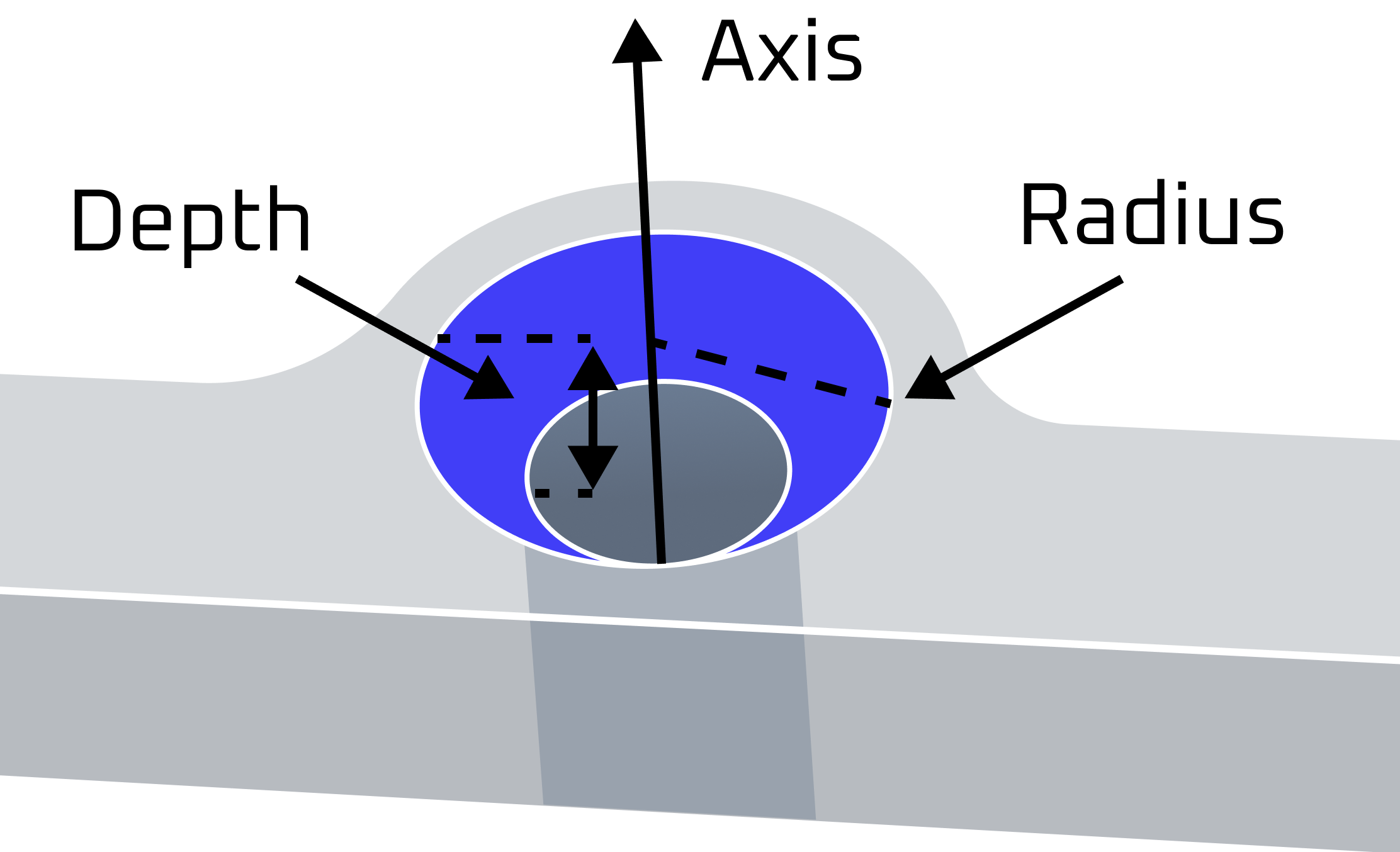

Countersink have the following basic parameters: radius in mm, depth in mm and axis.

Countersink parameters

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_Countersink() [1/3]

cadex.Machining_Countersink.Machining_Countersink ( )

inline

Constructor.

Machining_Countersink() [2/3]

cadex.Machining_Countersink.Machining_Countersink ( double theRadius, double theDepth )

inline

Creates a machining countersink from radius and depth.

Constructor.

Machining_Countersink() [3/3]

cadex.Machining_Countersink.Machining_Countersink ( double theRadius, double theDepth, cadex.Geom.Axis3d theAxis )

inline

Creates a machining countersink from radius, depth and axis.

Constructor.

Member Function Documentation

Axis()

cadex.Geom.Axis3d cadex.Machining_Countersink.Axis ( )

inline

Returns countersink axis.

See also

HasAxis(), SetAxis()

Examples

machining/feature_recognizer/Program.cs.

CompareType()

static new bool cadex.Machining_Countersink.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining countersink.

Examples

machining/feature_recognizer/Program.cs.

Depth()

double cadex.Machining_Countersink.Depth ( )

inline

Returns countersink depth in mm .

See also

SetDepth()

Examples

machining/feature_recognizer/Program.cs.

Dispose()

override void cadex.Machining_Countersink.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

HasAxis()

bool cadex.Machining_Countersink.HasAxis ( )

inline

Returns true if axis is determined for countersink.

See also

Axis(), SetAxis()

Radius()

double cadex.Machining_Countersink.Radius ( )

inline

Returns countersink radius in mm .

See also

SetRadius()

Examples

machining/feature_recognizer/Program.cs.

SetAxis()

void cadex.Machining_Countersink.SetAxis ( cadex.Geom.Axis3d theAxis )

inline

Sets axis for countersink.

See also

HasAxis(), Axis()

SetDepth()

void cadex.Machining_Countersink.SetDepth ( double theDepth )

inline

Sets depth for countersink in mm.

The value must be more than zero.

See also

Depth()

SetRadius()

void cadex.Machining_Countersink.SetRadius ( double theRadius )

inline

Sets radius for countersink in mm.

The value must be more than zero.

See also

Radius()
