cadex.Machining_Thread Class Reference

Describes a machining thread feature. More...

Inheritance diagram for cadex.Machining_Thread:

Public Member Functions
	Machining_Thread (global::System.IntPtr cPtr, bool cMemoryOwn)
	Machining_Thread (double theMajorDiameter, double theMinorDiameter, double thePitch, double theLength, cadex.Geom.Axis1d theAxis)
	Constructor.
double	MajorDiameter ()
	Returns the thread major diameter in mm.
double	MinorDiameter ()
	Returns the thread minor diameter in mm.
double	Pitch ()
	Returns the thread pitch in mm.
double	Length ()
	Returns the thread length in mm.
cadex.Geom.Axis1d	Axis ()
	Returns the thread axis.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining thread.
static new cadex.Machining_Thread	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a machining thread feature.

An external thread is a helical ridge formed on the outer surface of a cylindrical feature. Common externally threaded parts include bolts, screws, studs, threaded rods, eye bolts, anchor bolts, pipe fittings and adapters. The helical thread is designed to mate with internal threaded components – such as tapped holes, nuts, and thread inserts – providing secure and reliable mechanical fastening.

Shape() method returns ModelData.Shell for this class.

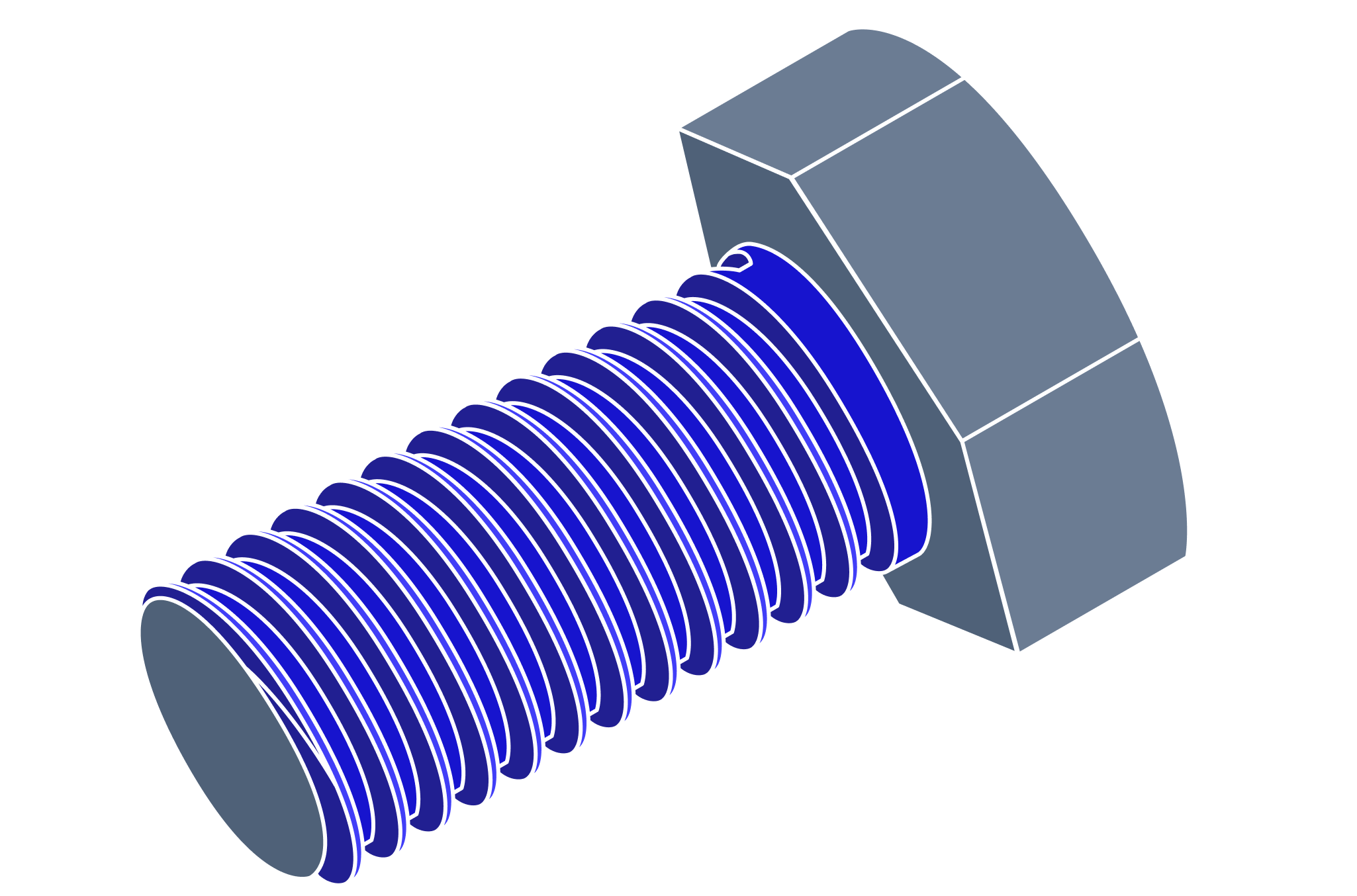

Thread

Thread has the following basic parameters: minor diameter in mm, major diameter in mm, length in mm, pitch in mm.

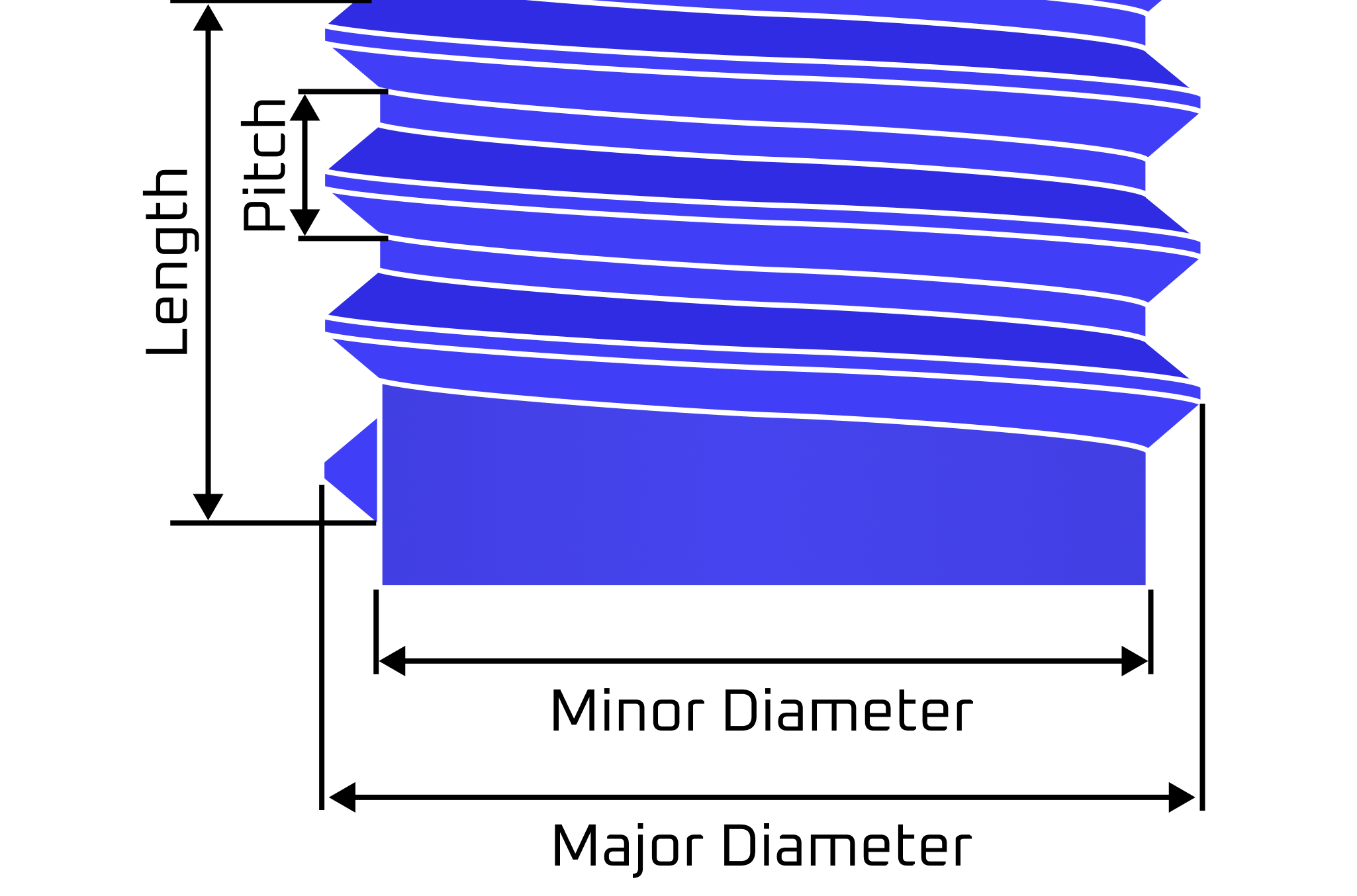

Thread parameters

Examples

machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

Machining_Thread()

cadex.Machining_Thread.Machining_Thread ( double theMajorDiameter, double theMinorDiameter, double thePitch, double theLength, cadex.Geom.Axis1d theAxis )

inline

Constructor.

Creates a machining thread from the major diameter, minor diameter, pitch, length and the axis.

Member Function Documentation

Axis()

cadex.Geom.Axis1d cadex.Machining_Thread.Axis ( )

inline

Returns the thread axis.

Examples

machining/feature_recognizer/Program.cs.

CompareType()

static new bool cadex.Machining_Thread.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining thread.

Examples

machining/feature_recognizer/Program.cs.

Dispose()

override void cadex.Machining_Thread.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Feature.

Length()

double cadex.Machining_Thread.Length ( )

inline

Returns the thread length in mm.

Examples

machining/feature_recognizer/Program.cs.

MajorDiameter()

double cadex.Machining_Thread.MajorDiameter ( )

inline

Returns the thread major diameter in mm.

Examples

machining/feature_recognizer/Program.cs.

MinorDiameter()

double cadex.Machining_Thread.MinorDiameter ( )

inline

Returns the thread minor diameter in mm.

Examples

machining/feature_recognizer/Program.cs.

Pitch()

double cadex.Machining_Thread.Pitch ( )

inline

Returns the thread pitch in mm.

Examples

machining/feature_recognizer/Program.cs.
