Describes a turning groove. More...

Inheritance diagram for cadex.Machining_TurningGroove:

Public Member Functions
	Machining_TurningGroove (global::System.IntPtr cPtr, bool cMemoryOwn)

	Machining_TurningGroove (double theRadius, double theDepth, double theWidth, cadex.Machining_TurningGrooveType theType)
	Creates the turning groove from the radius, the depth, the width and the machining groove type.

cadex.Machining_TurningGrooveType	Type ()
	Returns the turning groove type.

void	SetType (cadex.Machining_TurningGrooveType theType)
	Sets the type for turning groove.

double	Radius ()
	Returns the turning groove radius in mm .

void	SetRadius (double theRadius)
	Sets the turning groove radius in mm .

Public Member Functions inherited from cadex.Machining_Groove
	Machining_Groove (global::System.IntPtr cPtr, bool cMemoryOwn)

	Machining_Groove ()
	Constructor.

	Machining_Groove (double theDepth, double theWidth)
	Creates the machining groove from the depth and width.

double	Depth ()
	Returns the groove depth in mm .

void	SetDepth (double theDepth)
	Sets the groove depth in mm .

double	Width ()
	Returns the groove width in mm .

void	SetWidth (double theWidth)
	Sets the groove width in mm .

cadex.ModelData.Shape	Sidewalls ()
	Returns the shape containing the groove sidewalls.

void	SetSidewalls (cadex.ModelData.Shape theSidewalls)
	Sets the shape for groove sidewalls.

cadex.ModelData.Shape	Bottom ()
	Returns groove bottom shape.

void	SetBottom (cadex.ModelData.Shape theBottom)
	Sets the shape for the groove bottom.

Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.

cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.

void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining turning groove.

static new cadex.Machining_TurningGroove	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.Machining_Groove
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a machining groove.

static new cadex.Machining_Groove	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.

static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a turning groove.

A turning groove is a narrow linear channel or cut made in a material related to turning (lathe) machining.

Shape() method returns ModelData.Shell for this class.

Turning Groove

Turning Groove has the following basic parameters: radius in mm, width in mm, depth in mm. The parameters can be seen below in the table with turning groove types.

Turning Groove types

MTK supports the groove types (Machining_TurningGrooveType enumeration) defined in the following table:

Outer Diameter (OD)	The groove machined on the external surface of a part.
Inner Diameter (ID)	The groove machined on the internal surface of a part.

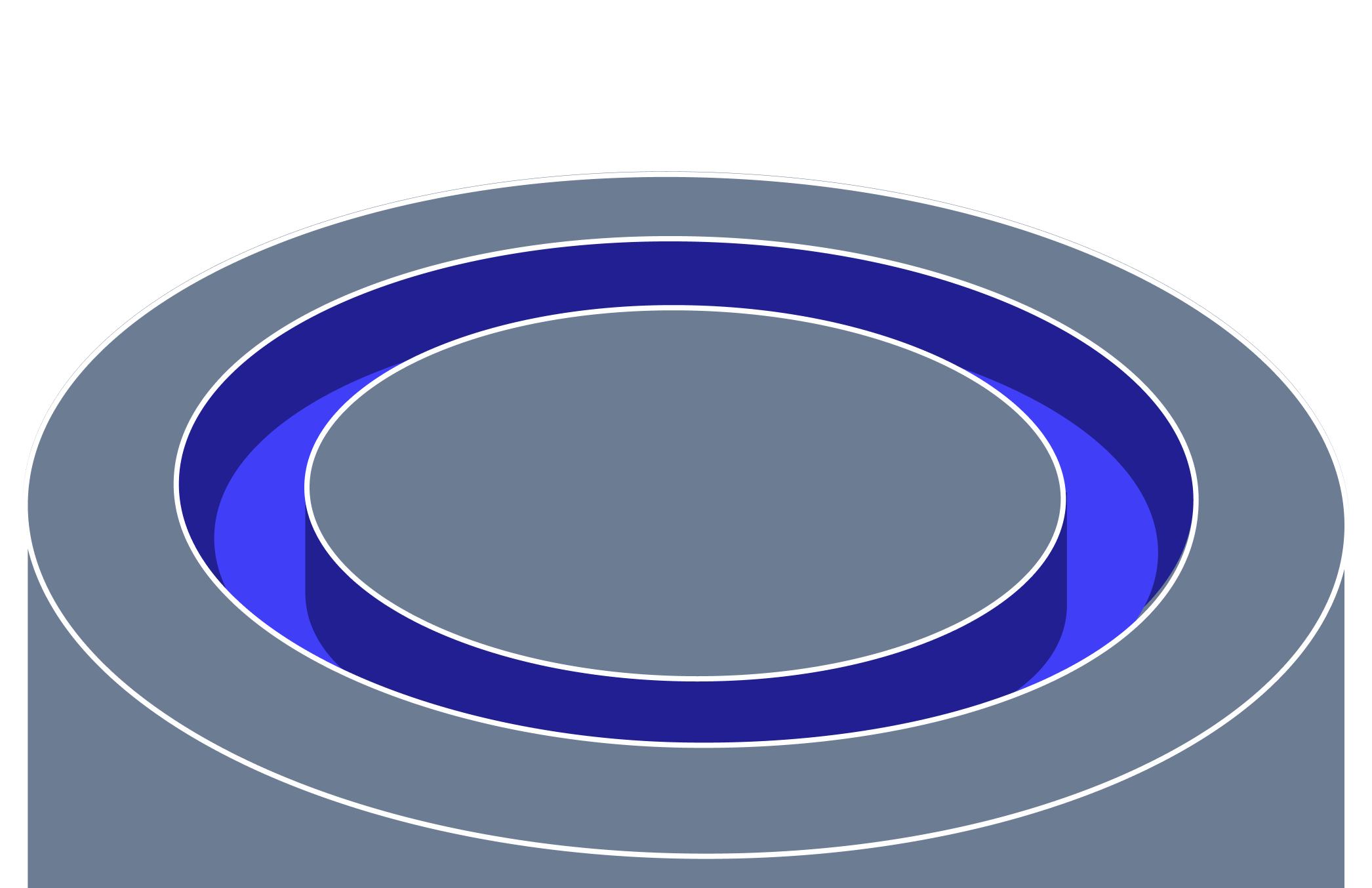

End Face	The groove machined on the front or back end face of a part.

The Turning Groove type is returned by Type().

Examples: machining/feature_recognizer/Program.cs, and machining/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ Machining_TurningGroove()

cadex.Machining_TurningGroove.Machining_TurningGroove	(	double	theRadius,
		double	theDepth,
		double	theWidth,
		cadex.Machining_TurningGrooveType	theType )

inline

Creates the turning groove from the radius, the depth, the width and the machining groove type.

Constructor.

Member Function Documentation

◆ CompareType()

static new bool cadex.Machining_TurningGroove.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a machining turning groove.

Examples: machining/feature_recognizer/Program.cs.

◆ Dispose()

override void cadex.Machining_TurningGroove.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.Machining_Groove.

◆ Radius()

double cadex.Machining_TurningGroove.Radius ( )

inline

Returns the turning groove radius in mm .

See also: SetRadius()

Examples: machining/feature_recognizer/Program.cs.

◆ SetRadius()

void cadex.Machining_TurningGroove.SetRadius ( double theRadius )

inline

Sets the turning groove radius in mm .

The value must be greater than zero.

See also: Radius()

◆ SetType()

void cadex.Machining_TurningGroove.SetType ( cadex.Machining_TurningGrooveType theType )

inline

Sets the type for turning groove.

See also: Type(); Machining_TurningGrooveType

◆ Type()

cadex.Machining_TurningGrooveType cadex.Machining_TurningGroove.Type ( )

inline

Returns the turning groove type.

See also: SetType(); Machining_TurningGrooveType
