cadex.SheetMetal_FormingFeature Class Reference

Describes a forming in sheet metal. More...

Inheritance diagram for cadex.SheetMetal_FormingFeature:

Public Member Functions
	SheetMetal_FormingFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_FormingFeature ()
	Constructor.
	SheetMetal_FormingFeature (double theLength, double theDepth)
	Creates a bend with specified radius, angle and width.
double	Length ()
void	SetLength (double theLength)
double	Depth ()
	Returns the forming feature depth in mm .
void	SetDepth (double theDepth)
	Sets depth for forming feature in mm.
bool	HasAxis ()
	Returns true if z-axis is determined for forming feature.
cadex.Geom.Axis1d	Axis ()
	Returns z-axis of a forming feature - the axis along which the depth is determined.
void	SetAxis (cadex.Geom.Axis1d theAxis)
	Sets z-axis for forming feature.
cadex.ModelData.Shape	Sidewalls ()
void	SetSidewalls (cadex.ModelData.Shape theSidewalls)
	Sets the shape for bore sidewalls.
cadex.ModelData.Shape	Bottom ()
	Returns the bottom shape of the bore.
void	SetBottom (cadex.ModelData.Shape theBottom)
	Sets the shape for the bore bottom.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a forming feature.
static new cadex.SheetMetal_FormingFeature	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a forming in sheet metal.

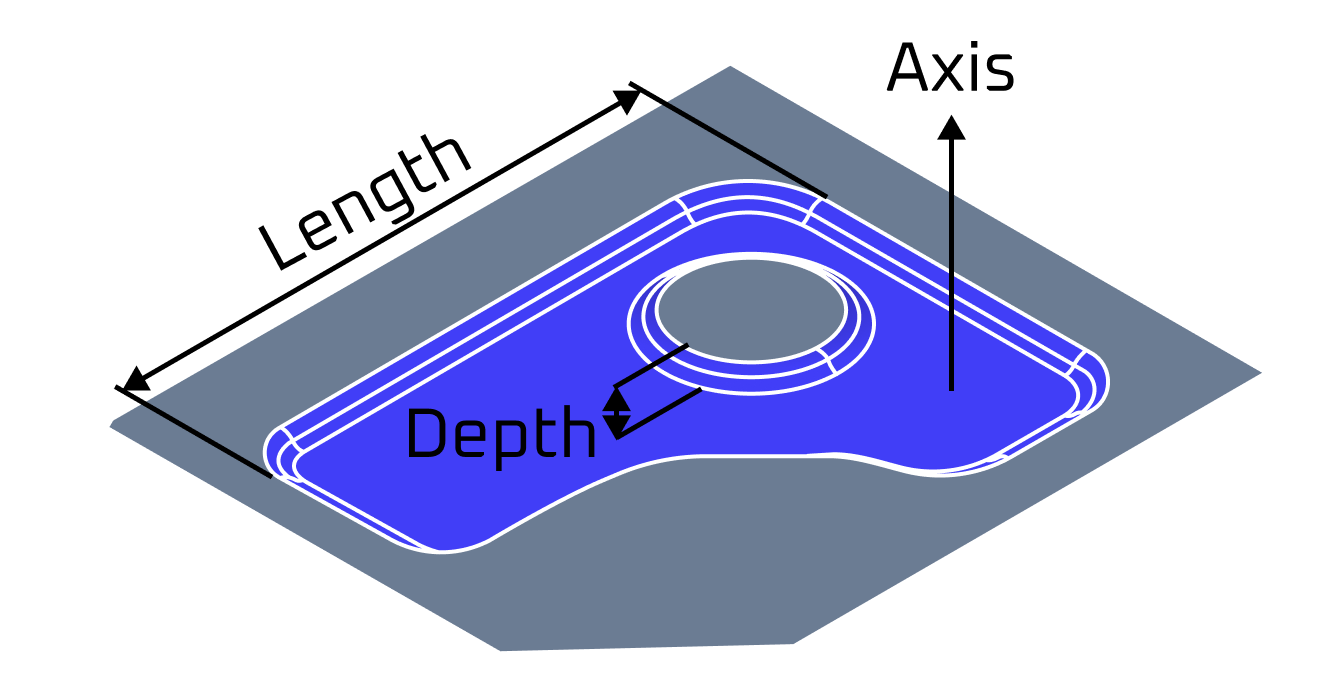

Forming plastically deforms sheet metal to create 3D features.

Forming

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_FormingFeature() [1/2]

cadex.SheetMetal_FormingFeature.SheetMetal_FormingFeature ( )

inline

Constructor.

SheetMetal_FormingFeature() [2/2]

cadex.SheetMetal_FormingFeature.SheetMetal_FormingFeature ( double theLength, double theDepth )

inline

Creates a bend with specified radius, angle and width.

Constructor.

Member Function Documentation

Axis()

cadex.Geom.Axis1d cadex.SheetMetal_FormingFeature.Axis ( )

inline

Returns z-axis of a forming feature - the axis along which the depth is determined.

See also

HasAxis(), SetAxis()

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Bottom()

cadex.ModelData.Shape cadex.SheetMetal_FormingFeature.Bottom ( )

inline

Returns the bottom shape of the bore.

The shape can be a single face or shell. Returns a null shape if the bore has no bottom.

See also

SetBottom()

CompareType()

static new bool cadex.SheetMetal_FormingFeature.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a forming feature.

Examples

sheet_metal/feature_recognizer/Program.cs.

Depth()

double cadex.SheetMetal_FormingFeature.Depth ( )

inline

Returns the forming feature depth in mm .

See also

SetDepth()

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_FormingFeature.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

HasAxis()

bool cadex.SheetMetal_FormingFeature.HasAxis ( )

inline

Returns true if z-axis is determined for forming feature.

See also

Axis(), SetAxis()

SetAxis()

void cadex.SheetMetal_FormingFeature.SetAxis ( cadex.Geom.Axis1d theAxis )

inline

Sets z-axis for forming feature.

See also

HasAxis(), Axis()

SetBottom()

void cadex.SheetMetal_FormingFeature.SetBottom ( cadex.ModelData.Shape theBottom )

inline

Sets the shape for the bore bottom.

The shape can be a single face or shell.

See also

Bottom()

SetDepth()

void cadex.SheetMetal_FormingFeature.SetDepth ( double theDepth )

inline

Sets depth for forming feature in mm.

The value must be more than zero.

See also

Depth()

SetSidewalls()

void cadex.SheetMetal_FormingFeature.SetSidewalls ( cadex.ModelData.Shape theSidewalls )

inline

Sets the shape for bore sidewalls.

The shape can be a single face or shell.

See also

Sidewalls()
