cadex.SheetMetal_Louver Class Reference

Describes a sheet metal louver feature. More...

Inheritance diagram for cadex.SheetMetal_Louver:

Public Member Functions
	SheetMetal_Louver (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Louver ()
	Constructor.
	SheetMetal_Louver (double theDepth)
	Creates louver with specified depth.
double	Depth ()
	Returns the louver depth in mm .
void	SetDepth (double theDepth)
	Sets louver depth in mm .
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a louver.
static new cadex.SheetMetal_Louver	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal louver feature.

A louver in sheet metal design is typically a formed feature made with a punch press incorporating a top and bottom die. Louvers are used in a variety of industry applications that require airflow; electrical enclosures, HVAC, and food service equipment.

Shape() method returns ModelData::Shell for this class.

\image html sm_feature_louver.png "Louvers" width=50%

Louvers have the following basic parameter: depth in \a mm.

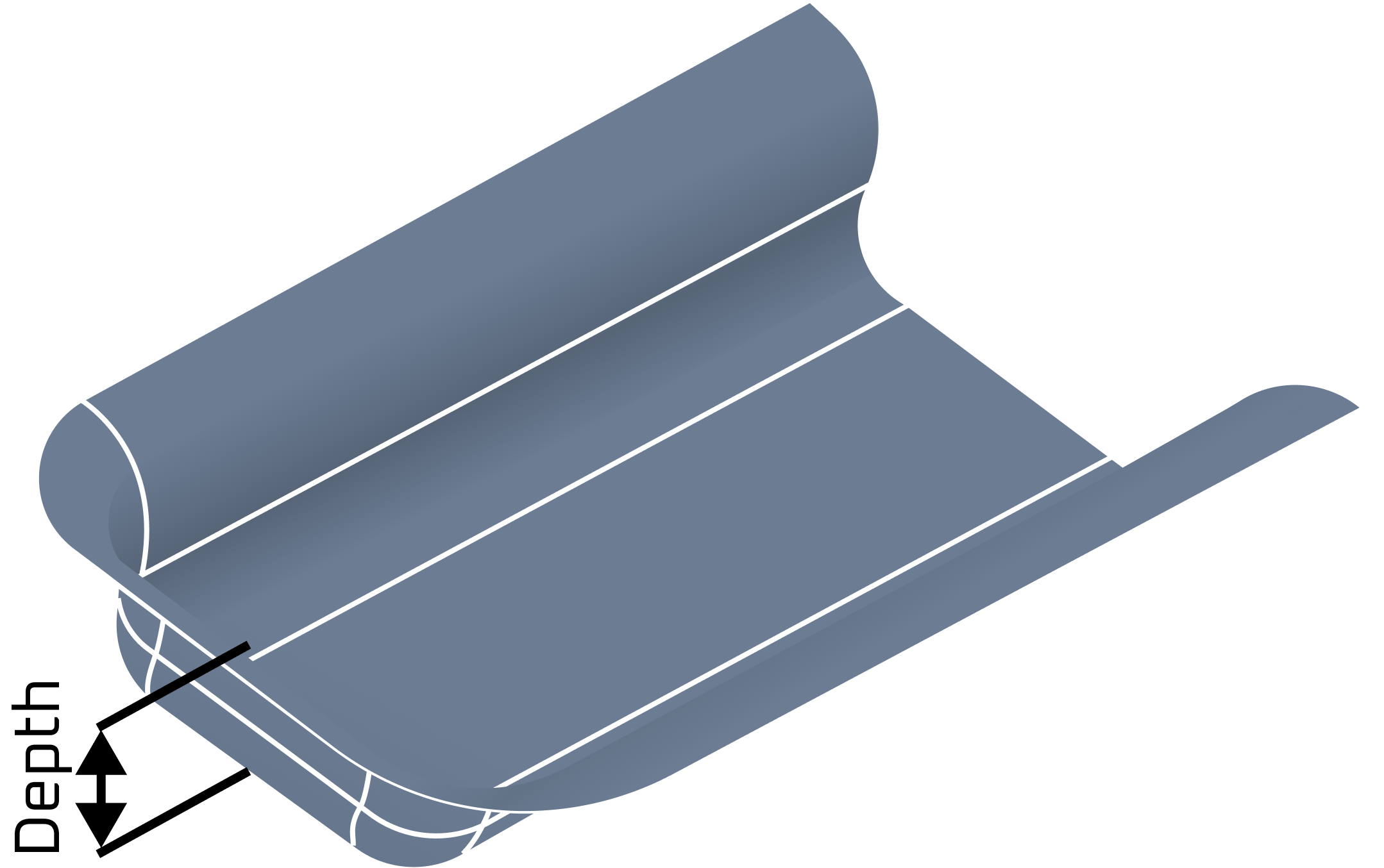

\image html sm_feature_louver_parameters.png "Louver parameter" width=50%

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Louver() [1/2]

cadex.SheetMetal_Louver.SheetMetal_Louver ( )

inline

Constructor.

SheetMetal_Louver() [2/2]

cadex.SheetMetal_Louver.SheetMetal_Louver ( double theDepth )

inline

Creates louver with specified depth.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Louver.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a louver.

Examples

sheet_metal/feature_recognizer/Program.cs.

Depth()

double cadex.SheetMetal_Louver.Depth ( )

inline

Returns the louver depth in mm .

See also

SetDepth()

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Louver.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

SetDepth()

void cadex.SheetMetal_Louver.SetDepth ( double theDepth )

inline

Sets louver depth in mm .

The value must be more than zero, otherwise nothing happens.

See also

Depth()
