DiametricDimension Dimension.hxx cadex/Drawing/Dimension.hxx. More...
Public Member Functions | |
| __init__ (self, *args) | |
| Constructor. | |
| FirstChordPoint (self) | |
| Returns the first chord point. | |
| SetFirstChordPoint (self, theFirstChordPoint) | |
| SecondChordPoint (self) | |
| Returns the second chord point. | |
| SetSecondChordPoint (self, theSecondChordPoint) | |
| DimensionEndPoint (self) | |
| Returns the dimension end point. | |
| SetDimensionEndPoint (self, theDimensionEndPoint) | |
| StartsFromCenter (self) | |
| Returns true if the dimension line passes through the center of measured entity. | |
| SetStartsFromCenter (self, theStartsFromCenter) | |
 Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Dimension | |
| SetFirstArrowType (self, theFirstArrowType) | |
| Sets type of the first arrow of dimension. | |
| SecondArrowType (self) | |
| Returns type of the second arrow of dimension. | |
| SetSecondArrowType (self, theSecondArrowType) | |
| ArrowheadPlacement (self) | |
| Returns the arrowhead placement. | |
| SetArrowheadPlacement (self, theArrowheadPlacement) | |
| Sets the arrowhead placement. | |
| AlignTextHorizontally (self) | |
| Returns true if the measurement text is align horizontally. | |
| SetAlignTextHorizontally (self, theAlignTextHorizontally) | |
| MeasurementValue (self) | |
| Returns the actual measurement. | |
| SetMeasurementValue (self, theMeasurementValue) | |
| Sets the actual measurement. | |
| Text (self) | |
| Returns the dimension text. | |
| SetText (self, theText) | |
| Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Element | |
| SetUuid (self, theUuid) | |
| Uuid (self) | |
| Accept (self, theVisitor) | |
| Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject | |
| Id (self) | |
| Return unique identifier of public object. | |
| IsNull (self) | |
Static Public Member Functions | |
| CompareType (theObject) | |
| Static Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Dimension | |
| Cast (theBase) | |
Additional Inherited Members | |
| Static Public Attributes inherited from manufacturingtoolkit.CadExMTK.Drawing_Dimension | |
| ArrowType_Undefined = _CadExMTK.Drawing_Dimension_ArrowType_Undefined | |
| ArrowType_ClosedFilled = _CadExMTK.Drawing_Dimension_ArrowType_ClosedFilled | |
| ArrowType_ClosedBlank = _CadExMTK.Drawing_Dimension_ArrowType_ClosedBlank | |
| ArrowType_Closed = _CadExMTK.Drawing_Dimension_ArrowType_Closed | |
| ArrowType_Dot = _CadExMTK.Drawing_Dimension_ArrowType_Dot | |
| ArrowType_ArchitecturalTick = _CadExMTK.Drawing_Dimension_ArrowType_ArchitecturalTick | |
| ArrowType_Oblique = _CadExMTK.Drawing_Dimension_ArrowType_Oblique | |
| ArrowType_Open = _CadExMTK.Drawing_Dimension_ArrowType_Open | |
| ArrowType_OriginIndicator = _CadExMTK.Drawing_Dimension_ArrowType_OriginIndicator | |
| ArrowType_OriginIndicator2 = _CadExMTK.Drawing_Dimension_ArrowType_OriginIndicator2 | |
| ArrowType_RightAngle = _CadExMTK.Drawing_Dimension_ArrowType_RightAngle | |
| ArrowType_Open30 = _CadExMTK.Drawing_Dimension_ArrowType_Open30 | |
| ArrowType_DotSmall = _CadExMTK.Drawing_Dimension_ArrowType_DotSmall | |
| ArrowType_DotBlank = _CadExMTK.Drawing_Dimension_ArrowType_DotBlank | |
| ArrowType_DotSmallBlank = _CadExMTK.Drawing_Dimension_ArrowType_DotSmallBlank | |
| ArrowType_Box = _CadExMTK.Drawing_Dimension_ArrowType_Box | |
| ArrowType_BoxFilled = _CadExMTK.Drawing_Dimension_ArrowType_BoxFilled | |
| ArrowType_DatumTriangle = _CadExMTK.Drawing_Dimension_ArrowType_DatumTriangle | |
| ArrowType_DatumTriangleFilled = _CadExMTK.Drawing_Dimension_ArrowType_DatumTriangleFilled | |
| ArrowType_Integral = _CadExMTK.Drawing_Dimension_ArrowType_Integral | |
| ArrowheadPlacementType_Internal = _CadExMTK.Drawing_Dimension_ArrowheadPlacementType_Internal | |
| ArrowheadPlacementType_External = _CadExMTK.Drawing_Dimension_ArrowheadPlacementType_External | |
DiametricDimension Dimension.hxx cadex/Drawing/Dimension.hxx.
Describes a diametric dimension measures of circles.

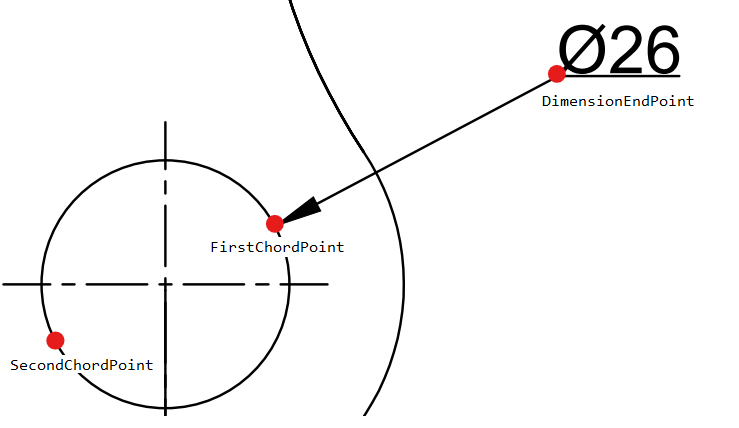

FirstChordPoint and SecondChordPoint refer to points on the drawing geometry that are being measured. DimensionEndPoint defines the end point of dimension line.
| manufacturingtoolkit.CadExMTK.Drawing_DiametricDimension.__init__ | ( | self, | |
| * | args ) |
Constructor.
Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Dimension.
|
static |
Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Dimension.
