manufacturingtoolkit.CadExMTK.Drawing_Dimension Class Reference

Dimension Dimension.hxx cadex/Drawing/Dimension.hxx. More...

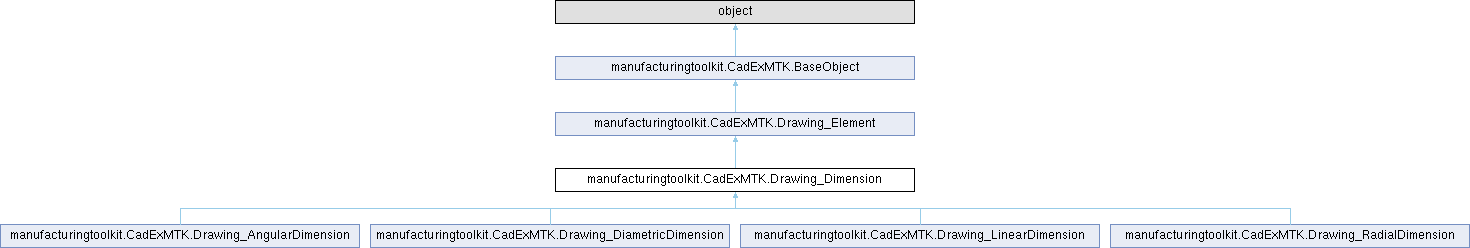

Inheritance diagram for manufacturingtoolkit.CadExMTK.Drawing_Dimension:

Public Member Functions
	__init__ (self, *args, **kwargs)
	SetFirstArrowType (self, theFirstArrowType)
	Sets type of the first arrow of dimension.
	SecondArrowType (self)
	Returns type of the second arrow of dimension.
	SetSecondArrowType (self, theSecondArrowType)
	ArrowheadPlacement (self)
	Returns the arrowhead placement.
	SetArrowheadPlacement (self, theArrowheadPlacement)
	Sets the arrowhead placement.
	AlignTextHorizontally (self)
	Returns true if the measurement text is align horizontally.
	SetAlignTextHorizontally (self, theAlignTextHorizontally)
	MeasurementValue (self)
	Returns the actual measurement.
	SetMeasurementValue (self, theMeasurementValue)
	Sets the actual measurement.
	Text (self)
	Returns the dimension text.
	SetText (self, theText)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.Drawing_Element
	SetUuid (self, theUuid)
	Uuid (self)
	Accept (self, theVisitor)
Public Member Functions inherited from manufacturingtoolkit.CadExMTK.BaseObject
	Id (self)
	Return unique identifier of public object.
	IsNull (self)
	IsEqual (self, theObj)
	__hash__ (self)
	__eq__ (self, other)

Static Public Member Functions
	CompareType (theObject)
	Cast (theBase)

Static Public Attributes
	ArrowType_Undefined = _CadExMTK.Drawing_Dimension_ArrowType_Undefined
	ArrowType_ClosedFilled = _CadExMTK.Drawing_Dimension_ArrowType_ClosedFilled
	ArrowType_ClosedBlank = _CadExMTK.Drawing_Dimension_ArrowType_ClosedBlank
	ArrowType_Closed = _CadExMTK.Drawing_Dimension_ArrowType_Closed
	ArrowType_Dot = _CadExMTK.Drawing_Dimension_ArrowType_Dot
	ArrowType_ArchitecturalTick = _CadExMTK.Drawing_Dimension_ArrowType_ArchitecturalTick
	ArrowType_Oblique = _CadExMTK.Drawing_Dimension_ArrowType_Oblique
	ArrowType_Open = _CadExMTK.Drawing_Dimension_ArrowType_Open
	ArrowType_OriginIndicator = _CadExMTK.Drawing_Dimension_ArrowType_OriginIndicator
	ArrowType_OriginIndicator2 = _CadExMTK.Drawing_Dimension_ArrowType_OriginIndicator2
	ArrowType_RightAngle = _CadExMTK.Drawing_Dimension_ArrowType_RightAngle
	ArrowType_Open30 = _CadExMTK.Drawing_Dimension_ArrowType_Open30
	ArrowType_DotSmall = _CadExMTK.Drawing_Dimension_ArrowType_DotSmall
	ArrowType_DotBlank = _CadExMTK.Drawing_Dimension_ArrowType_DotBlank
	ArrowType_DotSmallBlank = _CadExMTK.Drawing_Dimension_ArrowType_DotSmallBlank
	ArrowType_Box = _CadExMTK.Drawing_Dimension_ArrowType_Box
	ArrowType_BoxFilled = _CadExMTK.Drawing_Dimension_ArrowType_BoxFilled
	ArrowType_DatumTriangle = _CadExMTK.Drawing_Dimension_ArrowType_DatumTriangle
	ArrowType_DatumTriangleFilled = _CadExMTK.Drawing_Dimension_ArrowType_DatumTriangleFilled
	ArrowType_Integral = _CadExMTK.Drawing_Dimension_ArrowType_Integral
	ArrowheadPlacementType_Internal = _CadExMTK.Drawing_Dimension_ArrowheadPlacementType_Internal
	ArrowheadPlacementType_External = _CadExMTK.Drawing_Dimension_ArrowheadPlacementType_External

Detailed Description

Dimension Dimension.hxx cadex/Drawing/Dimension.hxx.

Base class for various dimension types.

Dimension entities show length, angle, radius and diameter measurements.

Constructor & Destructor Documentation

__init__()

manufacturingtoolkit.CadExMTK.Drawing_Dimension.__init__	(		self,
		*	args,
		**	kwargs )

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Element.

Reimplemented in manufacturingtoolkit.CadExMTK.Drawing_AngularDimension, manufacturingtoolkit.CadExMTK.Drawing_DiametricDimension, manufacturingtoolkit.CadExMTK.Drawing_LinearDimension, and manufacturingtoolkit.CadExMTK.Drawing_RadialDimension.

Member Function Documentation

ArrowheadPlacement()

manufacturingtoolkit.CadExMTK.Drawing_Dimension.ArrowheadPlacement

(

self

)

Returns the arrowhead placement.

Returns ArrowheadPlacementType.Internal by default or if IsNull().

Cast()

manufacturingtoolkit.CadExMTK.Drawing_Dimension.Cast ( theBase )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Element.

CompareType()

manufacturingtoolkit.CadExMTK.Drawing_Dimension.CompareType ( theObject )

static

Reimplemented from manufacturingtoolkit.CadExMTK.Drawing_Element.

SecondArrowType()

manufacturingtoolkit.CadExMTK.Drawing_Dimension.SecondArrowType

(

self

)

Returns type of the second arrow of dimension.

Returns ArrowType.Undefined if IsNull().

---

The documentation for this class was generated from the following file:

• CadExMTK.py
