Demonstrates how to perform machining design analysis on a 3D model and print information about found issues and their parameters in a console.
Overview
In this example demonstrates how to perform machining design analysis on a 3D model using machining dfm analyzer tool (DFMMachining_Analyzer). For this purpose, used a console application that imports a STEP model, traverses through unique ModelData::Part , creates and runs DFMMachining_Analyzer, groups and prints information about found issues and their parameters into console. Machining design analysis will be performed for each unique ModelData::Part , but only for the scope of accepted geometries.
Application needs 2 input arguments to run:
Usage: machining_dfm_analyzer <input_file> <operation>, where:
<input_file> is a name of the file to be read
<operation> is a name of desired machining operation
Supported operations:
milling: CNC Machining Milling feature recognition
turning: CNC Machining Lathe+Milling feature recognition
For more information about machining design analysis visit CNC Machining Design for Manufacturing (DFM) page.
Implementation
PartProcessor
class is inherited from SolidProcessor
and overrides ProcessSolid
method that are used to run design analysis on given shape. To reduce computation time, Machining_Data will be used as an input argument to perform design analysis. Machining data contains information about found features, therefore, the first step is to run Machining_FeatureRecognizer. The Machining_FeatureRecognizerParameters.SetOperation() method of the tool parameters is used to set the type of operation (Milling or LatheMilling). The operation type will be taking into account during recognition process and the recognition result will be different depending on it.
Once feature recognition is done, design analysis is run for various sub-processes (drilling / milling / turning). CombineFeatureLists
method is used to combine issues from design analysis of different sub-processes.
After design analysis is performed, PrintIssues
method is used to print information about found features and their parameters in a console.
Visit Model Explore Helper Implementation page for more information about base SolidProcessor
class implementation.
class PartProcessor : public SolidProcessor
{
public:
{}
{
aRecognizer.
Perform (theSolid, aData);
auto anIssueList = aDrillingAnalyzer.Perform (theSolid, aData);
CombineFeatureLists (anIssueList, aMillingIssueList);
if (myOperation == Machining_OT_LatheMilling) {
aTurningIssueList = aTurningAnalyzer.Perform (theSolid, aData);
CombineFeatureLists (anIssueList, aTurningIssueList);
}
PrintIssues (anIssueList);
}
private:
{
for (
size_t i = 0; i < theSecond.
Size(); i++) {
const auto& aFeature = theSecond[i];
if (myOperation == Machining_OT_LatheMilling
continue;
}
}
}
};
Provides an interface to run DFM Machining analysis.
Definition DFMMachining_Analyzer.hxx:43
Describes deep pocket issue found during cnc machining milling design analysis.
Definition DFMMachining_DeepPocketIssue.hxx:30
Defines parameters used in cnc machining drilling design analysis.
Definition DFMMachining_DrillingAnalyzerParameters.hxx:31
Defines parameters used in cnc machining milling design analysis.
Definition DFMMachining_MillingAnalyzerParameters.hxx:36
Describes a base class for milling issues found during cnc machining milling design analysis.
Definition DFMMachining_MillingIssue.hxx:33
Defines parameters used in cnc machining turning design analysis.
Definition DFMMachining_TurningAnalyzerParameters.hxx:35
Defines a list of features.
Definition MTKBase_FeatureList.hxx:36
size_t Size() const
Returns the number of elements in the list.
Definition MTKBase_FeatureList.cxx:88
void Append(const MTKBase_Feature &theFeature)
Adds a feature to the list.
Definition MTKBase_FeatureList.cxx:56
Defines data used in Machining analysis.
Definition Machining_Data.hxx:36
Provides an interface to recognizing machining features tool.
Definition Machining_FeatureRecognizer.hxx:45
MTKBase_FeatureList Perform(const ModelData::Solid &theSolid, const cadex::ProgressStatus &theProgressStatus=cadex::ProgressStatus())
Runs features recognition process.
Definition Machining_FeatureRecognizer.cxx:301
const Machining_FeatureRecognizerParameters & Parameters() const
Returns parameters.
Definition Machining_FeatureRecognizer.cxx:320
void SetOperation(Machining_OperationType theOperation)
Definition Machining_FeatureRecognizerParameters.cxx:221
Defines a topological solid.
Definition Solid.hxx:32
Contains classes, namespaces, enums, types, and global functions related to Manufacturing Toolkit.
Definition LicenseManager_LicenseError.hxx:30
Machining_OperationType
Defines an operation type in machining.
Definition Machining_OperationType.hxx:28
@ Machining_OT_Undefined
Unknown operation type.
Definition Machining_OperationType.hxx:31
To traverse only unique parts of the imported model, the ModelData::ModelElementUniqueVisitor class is used.
PartProcessor aPartProcessor;
aModel.Accept (aVisitor);
Defines a visitor that visits each unique element only once.
Definition ModelElementVisitor.hxx:87
After performing design analysis, the object of FeatureGroupManager
class is used to group and sort found issues. For this purpose, there is a traverse through all found issues and add each of them to FeatureGroupManager
with a specified name.
for (size_t i = 0; i < theIssueList.Size(); ++i) {
const auto& anIssue = theIssueList[i];
aManager.AddFeature ("Small Diameter Hole Issue(s)", "Hole(s)", true, anIssue);
aManager.AddFeature ("Deep Hole Issue(s)", "Hole(s)", true, anIssue);
} else if ...
}
Describes deep hole issues found during cnc machining drilling design analysis.
Definition DFMMachining_DeepHoleIssue.hxx:29
Describes small diameter hole issues found during cnc machining drilling design analysis.
Definition DFMMachining_SmallDiameterHoleIssue.hxx:29
After adding all found issues to FeatureGroupManager
, a Print
method of the manager is used to print information about found issues and their parameters in a console. PrintFeatureParameters
is created to explore and print issue parameters. It uses as an input parameter of Print
method.
{
FeatureGroupManager::PrintFeatureParameter ("expected min diameter", aSDHIssue.ExpectedMinDiameter(), "mm");
FeatureGroupManager::PrintFeatureParameter ("actual diameter", aSDHIssue.ActualDiameter(), "mm");
FeatureGroupManager::PrintFeatureParameter ("expected max depth", aDHIssue.ExpectedMaxDepth(), "mm");
FeatureGroupManager::PrintFeatureParameter ("actual depth", aDHIssue.ActualDepth(), "mm");
} else if ...
};
aManager.Print ("issues", PrintFeatureParameters);
Describes a base class of MTK based features.
Definition MTKBase_Feature.hxx:33
Visit Feature Group Helper Implementation page for more information about FeatureGroupManager
class implementation.
Example output

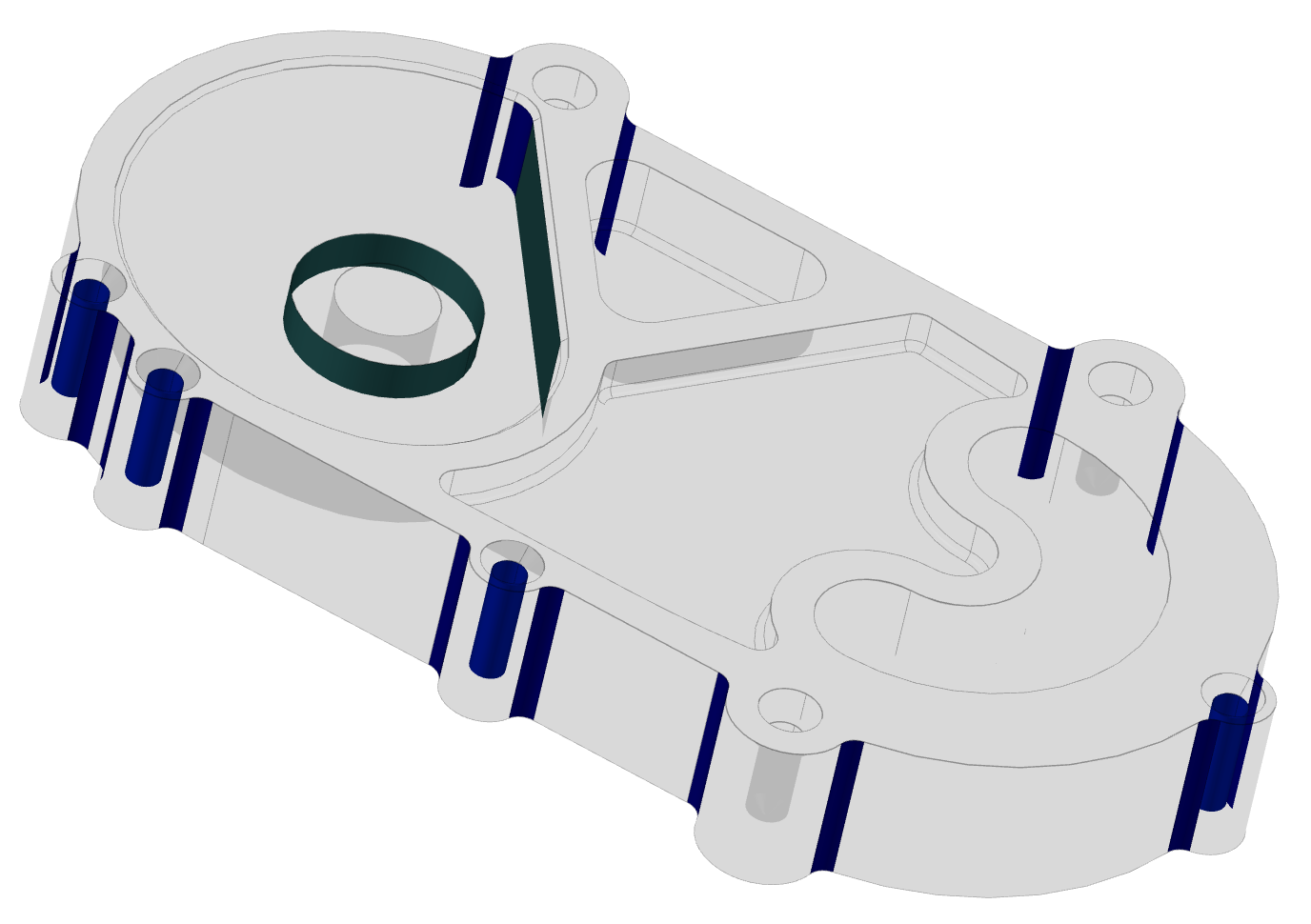

The first is an example output for model from ./examples/models/Fresamento_CAM1_v3.stp
and operation set to Milling

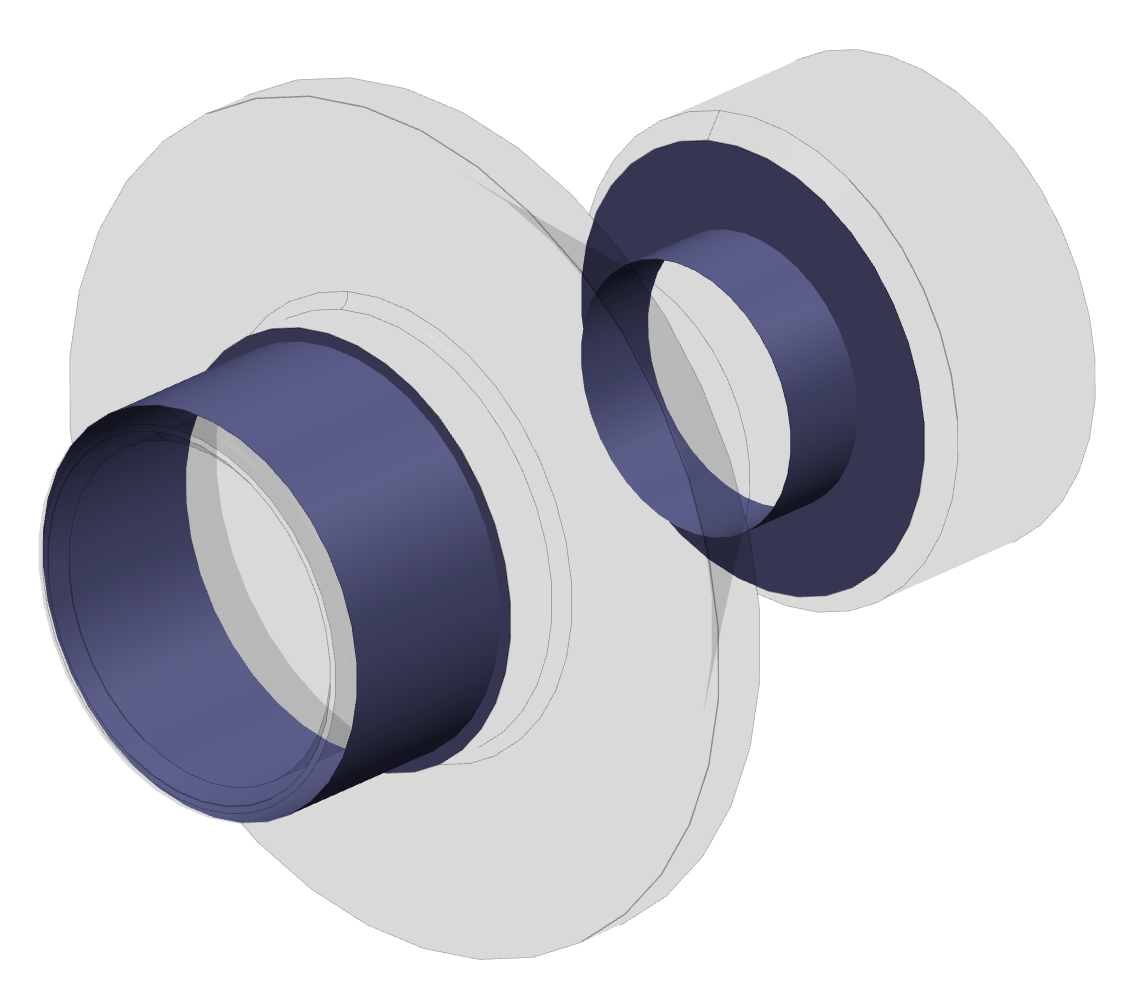

. and the second one is an output for model from ./examples/models/senthi.step
and operation set to Lathe+Milling
.
Model | Example output |
| Model: Fresamento_CAM1_v3.stp
Part #0 ["Fresamento_CAM1"] - solid #0 has:
Deep Hole Issue(s): 4
4 Hole(s) with
expected max depth: 29.841 mm
actual depth: 31.3245 mm
Non Standard Diameter Hole Issue(s): 4
4 Hole(s) with
nearest standard diameter: 9 mm
actual diameter: 8.526 mm
...
Total issues: 24
|
| Model: senthi
Part #0 ["drawing no 1"] - solid #0 has:
Non Standard Radius Milled Part Floor Fillet Issue(s): 2
1 Floor Fillet(s) with
nearest standard radius: 4 mm
actual radius: 5 mm
1 Floor Fillet(s) with
nearest standard radius: 4 mm
actual radius: 50 mm
Non Perpendicular Milled Part Shape Issue(s): 1
1 Shape(s) with
actual angle: 141.936 deg
Milled Part External Edge Fillet Issue(s): 1
Inconsistent Radius Milled Part Floor Fillet Issue(s): 1
1 Floor Fillet(s) with
expected radius: 5 mm
actual radius: 50 mm
Total issues: 5
|
