cadex.DFMMachining_DeepPocketIssue Class Reference

Describes deep pocket issue found during cnc machining milling design analysis. More...

Inheritance diagram for cadex.DFMMachining_DeepPocketIssue:

Public Member Functions
	DFMMachining_DeepPocketIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_DeepPocketIssue ()
	Constructor.
double	ExpectedMaxDepthToWidthRatio ()
	Returns the expected maximum pocket depth to width ratio.
void	SetExpectedMaxDepthToWidthRatio (double theValue)
	Sets expected maximum pocket depth to width ratio.
double	ExpectedMaxDepth ()
	Returns the expected maximum depth of the pocket in mm .
double	ActualDepth ()
	Returns the actual depth of the pocket in mm .
double	ActualWidth ()
	Returns the actual width of the pocket in mm .
cadex.Machining_Pocket	Pocket ()
	Returns the problematic pocket.
void	SetPocket (cadex.Machining_Pocket thePocket)
	Sets the problematic pocket.
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM deep pocket issue.
static new cadex.DFMMachining_DeepPocketIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.DFMMachining_MillingIssue
override void	Dispose (bool disposing)

Detailed Description

Describes deep pocket issue found during cnc machining milling design analysis.

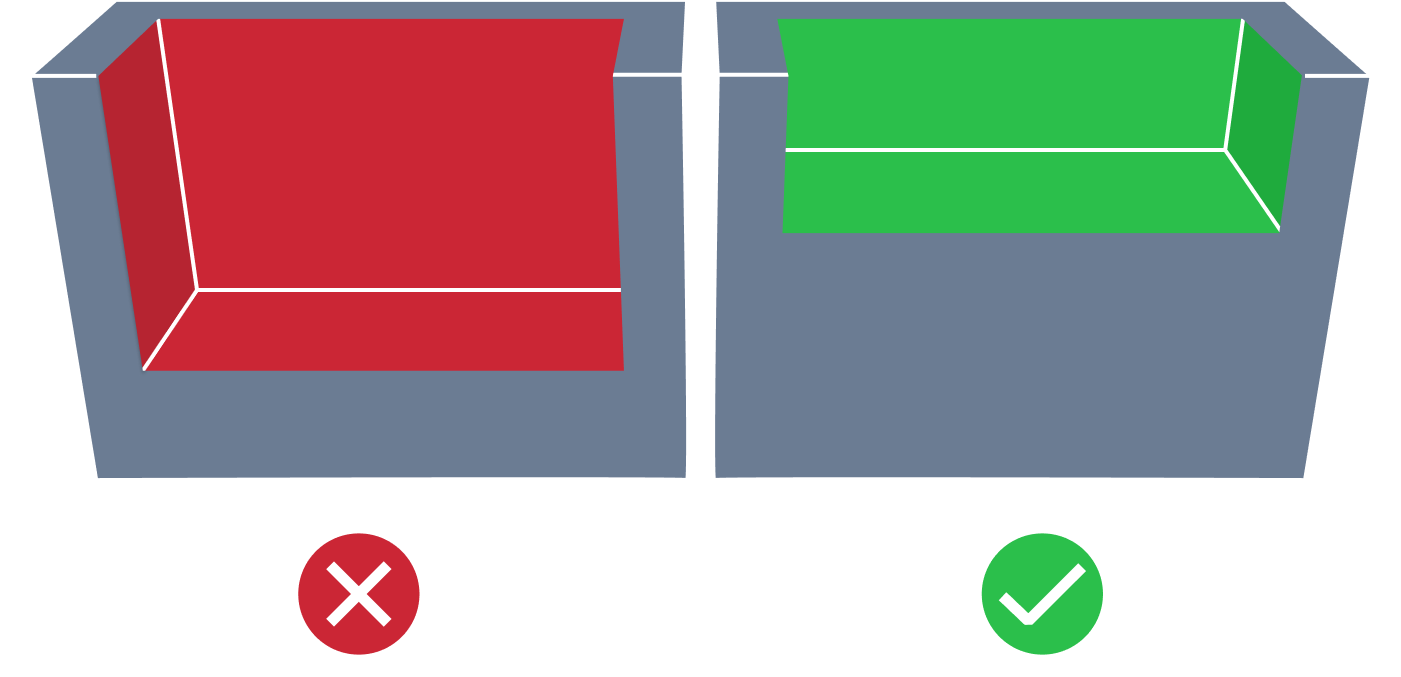

A deep pocket can be problematic in cnc machining milling design due to the difficulty of removing material from the bottom of the pocket. If the pocket is too deep, the cutting tool may not be long enough to reach the bottom, or may deflect excessively, resulting in unacceptable surface finish and accuracy. Additionally, chip evacuation and coolant delivery can be challenging in deep pockets, leading to chip buildup and reduced tool life.

Contains pocket that fails the following condition:

\[ \large D_p \leq W_p * Rt \]

\[ \begin{aligned} & \small D_p - \text{actual pocket depth} \\ & \small W_p - \text{actual pocket width} \\ & \small Rt - \text{expected maximum pocket depth to width ratio} \end{aligned} \]

See also

DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MaxPocketDepthToWidthRatio()

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_DeepPocketIssue()

cadex.DFMMachining_DeepPocketIssue.DFMMachining_DeepPocketIssue ( )

inline

Constructor.

Member Function Documentation

ActualDepth()

double cadex.DFMMachining_DeepPocketIssue.ActualDepth ( )

inline

Returns the actual depth of the pocket in mm .

See also

Pocket()

Examples

machining/dfm_analyzer/Program.cs.

ActualWidth()

double cadex.DFMMachining_DeepPocketIssue.ActualWidth ( )

inline

Returns the actual width of the pocket in mm .

See also

Pocket()

CompareType()

static new bool cadex.DFMMachining_DeepPocketIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM deep pocket issue.

Examples

MTKConverter/Program.cs, and machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_DeepPocketIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMaxDepth()

double cadex.DFMMachining_DeepPocketIssue.ExpectedMaxDepth ( )

inline

Returns the expected maximum depth of the pocket in mm .

\[ \large D_e = W_p * Rt \]

\[ \begin{aligned} & \small D_e - \text{expected maximum pocket depth} \\ & \small W_p - \text{actual pocket width} \\ & \small Rt - \text{expected maximum pocket depth to width ratio} \end{aligned} \]

See also

ExpectedMaxDepthToWidthRatio(), ActualWidth()

Examples

machining/dfm_analyzer/Program.cs.

ExpectedMaxDepthToWidthRatio()

double cadex.DFMMachining_DeepPocketIssue.ExpectedMaxDepthToWidthRatio ( )

inline

Returns the expected maximum pocket depth to width ratio.

See also

SetExpectedMaxDepthToWidthRatio(), DFMMachining_MillingAnalyzerParameters.MaxPocketDepthToWidthRatio()

Pocket()

cadex.Machining_Pocket cadex.DFMMachining_DeepPocketIssue.Pocket ( )

inline

Returns the problematic pocket.

See also

SetPocket()

SetExpectedMaxDepthToWidthRatio()

void cadex.DFMMachining_DeepPocketIssue.SetExpectedMaxDepthToWidthRatio ( double theValue )

inline

Sets expected maximum pocket depth to width ratio.

The value should be greater or equal to 0.

See also

ExpectedMaxDepthToWidthRatio()

SetPocket()

void cadex.DFMMachining_DeepPocketIssue.SetPocket ( cadex.Machining_Pocket thePocket )

inline

Sets the problematic pocket.

See also

Pocket()
