Describes intersecting cavity hole issues found during cnc machining drilling design analysis. More...

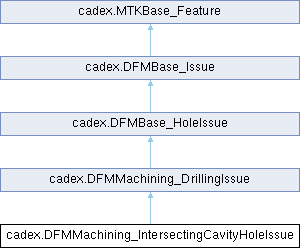

Inheritance diagram for cadex.DFMMachining_IntersectingCavityHoleIssue:

Public Member Functions
	DFMMachining_IntersectingCavityHoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_IntersectingCavityHoleIssue ()
	Constructor.

	DFMMachining_IntersectingCavityHoleIssue (cadex.Machining_Hole theHole)
	Constructor.

Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Machining_Hole	MachiningHole ()

Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.MTKBase_Hole	Hole ()

void	SetHole (cadex.MTKBase_Hole theHole)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining intersecting cavity hole issue.

static new cadex.DFMMachining_IntersectingCavityHoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining drilling issue.

static new cadex.DFMMachining_DrillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.

static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes intersecting cavity hole issues found during cnc machining drilling design analysis.

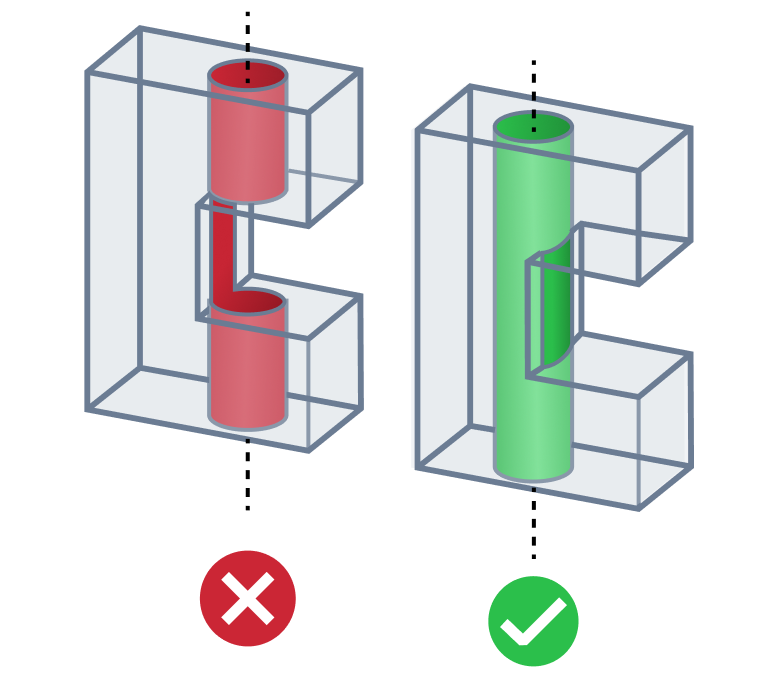

In cnc machining, the issue of holes intersecting cavities can arise when designing a part that requires both holes and closed cavities. If the cavity intersects with the hole, it can create a number of issues during the drilling process. The drill bit may become trapped in the cavity, or the drill may produce an irregularly-shaped hole that does not pass cleanly through the part. In extreme cases, the drill bit may even break off inside the part, causing damage and requiring costly repairs. It's better to avoid drilling a hole through the cavity or at least maximize the drilled material percent, so that the center line of a hole will be outside the cavity.

Contains hole intersecting a cavity.
