Describes external edge fillet issue found during cnc machining milling design analysis. More...

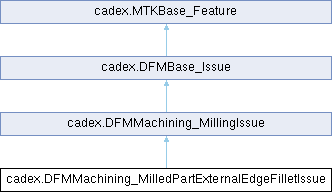

Inheritance diagram for cadex.DFMMachining_MilledPartExternalEdgeFilletIssue:

Public Member Functions
	DFMMachining_MilledPartExternalEdgeFilletIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_MilledPartExternalEdgeFilletIssue ()
	Constructor.

cadex.ModelData.Shell	Fillet ()

void	SetFillet (cadex.ModelData.Shell theShell)

Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM milled part external edge fillet issue.

static new cadex.DFMMachining_MilledPartExternalEdgeFilletIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.

static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.DFMMachining_MillingIssue
override void	Dispose (bool disposing)

Detailed Description

Describes external edge fillet issue found during cnc machining milling design analysis.

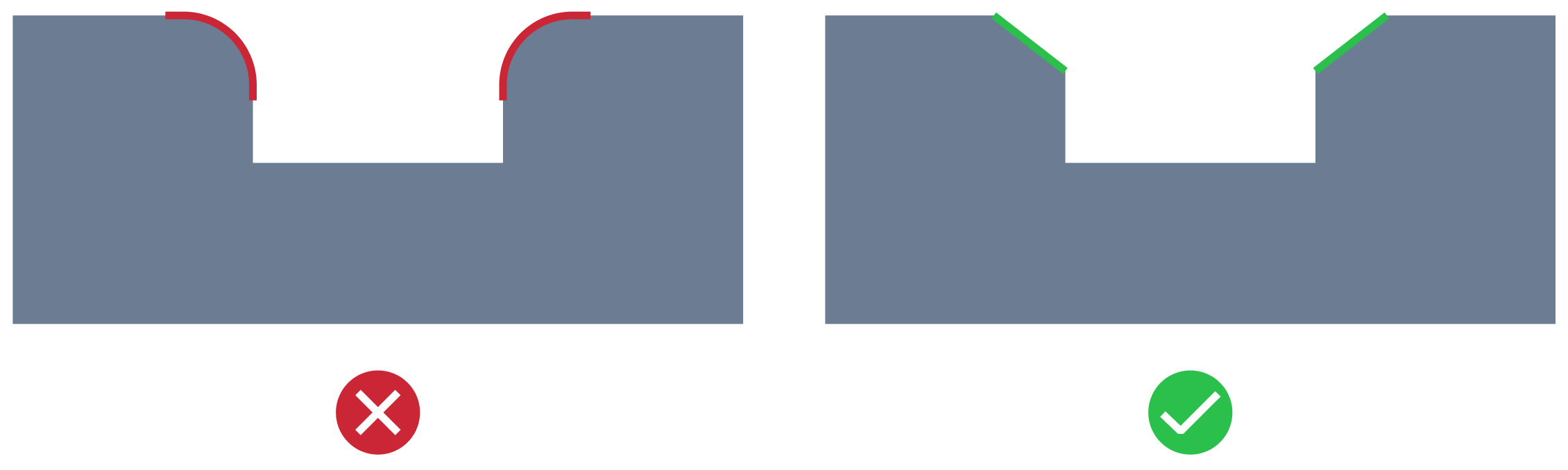

When designing external edges in cnc machining milling, filleting can pose some issues that need to be considered. Filleting the external edge can potentially lead to stress concentration points due to the bend of the fillet, leading to weak and broken corners. The production of fillets on the external edge also requires special tooling and milling techniques that are expensive compared to other machining methods, e.g. chamfering. Chamfers are preferable compared to fillets on the external edge in CNC machining milling design due to their ability to reduce stress concentrations, provide better clearance, reduce manufacturing costs, and improve overall appearance.
