Describes non perpendicular hole issues found during cnc machining drilling design analysis. More...

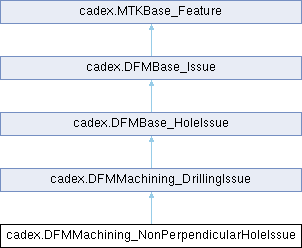

Inheritance diagram for cadex.DFMMachining_NonPerpendicularHoleIssue:

Public Member Functions
	DFMMachining_NonPerpendicularHoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_NonPerpendicularHoleIssue ()
	Constructor.

	DFMMachining_NonPerpendicularHoleIssue (cadex.Machining_Hole theHole)
	Creates a non perpendicular hole issue from the Machining_Hole object.

Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Machining_Hole	MachiningHole ()
	Returns the problematic machining hole.

Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.MTKBase_Hole	Hole ()
	Returns the problematic hole.

void	SetHole (cadex.MTKBase_Hole theHole)
	Sets the problematic hole.

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining non perpendicular hole issue.

static new cadex.DFMMachining_NonPerpendicularHoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining drilling issue.

static new cadex.DFMMachining_DrillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.

static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non perpendicular hole issues found during cnc machining drilling design analysis.

The non-perpendicular hole issue in cnc machining drilling design occurs when a hole is drilled at an angle that is not exactly 90 degrees to the surface of the workpiece. Non perpendicular holes can lead to poor fitting, loose connections, and reduced structural strength.

Contains hole drilled at an angle to the surface.

See also: DFMMachining_Analyzer

Examples: machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMachining_NonPerpendicularHoleIssue() [1/2]

cadex.DFMMachining_NonPerpendicularHoleIssue.DFMMachining_NonPerpendicularHoleIssue ( )

inline

Constructor.

◆ DFMMachining_NonPerpendicularHoleIssue() [2/2]

cadex.DFMMachining_NonPerpendicularHoleIssue.DFMMachining_NonPerpendicularHoleIssue ( cadex.Machining_Hole theHole )

inline

Creates a non perpendicular hole issue from the Machining_Hole object.

Constructor.

Member Function Documentation

◆ CompareType()

static new bool cadex.DFMMachining_NonPerpendicularHoleIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a DFM machining non perpendicular hole issue.

Examples: machining/dfm_analyzer/Program.cs.

◆ Dispose()

override void cadex.DFMMachining_NonPerpendicularHoleIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_DrillingIssue.
