Describes non perpendicular milled part shape issue found during cnc machining milling design analysis. More...

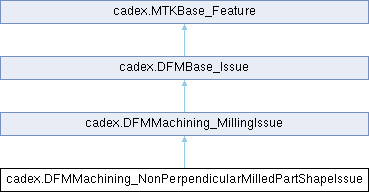

Inheritance diagram for cadex.DFMMachining_NonPerpendicularMilledPartShapeIssue:

Public Member Functions
	DFMMachining_NonPerpendicularMilledPartShapeIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_NonPerpendicularMilledPartShapeIssue ()
	Constructor.

double	ActualAngle ()

void	SetActualAngle (double theAngle)

cadex.ModelData.Shell	Shape ()

void	SetShape (cadex.ModelData.Shell theShell)

Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining non perpendicular milled part shape issue.

static new cadex.DFMMachining_NonPerpendicularMilledPartShapeIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.

static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non perpendicular milled part shape issue found during cnc machining milling design analysis.

In cnc milling, non perpendicular shape refers to side and bottom surfaces that separated by a floor fillet and are not perpendicular to each other. When surfaces are separated by a floor fillet, the stress concentration increases at that point. When these surfaces are not perpendicular to each other, the stress concentration may be further exacerbated. Moreover, machining two surfaces that are not perpendicular to each other requires positioning the tool at an oblique angle, leading to increased tool wear and reduced tool life. Additionally, the uneven surface requires more machining time and requires specialized tooling and techniques.
