cadex.DFMMachining_NonStandardDiameterHoleIssue Class Reference

Describes non standard diameter hole issues found during cnc machining drilling design analysis. More...

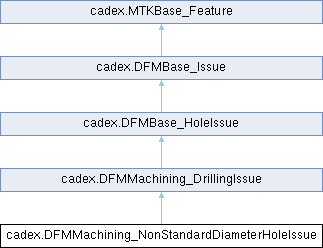

Inheritance diagram for cadex.DFMMachining_NonStandardDiameterHoleIssue:

Public Member Functions
	DFMMachining_NonStandardDiameterHoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_NonStandardDiameterHoleIssue ()
	Constructor.
	DFMMachining_NonStandardDiameterHoleIssue (cadex.Machining_Hole theHole)
	Constructor.
double	NearestStandardDiameter ()
void	SetNearestStandardDiameter (double theDiameter)
double	ActualDiameter ()
Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Machining_Hole	MachiningHole ()
Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.MTKBase_Hole	Hole ()
void	SetHole (cadex.MTKBase_Hole theHole)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining non standard diameter hole issue.
static new cadex.DFMMachining_NonStandardDiameterHoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining drilling issue.
static new cadex.DFMMachining_DrillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.
static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes non standard diameter hole issues found during cnc machining drilling design analysis.

In cnc machining drilling design, non standard diameter hole issue refers to the situation where the diameter of the hole required in the design is not a standard size. This can create challenges in the machining process as it may require special tooling or custom programming to achieve the desired hole size. The issue arises because most cnc machines are designed to work with standard drill sizes that are readily available in the market. However, when a design calls for a non-standard size, it can be challenging to find the appropriate tooling or program the machine to achieve the desired result, which can increase the final cost of manufacturing.

Contains non standard diameter hole and the standard diameter closest to it.

See also

DFMMachining_Analyzer, DFMMachining_DrillingAnalyzerParameters.HoleDiameterStandartSizeParameters()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMachining_NonStandardDiameterHoleIssue()

cadex.DFMMachining_NonStandardDiameterHoleIssue.DFMMachining_NonStandardDiameterHoleIssue ( cadex.Machining_Hole theHole )

inline

Constructor.

Creates a non standard diameter hole issue from the Machining_Hole object.

Member Function Documentation

ActualDiameter()

double cadex.DFMMachining_NonStandardDiameterHoleIssue.ActualDiameter ( )

inline

Returns the actual hole diameter in mm .

See also

Hole()

Examples

machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_NonStandardDiameterHoleIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_DrillingIssue.

NearestStandardDiameter()

double cadex.DFMMachining_NonStandardDiameterHoleIssue.NearestStandardDiameter ( )

inline

Returns the nearest standard diameter in mm .

See also

SetNearestStandardDiameter()

Examples

machining/dfm_analyzer/Program.cs.

SetNearestStandardDiameter()

void cadex.DFMMachining_NonStandardDiameterHoleIssue.SetNearestStandardDiameter ( double theDiameter )

inline

Sets the nearest standard diameter in mm . theDiameter should not be equal to ActualDiameter().

See also

NearestStandardDiameter()
