Describes partial hole issues found during cnc machining drilling design analysis. More...

Inheritance diagram for cadex.DFMMachining_PartialHoleIssue:

Public Member Functions
	DFMMachining_PartialHoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMachining_PartialHoleIssue ()
	Constructor.

	DFMMachining_PartialHoleIssue (cadex.Machining_Hole theHole)
	Constructor.

double	ExpectedMinMaterialPercent ()

void	SetExpectedMinMaterialPercent (double thePercent)

double	ActualMaterialPercent ()

void	SetActualMaterialPercent (double thePercent)

Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
	DFMMachining_DrillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Machining_Hole	MachiningHole ()

Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.MTKBase_Hole	Hole ()

void	SetHole (cadex.MTKBase_Hole theHole)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining partial hole issue.

static new cadex.DFMMachining_PartialHoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMachining_DrillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM machining drilling issue.

static new cadex.DFMMachining_DrillingIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.

static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes partial hole issues found during cnc machining drilling design analysis.

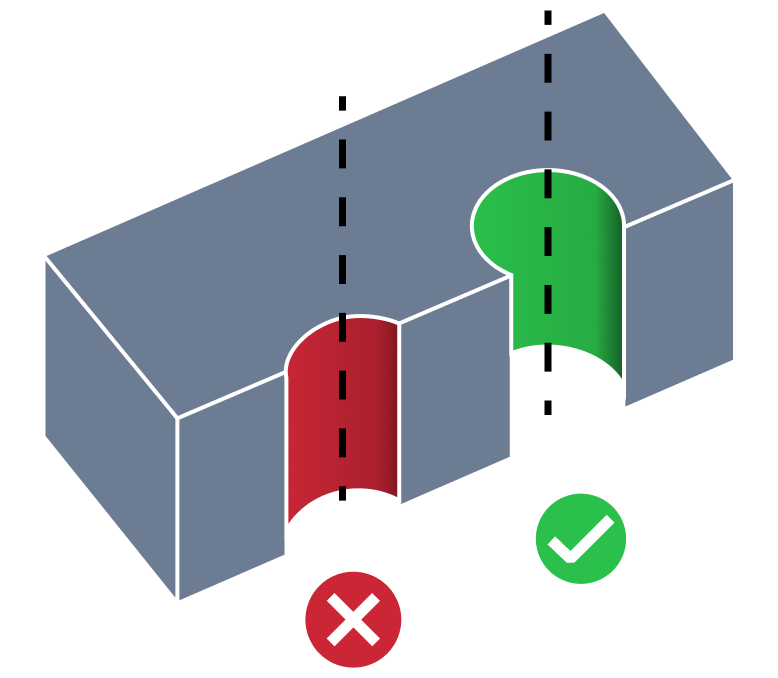

Partial hole issue in cnc machining drilling design refers to the difficulty of achieving a complete and uniform hole when drilling close to the edge of a workpiece. Drilling near the edge of a part can create issues such as tool deflection, material deformation, and cracking. Therefore, it's better to avoid partial holes or at least maximize the drilled material percent.

Contains hole that fails the following condition:

\[ \large MP_h \geq mp_m \]

\[ \begin{aligned} & \small MP_h - \text{actual partial hole material percent} \\ & \small mp_m - \text{expected minimum partial hole material percent} \end{aligned} \]
