cadex.DFMMolding_IrregularWallThicknessScrewBossIssue Class Reference

Describes irregular wall thickness screw boss issues found during injection molding design analysis. More...

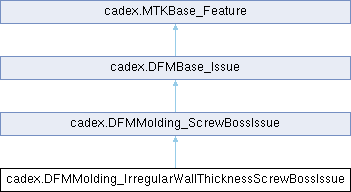

Inheritance diagram for cadex.DFMMolding_IrregularWallThicknessScrewBossIssue:

Public Member Functions
	DFMMolding_IrregularWallThicknessScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_IrregularWallThicknessScrewBossIssue ()
	Constructor.
	DFMMolding_IrregularWallThicknessScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Constructor.
double	ExpectedMaxThicknessToWallThicknessRatio ()
void	SetExpectedMaxThicknessToWallThicknessRatio (double theRatio)
double	ExpectedMinThicknessToWallThicknessRatio ()
void	SetExpectedMinThicknessToWallThicknessRatio (double theRatio)
double	ExpectedMaxThickness ()
void	SetExpectedMaxThickness (double theThickness)
double	ExpectedMinThickness ()
void	SetExpectedMinThickness (double theThickness)
double	ActualThickness ()
Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Molding_ScrewBoss	ScrewBoss ()
void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding irregular wall thickness issue.
static new cadex.DFMMolding_IrregularWallThicknessScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.
static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)
Protected Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
override void	Dispose (bool disposing)

Detailed Description

Describes irregular wall thickness screw boss issues found during injection molding design analysis.

The irregular wall thickness screw boss issues refers to the challenge of molding features with deviating from the nominal wall thickness. Irregular wall thickness screw boss can cause non-uniform cooling and fails applied loads. Therefore, it is recommended to maintain screw boss's thickness variance from 40% to 60% across the nominal thickness to minimize the risk of sinking or fracture.

Contains screw boss that fails the following conditions:

\[ R_{min} \leq \frac{D_b-D_h}{T_n} \leq R_{max} \]

\[ \begin{aligned} & \small D_b - \text{analyzed boss outer diameter} \\ & \small D_h - \text{analyzed boss core hole diameter} \\ & \small T_n - \text{nominal wall thickness} \\ & \small R_{min} - \text{minimum boss to wall thickness ratio} \\ & \small R_{max} - \text{maximal boss to wall thickness ratio} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MaxScrewBossThicknessToWallThicknessRatio(), DFMMolding_AnalyzerParameters.MinScrewBossThicknessToWallThicknessRatio(), Molding_ScrewBoss

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_IrregularWallThicknessScrewBossIssue()

cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.DFMMolding_IrregularWallThicknessScrewBossIssue ( cadex.Molding_ScrewBoss theScrewBoss )

inline

Constructor.

Creates a irregular wall thickness screw boss issue from the Molding_ScrewBoss object.

Member Function Documentation

ActualThickness()

double cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.ActualThickness ( )

inline

Returns the actual thickness in mm .

See also

ScrewBoss()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMaxThickness()

double cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.ExpectedMaxThickness ( )

inline

Returns the expected maximum screw boss thickness.

See also

SetExpectedMaxThickness(), DFMMolding_AnalyzerParameters.MaxScrewBossThicknessToWallThicknessRatio()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMaxThicknessToWallThicknessRatio()

double cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.ExpectedMaxThicknessToWallThicknessRatio ( )

inline

Returns the expected maximum screw boss thickness to wall thickness ratio.

See also

SetExpectedMaxThicknessToWallThicknessRatio(), DFMMolding_AnalyzerParameters.MaxScrewBossThicknessToWallThicknessRatio()

ExpectedMinThickness()

double cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.ExpectedMinThickness ( )

inline

Returns the expected minimum screw boss thickness.

See also

SetExpectedMinThickness(), DFMMolding_AnalyzerParameters.MinScrewBossThicknessToWallThicknessRatio()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMinThicknessToWallThicknessRatio()

double cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.ExpectedMinThicknessToWallThicknessRatio ( )

inline

Returns the expected minimum screw boss thickness to wall thickness ratio.

See also

SetExpectedMinThicknessToWallThicknessRatio(), DFMMolding_AnalyzerParameters.MinScrewBossThicknessToWallThicknessRatio()

SetExpectedMaxThickness()

void cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.SetExpectedMaxThickness ( double theThickness )

inline

Sets the maximum screw boss thickness. theThickness should be greater than zero.

See also

ExpectedMaxThickness()

SetExpectedMaxThicknessToWallThicknessRatio()

void cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.SetExpectedMaxThicknessToWallThicknessRatio ( double theRatio )

inline

Sets the maximum screw boss thickness to wall thickness ratio. theRatio should be in the [0, 1] range.

See also

ExpectedMaxThicknessToWallThicknessRatio()

SetExpectedMinThickness()

void cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.SetExpectedMinThickness ( double theThickness )

inline

Sets the minimum screw boss thickness. theThickness should be greater than zero.

See also

ExpectedMinThickness()

SetExpectedMinThicknessToWallThicknessRatio()

void cadex.DFMMolding_IrregularWallThicknessScrewBossIssue.SetExpectedMinThicknessToWallThicknessRatio ( double theRatio )

inline

Sets the minimum screw boss thickness to wall thickness ratio. theRatio should be in the [0, 1] range.

See also

ExpectedMinThicknessToWallThicknessRatio()
