Describes a screw boss. More...

Inheritance diagram for cadex.Molding_ScrewBoss:

Public Member Functions
	Molding_ScrewBoss (global::System.IntPtr cPtr, bool cMemoryOwn)

	Molding_ScrewBoss ()
	Constructor.

	Molding_ScrewBoss (double theHeight, double theCoreDepth, double theOuterRadius, double theInnerRadius)
	Creates a molding screw boss from height, core depth, outer and inner radii.

double	OuterRadius ()
	Returns a screw boss outer radius in mm.

void	SetOuterRadius (double theOuterRadius)
	Sets outer radius for a screw boss in mm.

double	InnerRadius ()
	Returns a screw boss inner radius in mm.

void	SetInnerRadius (double theInnerRadius)
	Sets inner radius for a screw boss in mm.

double	Thickness ()
	Returns a screw boss thickness in mm.

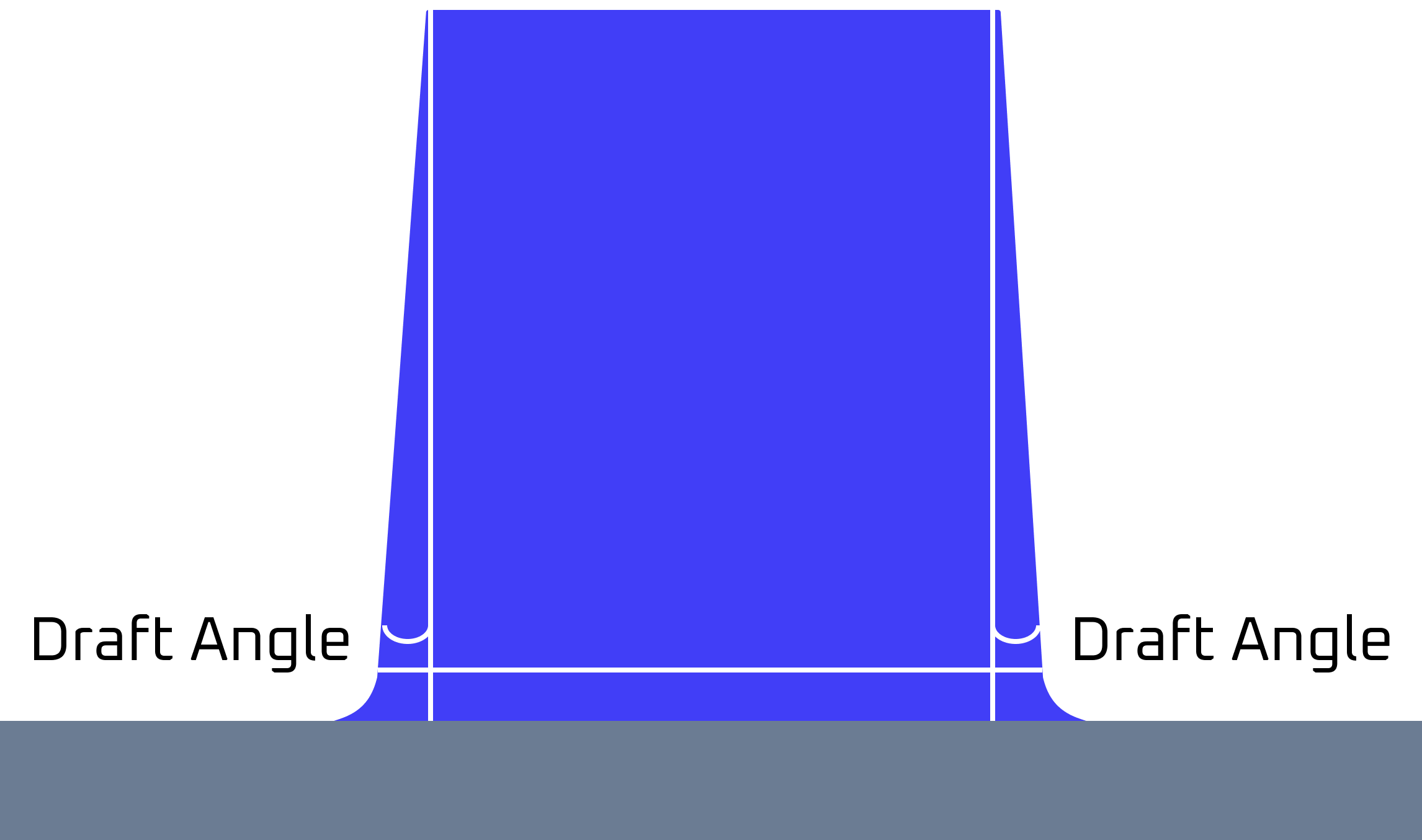

double	DraftAngle ()
	Returns a screw boss draft angle in mm.

void	SetDraftAngle (double theDraftAngle)
	Sets draft angle for a screw boss in mm.

double	CoreDepth ()
	Returns a screw boss core depth in mm.

void	SetCoreDepth (double theCoreDepth)
	Sets core depth for a screw boss in mm.

Public Member Functions inherited from cadex.MTKBase_Boss
	MTKBase_Boss (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_Boss ()
	Constructor.

	MTKBase_Boss (double theWidth, double theLength, double theHeight)
	Creates a Boss from length, width and height.

double	Width ()
	Returns the boss width in mm.

void	SetWidth (double theWidth)
	Sets width for boss in mm.

double	Length ()
	Returns the boss length in mm .

void	SetLength (double theLength)
	Sets length for boss in mm.

double	Height ()
	Returns the boss Height in mm .

void	SetHeight (double theHeight)
	Sets Height for boss in mm.

Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.

cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.

void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a molding Screw Boss.

static new cadex.Molding_ScrewBoss	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_Boss
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a Boss.

static new cadex.MTKBase_Boss	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.

static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.MTKBase_Boss
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.MTKBase_ShapeFeature
override void	Dispose (bool disposing)

Detailed Description

Describes a screw boss.

In injection molding, the Screw Boss is essentially a cylindrical protrusion with a threaded hole that is designed to receive a screw or threaded fastener. This feature serves as a reliable point of attachment for assembling various parts together, such as attaching the plastic part to another component or securing multiple plastic parts together.
The main purpose of the Screw Boss is to provide a durable and convenient method for fastening parts, eliminating the need for additional hardware like nuts or inserts. By integrating the Screw Boss directly into the mold design, it becomes a permanent part of the plastic component, enhancing the overall strength and integrity of the assembly.

Shape() method returns ModelData.Shell for this class.
