Describes screw boss without top chamfer issues found during injection molding design analysis. More...

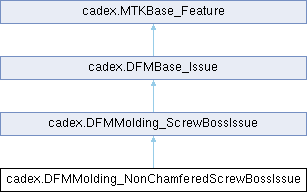

Inheritance diagram for cadex.DFMMolding_NonChamferedScrewBossIssue:

Public Member Functions
	DFMMolding_NonChamferedScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMMolding_NonChamferedScrewBossIssue ()
	Constructor.

	DFMMolding_NonChamferedScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Constructor.

Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.Molding_ScrewBoss	ScrewBoss ()

void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding non chamfered screw boss issue.

static new cadex.DFMMolding_NonChamferedScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.

static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Protected Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
override void	Dispose (bool disposing)

Detailed Description

Describes screw boss without top chamfer issues found during injection molding design analysis.

The non chamfered screw boss issues refer to situation when the screw boss doesn't contain top chamfer. Screw boss top chamfer improves the lead-in for fasteners and facilitate assembly operations. Top chamfer is required to to reduce potential assembly difficulties.

Contains screw boss that has no top chamfer.

See also: DFMMolding_Analyzer, Molding_ScrewBoss

Examples: molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

◆ DFMMolding_NonChamferedScrewBossIssue()

cadex.DFMMolding_NonChamferedScrewBossIssue.DFMMolding_NonChamferedScrewBossIssue ( cadex.Molding_ScrewBoss theScrewBoss )

inline

Constructor.

Creates a non chamfered screw boss issue from the Molding_ScrewBoss object.

Member Function Documentation

◆ Dispose()

override void cadex.DFMMolding_NonChamferedScrewBossIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.
