cadex.DFMMolding_SmallBaseRadiusScrewBossIssue Class Reference

Describes small screw boss base radius issues found during injection molding design analysis. More...

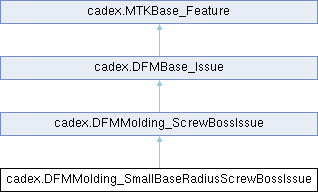

Inheritance diagram for cadex.DFMMolding_SmallBaseRadiusScrewBossIssue:

Public Member Functions
	DFMMolding_SmallBaseRadiusScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_SmallBaseRadiusScrewBossIssue ()
	Constructor.
	DFMMolding_SmallBaseRadiusScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Constructor.
double	ExpectedMinBaseRadiusToWallThicknessRatio ()
void	SetExpectedMinBaseRadiusToWallThicknessRatio (double theRatio)
double	ExpectedMinBaseRadius ()
void	SetExpectedMinBaseRadius (double theRadius)
double	ActualBaseRadius ()
void	SetActualBaseRadius (double theRadius)
Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Molding_ScrewBoss	ScrewBoss ()
void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding small base radius screw boss issue.
static new cadex.DFMMolding_SmallBaseRadiusScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.
static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small screw boss base radius issues found during injection molding design analysis.

The small screw boss base radius issue refers to a situation where the base radius is too small compared to the wall thickness. Proper base radius value is required to mitigate potential stress failures.

Contains screw boss that fails the following condition:

\[ \large \frac{R_b}{T} \geq R \]

\[ \begin{aligned} & \small R_b - \text{analyzed boss base radius} \\ & \small T - \text{wall thickness} \\ & \small R - \text{minimum boss base radius to wall thickness ratio} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MinScrewBossBaseRadiusToWallThicknessRatio(), Molding_ScrewBoss

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_SmallBaseRadiusScrewBossIssue()

cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.DFMMolding_SmallBaseRadiusScrewBossIssue ( cadex.Molding_ScrewBoss theScrewBoss )

inline

Constructor.

Creates a small base radius screw boss issue from the Molding_ScrewBoss object.

Member Function Documentation

ActualBaseRadius()

double cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.ActualBaseRadius ( )

inline

Returns the actual screw boss base radius in radians .

See also

SetActualBaseRadius()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMolding_ScrewBossIssue.

ExpectedMinBaseRadius()

double cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.ExpectedMinBaseRadius ( )

inline

Returns the expected minimum base radius in mm .

See also

SetExpectedMinBaseRadius(), DFMMolding_AnalyzerParameters.MinScrewBossBaseRadiusToWallThicknessRatio()

Examples

molding/dfm_analyzer/Program.cs.

ExpectedMinBaseRadiusToWallThicknessRatio()

double cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.ExpectedMinBaseRadiusToWallThicknessRatio ( )

inline

Returns the expected minimum base radius to wall thickness ratio.

See also

SetExpectedMinBaseRadiusToWallThicknessRatio(), DFMMolding_AnalyzerParameters.MinScrewBossBaseRadiusToWallThicknessRatio()

SetActualBaseRadius()

void cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.SetActualBaseRadius ( double theRadius )

inline

Sets the actual screw boss base radius. theRadius should be greater than or equal to zero.

See also

ActualBaseRadius()

SetExpectedMinBaseRadius()

void cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.SetExpectedMinBaseRadius ( double theRadius )

inline

Sets the expected minimum screw boss base radius. theRadius should be greater than or equal to zero.

See also

ExpectedMinBaseRadius()

SetExpectedMinBaseRadiusToWallThicknessRatio()

void cadex.DFMMolding_SmallBaseRadiusScrewBossIssue.SetExpectedMinBaseRadiusToWallThicknessRatio ( double theRatio )

inline

Sets the expected minimum small base radius to wall thickness ratio. theRatio should be in the [0, 1] range.

See also

ExpectedMinBaseRadiusToWallThicknessRatio()
