cadex.DFMMolding_SmallDraftAngleScrewBossIssue Class Reference

Describes small screw boss draft angle issues found during injection molding design analysis. More...

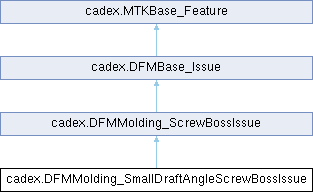

Inheritance diagram for cadex.DFMMolding_SmallDraftAngleScrewBossIssue:

Public Member Functions
	DFMMolding_SmallDraftAngleScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMolding_SmallDraftAngleScrewBossIssue ()
	Constructor.
	DFMMolding_SmallDraftAngleScrewBossIssue (cadex.Molding_ScrewBoss theScrewBoss)
	Constructor.
double	ExpectedMinDraftAngle ()
void	SetExpectedMinDraftAngle (double theAngle)
double	ActualDraftAngle ()
Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
	DFMMolding_ScrewBossIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.Molding_ScrewBoss	ScrewBoss ()
void	SetScrewBoss (cadex.Molding_ScrewBoss theScrewBoss)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding small draft angle screw boss issue.
static new cadex.DFMMolding_SmallDraftAngleScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMolding_ScrewBossIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM molding screw boss issue.
static new cadex.DFMMolding_ScrewBossIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small screw boss draft angle issues found during injection molding design analysis.

The small screw boss draft angle issue is similar to the small rib draft angle issue. Proper draft angles are crucial for smooth part ejection in molding. This is essential to prevent production challenges and optimize product quality.

Contains screw boss that fails the following condition:

\[ \large A \geq Min A \]

\[ \begin{aligned} & \small A - \text{analyzed screw boss draft angle} \\ & \small Min A - \text{minimum screw boss draft angle} \\ \end{aligned} \]

See also

DFMMolding_Analyzer, DFMMolding_AnalyzerParameters.MinScrewBossDraftAngle(), Molding_ScrewBoss

Examples

molding/dfm_analyzer/Program.cs, and molding/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMMolding_SmallDraftAngleScrewBossIssue()

cadex.DFMMolding_SmallDraftAngleScrewBossIssue.DFMMolding_SmallDraftAngleScrewBossIssue ( cadex.Molding_ScrewBoss theScrewBoss )

inline

Constructor.

Creates a small draft angle ScrewBoss issue from the Molding_ScrewBoss object.

Member Function Documentation

ActualDraftAngle()

double cadex.DFMMolding_SmallDraftAngleScrewBossIssue.ActualDraftAngle ( )

inline

Returns the actual screw boss draft angle in radians .

See also

ScrewBoss()

Examples

molding/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMolding_SmallDraftAngleScrewBossIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMolding_ScrewBossIssue.

ExpectedMinDraftAngle()

double cadex.DFMMolding_SmallDraftAngleScrewBossIssue.ExpectedMinDraftAngle ( )

inline

Returns the expected minimum draft angle in radians .

See also

SetExpectedMinDraftAngle(), DFMMolding_AnalyzerParameters.MinScrewBossDraftAngle()

Examples

molding/dfm_analyzer/Program.cs.

SetExpectedMinDraftAngle()

void cadex.DFMMolding_SmallDraftAngleScrewBossIssue.SetExpectedMinDraftAngle ( double theAngle )

inline

Sets the expected minimum draft angle. theAngle should be greater than or equal to zero.

See also

ExpectedMinDraftAngle()
