cadex.DFMSheetMetal_HoleIssue Class Reference

Describes a base class for hole issues found during sheet metal design analysis. More...

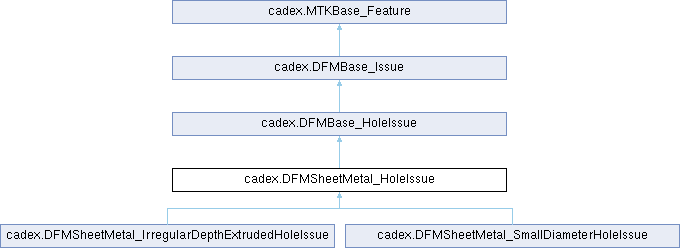

Inheritance diagram for cadex.DFMSheetMetal_HoleIssue:

Public Member Functions
	DFMSheetMetal_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.SheetMetal_Hole	SheetMetalHole ()
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm. theThickness should be greater than zero.
Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.MTKBase_Hole	Hole ()
void	SetHole (cadex.MTKBase_Hole theHole)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal hole issue.
static new cadex.DFMSheetMetal_HoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.
static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a base class for hole issues found during sheet metal design analysis.

Contains problematic hole that can be received by Hole() or SheetMetalHole() methods.

See also

DFMSheetMetal_Analyzer

Member Function Documentation

Dispose()

override void cadex.DFMSheetMetal_HoleIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_HoleIssue.

SheetMetalHole()

cadex.SheetMetal_Hole cadex.DFMSheetMetal_HoleIssue.SheetMetalHole ( )

inline

Returns the problematic sheet metal hole.

See also

Hole(), SetHole()
