cadex.SheetMetal_Hole Class Reference

Describes a circle hole drilled or punched in sheet metal. More...

Inheritance diagram for cadex.SheetMetal_Hole:

Public Member Functions
	SheetMetal_Hole (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Hole ()
	Constructor.
	SheetMetal_Hole (double theRadius, double theDepth)
	Creates a sheet metal hole from radius.
	SheetMetal_Hole (double theRadius, double theDepth, cadex.Geom.Axis3d theAxis)
	Creates a sheet metal hole from radius and axis.
Public Member Functions inherited from cadex.MTKBase_Hole
	MTKBase_Hole (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_Hole ()
	Constructor.
	MTKBase_Hole (double theRadius, double theDepth)
	Creates a hole feature from radius and depth.
	MTKBase_Hole (double theRadius, double theDepth, cadex.Geom.Axis3d theAxis)
	Creates a hole feature from radius, depth and axis.
double	Radius ()
	Returns hole radius in mm .
void	SetRadius (double theRadius)
	Sets radius for hole in mm .
double	Depth ()
	Returns hole depth in mm .
void	SetDepth (double theDepth)
	Sets depth for hole in mm .
bool	HasAxis ()
	Returns true if axis is determined for hole.
cadex.Geom.Axis3d	Axis ()
	Returns hole axis.
void	SetAxis (cadex.Geom.Axis3d theAxis)
	Sets axis for hole.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a sheet metal hole.
static new cadex.SheetMetal_Hole	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_Hole
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a hole.
static new cadex.MTKBase_Hole	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a circle hole drilled or punched in sheet metal.

Shape() method returns ModelData.Wire for this class.

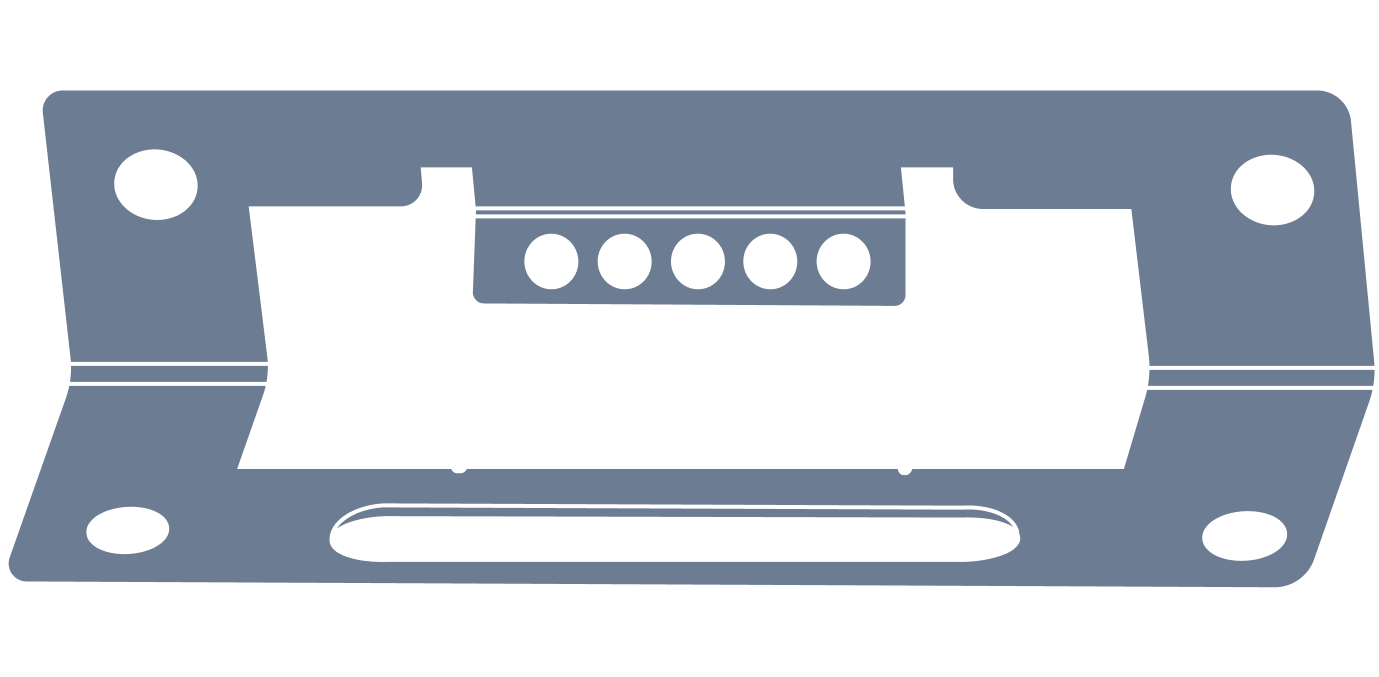

Holes

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Hole() [1/3]

cadex.SheetMetal_Hole.SheetMetal_Hole ( )

inline

Constructor.

SheetMetal_Hole() [2/3]

cadex.SheetMetal_Hole.SheetMetal_Hole ( double theRadius, double theDepth )

inline

Creates a sheet metal hole from radius.

Constructor.

SheetMetal_Hole() [3/3]

cadex.SheetMetal_Hole.SheetMetal_Hole ( double theRadius, double theDepth, cadex.Geom.Axis3d theAxis )

inline

Creates a sheet metal hole from radius and axis.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Hole.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a sheet metal hole.

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Hole.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_Hole.
