cadex.DFMSheetMetal_SmallDepthLouverIssue Class Reference

Describes small depth louver issue found during sheet metal design analysis. More...

Inheritance diagram for cadex.DFMSheetMetal_SmallDepthLouverIssue:

Public Member Functions
	DFMSheetMetal_SmallDepthLouverIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_SmallDepthLouverIssue ()
	Constructor.
	DFMSheetMetal_SmallDepthLouverIssue (cadex.SheetMetal_Louver theLouver)
	Creates a large depth louver from SheetMetal_Louver object.
cadex.SheetMetal_Louver	Louver ()
	Returns the problematic louver.
void	SetLouver (cadex.SheetMetal_Louver theLouver)
	Sets the problematic louver.
double	ExpectedMinDepthToSheetThicknessRatio ()
	Returns the expected minimum louver depth.
void	SetExpectedMinDepthToSheetThicknessRatio (double theRatio)
	Sets the expected minimum louver depth.
double	ExpectedMinDepth ()
	Return expected minimum louver depth in mm .
double	ActualDepth ()
	Return actual louver depth in mm .
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm .
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small depth louver issue.
static new cadex.DFMSheetMetal_SmallDepthLouverIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small depth louver issue found during sheet metal design analysis.

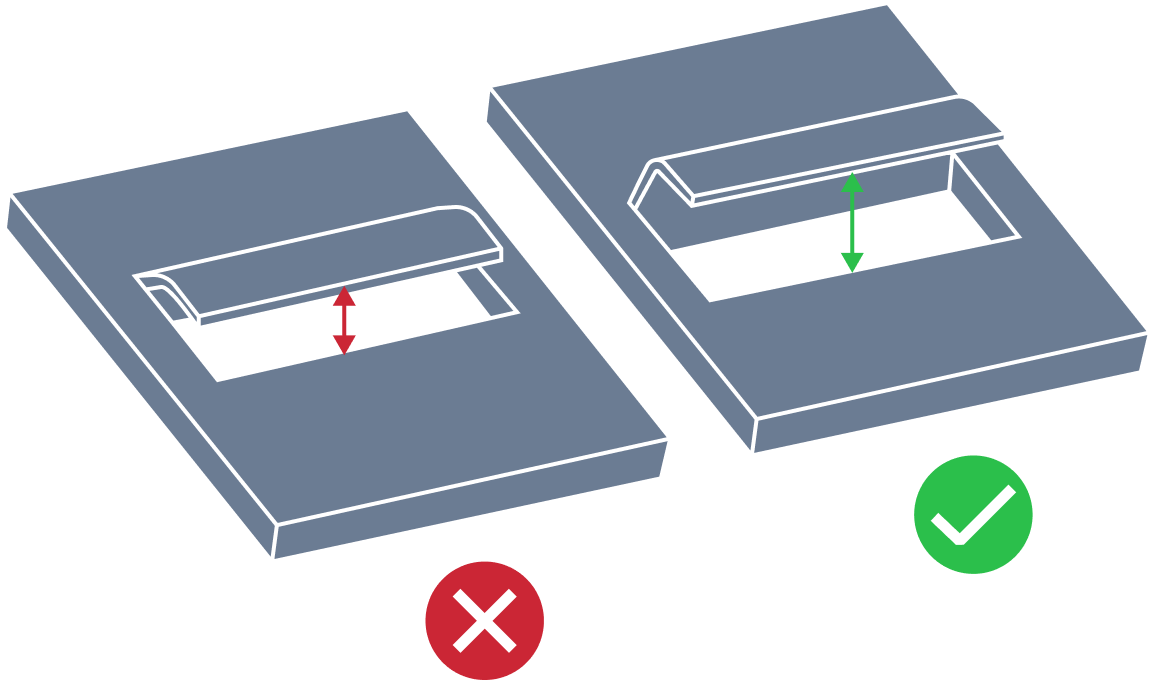

Small depth of louvers in sheet metal can lead to limited airflow, reduced strength, clogging or blockage, and increased noise transmission. These factors can impact the effectiveness and efficiency of ventilation systems and the overall durability of the sheet metal structure.

Contains louver that fails the following condition:

\[ \large D_l \geq T \times Rt \]

\[ \begin{aligned} & \small D_l - \text{louver depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected minimum louver depth to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinLouverDepthToSheetThicknessRatio(), SheetMetal_Louver

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_SmallDepthLouverIssue() [1/2]

cadex.DFMSheetMetal_SmallDepthLouverIssue.DFMSheetMetal_SmallDepthLouverIssue ( )

inline

Constructor.

DFMSheetMetal_SmallDepthLouverIssue() [2/2]

cadex.DFMSheetMetal_SmallDepthLouverIssue.DFMSheetMetal_SmallDepthLouverIssue ( cadex.SheetMetal_Louver theLouver )

inline

Creates a large depth louver from SheetMetal_Louver object.

Constructor.

Member Function Documentation

ActualDepth()

double cadex.DFMSheetMetal_SmallDepthLouverIssue.ActualDepth ( )

inline

Return actual louver depth in mm .

See also

Louver()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ActualSheetThickness()

double cadex.DFMSheetMetal_SmallDepthLouverIssue.ActualSheetThickness ( )

inline

Returns the actual sheet thickness of analyzed part in mm .

See also

SetActualSheetThickness()

CompareType()

static new bool cadex.DFMSheetMetal_SmallDepthLouverIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a small depth louver issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_SmallDepthLouverIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMBase_Issue.

ExpectedMinDepth()

double cadex.DFMSheetMetal_SmallDepthLouverIssue.ExpectedMinDepth ( )

inline

Return expected minimum louver depth in mm .

\[ \large D_e = T \times Rt \]

\[ \begin{aligned} & \small D_e - \text{expected minimum louver depth} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected minimum louver depth to sheet thickness ratio} \end{aligned} \]

See also

ExpectedMaxDepthToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedMinDepthToSheetThicknessRatio()

double cadex.DFMSheetMetal_SmallDepthLouverIssue.ExpectedMinDepthToSheetThicknessRatio ( )

inline

Returns the expected minimum louver depth.

See also

SetExpectedMinDepthToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.MinLouverDepthToSheetThicknessRatio()

Louver()

cadex.SheetMetal_Louver cadex.DFMSheetMetal_SmallDepthLouverIssue.Louver ( )

inline

Returns the problematic louver.

See also

SetLouver()

SetActualSheetThickness()

void cadex.DFMSheetMetal_SmallDepthLouverIssue.SetActualSheetThickness ( double theThickness )

inline

Sets the actual sheet thickness in mm .

theThickness should be greater than zero.

See also

ActualSheetThickness()

SetExpectedMinDepthToSheetThicknessRatio()

void cadex.DFMSheetMetal_SmallDepthLouverIssue.SetExpectedMinDepthToSheetThicknessRatio ( double theRatio )

inline

Sets the expected minimum louver depth.

theRatio should be greater than zero.

See also

ExpectedMaxDepthToSheetThicknessRatio()

SetLouver()

void cadex.DFMSheetMetal_SmallDepthLouverIssue.SetLouver ( cadex.SheetMetal_Louver theLouver )

inline

Sets the problematic louver.

See also

Louver()
