cadex.SheetMetal_Analyzer Class Reference

Provides an interface to run several analyzer tools. More...

Inherits global.SystemIDisposable.

Public Member Functions
	SheetMetal_Analyzer (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	SheetMetal_Analyzer ()
	Constructor. Creates a machining analyzer with zero tools.
cadex.SheetMetal_Data	Perform (cadex.ModelData.Solid theSolid, cadex.ProgressStatus theProgressStatus)
	Runs analyzing process.
cadex.SheetMetal_Data	Perform (cadex.ModelData.Solid theSolid)
cadex.SheetMetal_Data	Perform (cadex.ModelData.Solid theSolid, double theThickness, cadex.ProgressStatus theProgressStatus)
	Runs analyzing process.
cadex.SheetMetal_Data	Perform (cadex.ModelData.Solid theSolid, double theThickness)
cadex.SheetMetal_Data	Perform (cadex.ModelData.Shell theShell, cadex.ProgressStatus theProgressStatus)
	Runs analyzing process.
cadex.SheetMetal_Data	Perform (cadex.ModelData.Shell theShell)
void	Perform (cadex.SheetMetal_Data theData, cadex.ProgressStatus theProgressStatus)
	Runs analyzing process. Updates existing sheet metal data. Nothing happens if data is empty.
void	Perform (cadex.SheetMetal_Data theData)
void	AddTool (cadex.SheetMetal_AnalyzerTool theTool)
	Adds additional tool to run during analyzing process.

Protected Member Functions
virtual void	Dispose (bool disposing)

Detailed Description

Provides an interface to run several analyzer tools.

Running analyzer with zero tools added will start the shape analysis process that fill SheetMetal_Data with minimum information needed to run SheetMetal_Unfolder and SheetMetal_FeatureRecognizer with it.

SheetMetal_Unfolder and SheetMetal_FeatureRecognizer tools use same shape analysis process underhood if you pass ModelData.Shell or ModelData.Solid; they can also work with already analyzed models represented as SheetMetal_Data. Thus, if you want to use both SheetMetal_FeatureRecognizer and SheetMetal_Unfolder simultaneously, it's possible to reduce the time of analysis by using SheetMetal_Analyzer (in this case the model will be analyzed once). The resulting SheetMetal_Data could be passed into tools.

If the model is not sheet metal model than the empty SheetMetal_Data is returned. The model may be represent as a ModelData.Shell or a ModelData.Solid.

Shell shape

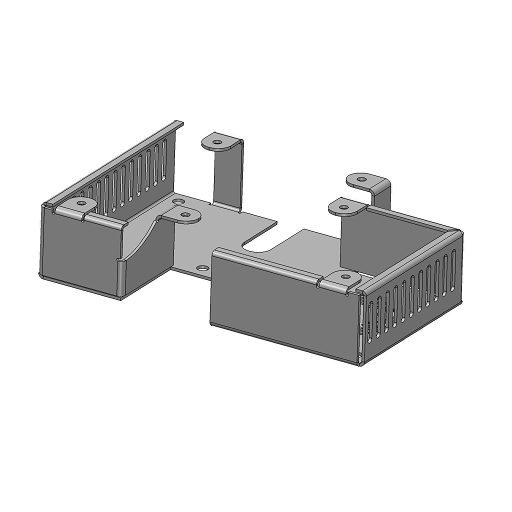

Solid shape

Examples

MTKConverter/Program.cs, and MTKConverter/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Analyzer()

cadex.SheetMetal_Analyzer.SheetMetal_Analyzer ( )

inline

Constructor. Creates a machining analyzer with zero tools.

Exceptions

     LicenseManager_LicenseError if no Sheet metal license was activated.

Member Function Documentation

AddTool()

void cadex.SheetMetal_Analyzer.AddTool ( cadex.SheetMetal_AnalyzerTool theTool )

inline

Adds additional tool to run during analyzing process.

Adding several tools with same type increase the analyzing time but won't provide additional opportunity.

Perform()

void cadex.SheetMetal_Analyzer.Perform ( cadex.SheetMetal_Data theData, cadex.ProgressStatus theProgressStatus )

inline

Runs analyzing process. Updates existing sheet metal data. Nothing happens if data is empty.

See also

SheetMetal_Data
