cadex.ModelData.Solid Class Reference

Defines a topological solid. More...

Inheritance diagram for cadex.ModelData.Solid:

Public Member Functions
	Solid (global::System.IntPtr cPtr, bool cMemoryOwn)
	Solid (cadex.ModelData.Shell theShell)
	Constructor.
bool	Append (cadex.ModelData.Shell theShell)
	There must be single outer (external) shell and zero, one or more inner shells (i.e.
bool	Append (cadex.Collections.ShellList theShells)
	There must be single outer (external) shell and zero, one or more inner shells (i.e.
Public Member Functions inherited from cadex.ModelData.Shape
	Shape (global::System.IntPtr cPtr, bool cMemoryOwn)
override int	GetHashCode ()
cadex.ModelData.ShapeType	Type ()
	Returns a shape type. For a null object returns Undefined.
cadex.ModelData.ShapeOrientation	Orientation ()
	Returns orientation flag.
cadex.ModelData.Shape	Reversed ()
	Returns a shape that shares the same geometry and subshape graph but has opposite orientation.
cadex.ModelData.Shape	Oriented (cadex.ModelData.ShapeOrientation theOrientation)
	Returns a shape that shares the same geometry and subshape graph and has specified orientation.
bool	IsEqual (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph, and has equal orientation.
bool	IsSame (cadex.ModelData.Shape theOther)
	Returns true if the shape shares the same geometry and subshape graph.
void	SetName (cadex.UTF16String theName)
	Sets the name.
cadex.UTF16String	Name ()
	Returns the name.
void	AddAssociatedPMI (cadex.PMI.Element theElement)
	Adds the PMI element.
void	AddAssociatedPMI (cadex.Collections.PMIElementList theElements)
	Adds the PMI elements.
cadex.Collections.PMIElementList	AssociatedPMI ()
	Returns the PMI elements.
override bool	Equals (System.Object o)
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static cadex.ModelData.Solid	Cast (cadex.ModelData.Shape theShape)
static new bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
Static Public Member Functions inherited from cadex.ModelData.Shape
static bool	CompareType (cadex.BaseObject theObject)
	Check the type of object. Returns true if the specified object is this class type.
static cadex.ModelData.Shape	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Defines a topological solid.

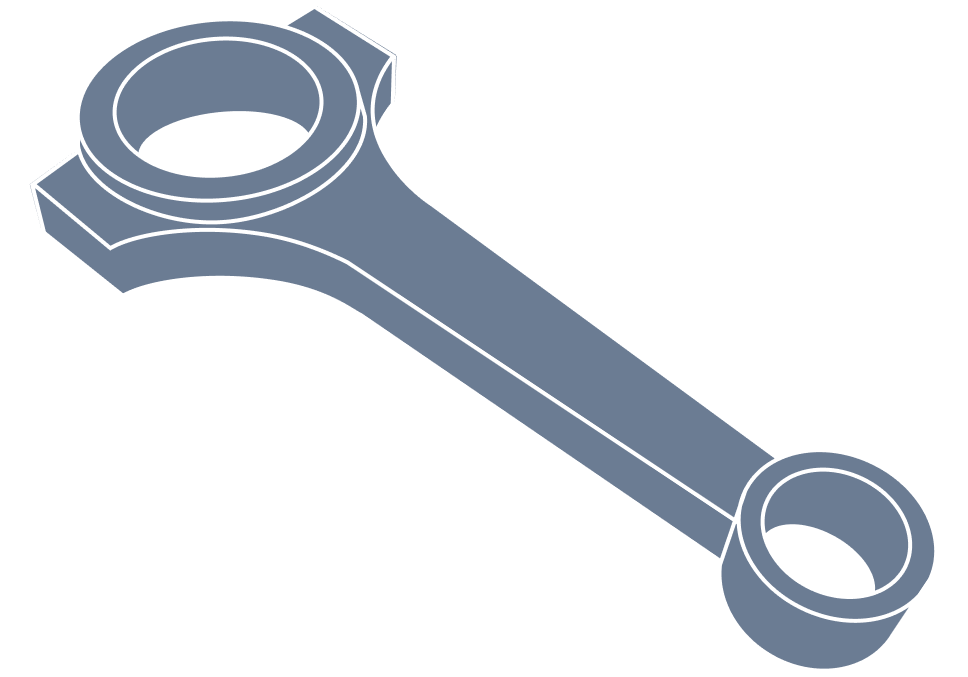

The following image depicts an example of a solid:

Solid

As a rule, a solid has a single external shell. Solids with voids (i.e. multiple shells) are also supported.

Shells must be oriented so that the solid corresponds to a finite volume in 3D space.

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, helpers/shape_processor.cs, helpers/shape_processor.hxx, machining/dfm_analyzer/Program.cs, machining/dfm_analyzer/main.cxx, machining/feature_recognizer/Program.cs, machining/feature_recognizer/main.cxx, molding/dfm_analyzer/Program.cs, molding/dfm_analyzer/main.cxx, molding/feature_recognizer/Program.cs, molding/feature_recognizer/main.cxx, sheet_metal/dfm_analyzer/Program.cs, sheet_metal/dfm_analyzer/main.cxx, sheet_metal/feature_recognizer/Program.cs, sheet_metal/feature_recognizer/main.cxx, sheet_metal/unfolder/Program.cs, sheet_metal/unfolder/main.cxx, wall_thickness/analyzer/Program.cs, and wall_thickness/analyzer/main.cxx.

Constructor & Destructor Documentation

Solid()

cadex.ModelData.Solid.Solid ( cadex.ModelData.Shell theShell )

inline

Constructor.

Member Function Documentation

Append() [1/2]

bool cadex.ModelData.Solid.Append ( cadex.Collections.ShellList theShells )

inline

There must be single outer (external) shell and zero, one or more inner shells (i.e.

voids). It is strongly recommended (although not required) that the first shell being added is an outer shell. Solids with voids may have limited support in CAD Exchanger and other systems.

Returns false if one of theShells is null and true otherwise. Adds a shells to the solid.

Append() [2/2]

bool cadex.ModelData.Solid.Append ( cadex.ModelData.Shell theShell )

inline

There must be single outer (external) shell and zero, one or more inner shells (i.e.

voids). It is strongly recommended (although not required) that the first shell being added is an outer shell. Solids with voids may have limited support in CAD Exchanger and other systems.

Returns false if theShell is null and true otherwise. Adds a shell to the solid.

CompareType()

static new bool cadex.ModelData.Solid.CompareType ( cadex.BaseObject theObject )

inlinestatic

Check the type of object. Returns true if the specified object is this class type.

Dispose()

override void cadex.ModelData.Solid.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.ModelData.Shape.
