cadex.SheetMetal_Bead Class Reference

Describes a sheet metal bead. More...

Inheritance diagram for cadex.SheetMetal_Bead:

Public Member Functions
	SheetMetal_Bead (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Bead ()
	Constructor.
	SheetMetal_Bead (double theDepth)
	Creates bead with specified depth.
double	Depth ()
	Returns the bead depth in mm .
void	SetDepth (double theDepth)
	Sets bead depth in mm.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a bead.
static new cadex.SheetMetal_Bead	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal bead.

Beads are recesses in sheet metal. They can be produced with punching machine. Line-shaped beads are used to make sheet metal surfaces more rugged and durable.

Shape() method returns ModelData.Shell for this class.

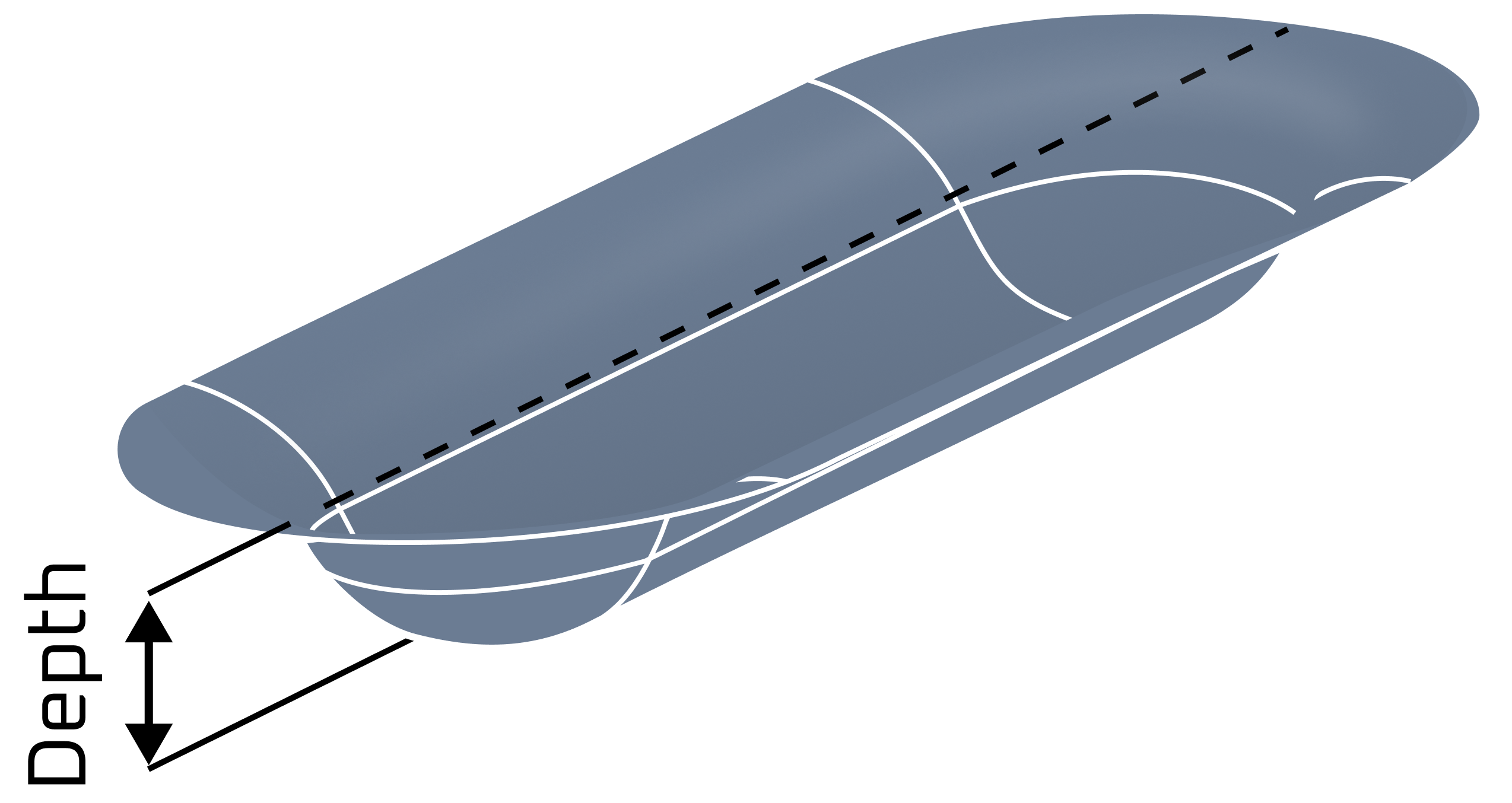

Bead

Beads have the following basic parameter: depth in mm.

Bead parameter

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Bead() [1/2]

cadex.SheetMetal_Bead.SheetMetal_Bead ( )

inline

Constructor.

SheetMetal_Bead() [2/2]

cadex.SheetMetal_Bead.SheetMetal_Bead ( double theDepth )

inline

Creates bead with specified depth.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Bead.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a bead.

Examples

sheet_metal/feature_recognizer/Program.cs.

Depth()

double cadex.SheetMetal_Bead.Depth ( )

inline

Returns the bead depth in mm .

See also

Depth()

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Bead.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

SetDepth()

void cadex.SheetMetal_Bead.SetDepth ( double theDepth )

inline

Sets bead depth in mm.

The value must be more than zero, otherwise nothing happens.

See also

Depth()
